ST180-CTPSM (1989)

Toyota Carina Ed

Production Sep 1989 - Aug 1990
Engine 4SFI
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

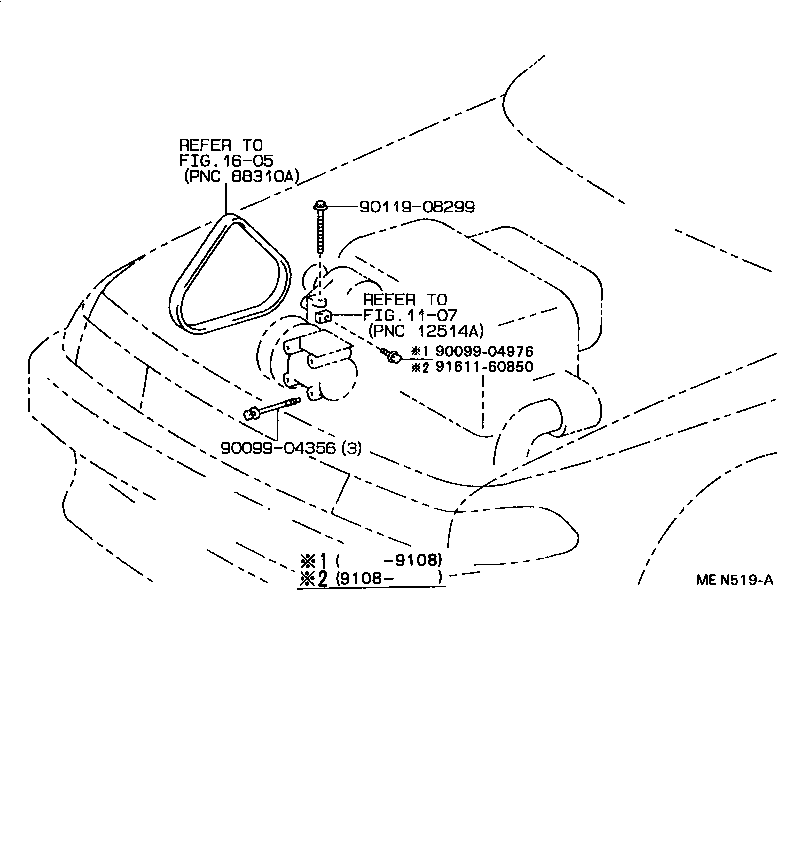

ILLUST NO. 1 OF 2(8909- )CI,EFI

Click highlighted areas on diagram

diagram 1107 1605 9009904356 9009904976 9011908299 9161160850
Part # Description Qty Price
Common parts
90099-04356
90099-04976
90119-08299
91611-60850
Linked diagrams
1107
1605

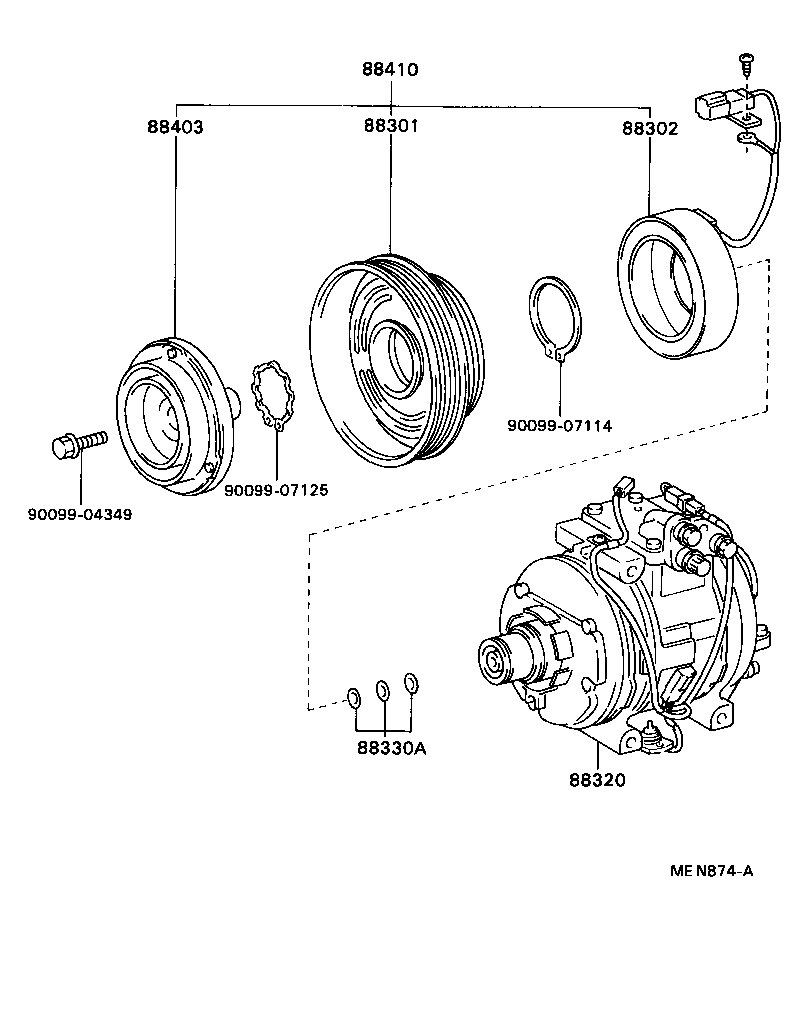

ILLUST NO. 2 OF 2(8909- )

Click highlighted areas on diagram

diagram 88301 88302 88320 88330A 88403 88410 9009904349 9009907114 9009907125
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-20090

ST18#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-20240

ST18#

 1
88320 - COMPRESSOR ASSY, COOLER
88320-20740

ST180,181..F,S

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

ST18#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011

ST18#

 1
88410 - CLUTCH ASSY, MAGNET
88410-20500

ST18#

 1
Common parts
90099-04349
90099-07114
90099-07125
