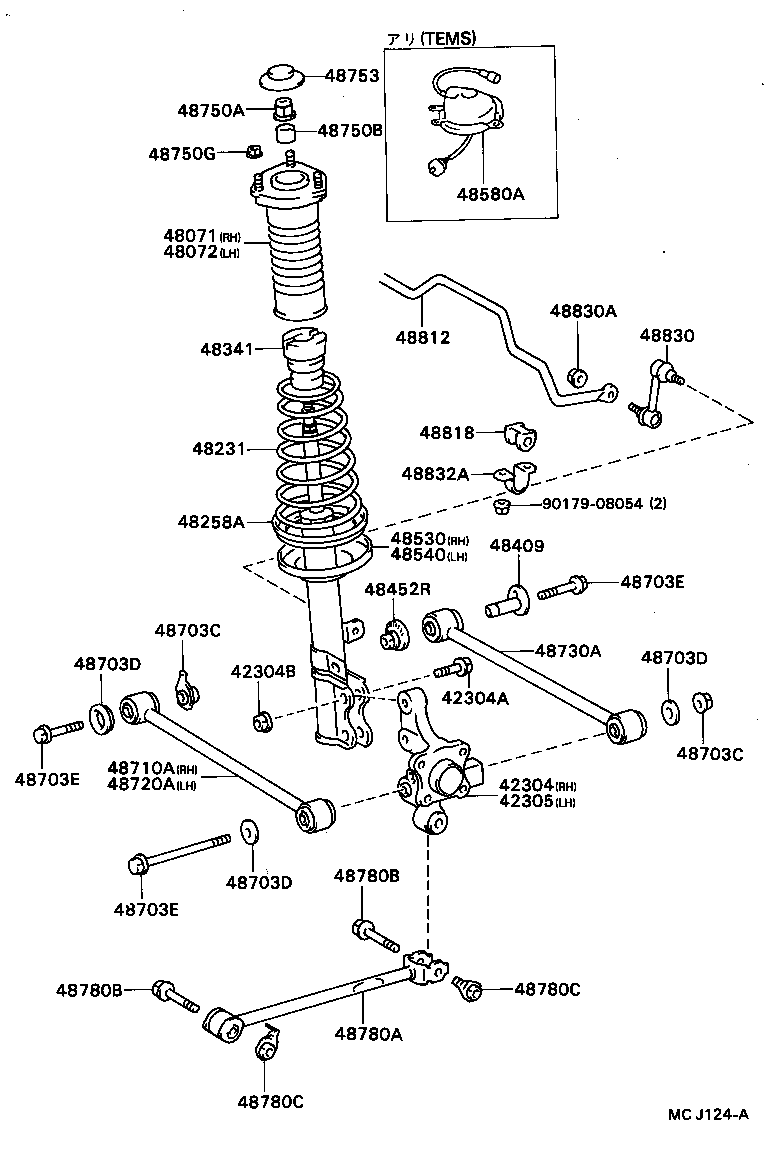

Toyota Carina ed ST180 REAR SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-20060	ST180	09/1989 - 09/1993	1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-15001	ST18#	09/1989 - 09/1993	2
42304B - NUT (FOR REAR AXLE CARRIER)
90179-15001	ST18#	09/1989 - 09/1993	2
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-20060	ST180	09/1989 - 09/1993	1
48071 - SUPPORT SUB-ASSY, REAR SUSPENSION, RH
48071-20080	ST18#	09/1989 - 09/1993	1
48072 - SUPPORT SUB-ASSY, REAR SUSPENSION, LH
48072-20020	ST18#	09/1989 - 09/1993	1
48231 - SPRING, COIL, REAR
48231-2B470	ST180	09/1989 - 09/1993	2
48258A - INSULATOR, REAR COIL SPRING, LOWER
48258-32010	ST18#	09/1989 - 09/1993	1
48341 - BUMPER, REAR SPRING
48341-20170	ST18#	09/1989 - 09/1993	1
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-20040	ST180,182	09/1989 - 09/1993	2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32020	ST180,182	09/1989 - 09/1993	2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-20510	ST180,181,182	09/1989 - 08/1991	1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-20510	ST180,181,182	09/1989 - 08/1991	1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019	ST180,182 CARRIER SIDE	09/1989 - 09/1993	2
90179-12063	ST180,182 BODY SIDE	09/1989 - 09/1993	2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-14019	ST180,182 CARRIER SIDE	09/1989 - 09/1993	2
90179-12063	ST180,182 BODY SIDE	09/1989 - 09/1993	2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017	ST180,182	09/1989 - 09/1990	4
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017	ST180,182	09/1989 - 09/1990	4
48703D - WASHER(FOR REAR SUSPENSION ARM)
90201-14017	ST180,182	09/1989 - 09/1990	4
48703E - BOLT(FOR REAR SUSPENSION ARM)
90109-12051	ST180,182 *12−1.25PX71.5−24	09/1989 - 09/1993	2
90105-14068	ST180,182 *14−1.5PX258−19	09/1989 - 09/1990	2
90105-12132	ST180,182 *12−1.25PX80−20	09/1989 - 09/1993	2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90109-12051	ST180,182 *12−1.25PX71.5−24	09/1989 - 09/1993	2
90105-14068	ST180,182 *14−1.5PX258−19	09/1989 - 09/1990	2
90105-12132	ST180,182 *12−1.25PX80−20	09/1989 - 09/1993	2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90109-12051	ST180,182 *12−1.25PX71.5−24	09/1989 - 09/1993	2
90105-14068	ST180,182 *14−1.5PX258−19	09/1989 - 09/1990	2
90105-12132	ST180,182 *12−1.25PX80−20	09/1989 - 09/1993	2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-20110	ST180	09/1989 - 08/1991	1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-20110	ST180	09/1989 - 08/1991	1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-20090	ST180	09/1989 - 08/1991	2
48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90179-14015	ST18#	09/1989 - 09/1993	1
48750B - COLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
90387-15012	ST18#	09/1989 - 09/1993	1
48750G - NUT(FOR REAR SUSPENSION SUPPORT)
90179-08122	ST18#	09/1989 - 09/1993	6
48753 - COVER, REAR SUSPENSION SUPPORT
48753-12010	ST18#	09/1989 - 09/1993	2
48780A - ROD ASSY, STRUT, REAR
48780-20020	ST180,182	09/1989 - 09/1993	2
48780B - BOLT(FOR STRUT ROD)
90119-12131	ST180,182	09/1989 - 09/1993	4
48780B - BOLT(FOR STRUT ROD)
90119-12131	ST180,182	09/1989 - 09/1993	4
48780C - NUT(FOR STRUT ROD)
90179-12062	ST180,182 CARRIER SIDE	09/1989 - 09/1993	2
90179-12065	ST18# BODY SIDE	09/1989 - 09/1993	2
48780C - NUT(FOR STRUT ROD)
90179-12062	ST180,182 CARRIER SIDE	09/1989 - 09/1993	2
90179-12065	ST18# BODY SIDE	09/1989 - 09/1993	2
48812 - BAR, STABILIZER, REAR
48812-20420	ST180	09/1989 - 08/1991	1
48818 - BUSH, STABILIZER, REAR
48818-20190	ST180	09/1989 - 08/1991	2
48830 - LINK ASSY, REAR STABILIZER
48830-20010	ST18#	09/1989 - 09/1993	2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054	ST18#	09/1989 - 09/1993	4
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-20070	ST18#	09/1989 - 09/1993	2
Common parts
90179-08054

ST180-CTPSM (1989)

(8909- )ST180,182
