ST180-CTPGK (1990)
Toyota Carina Ed

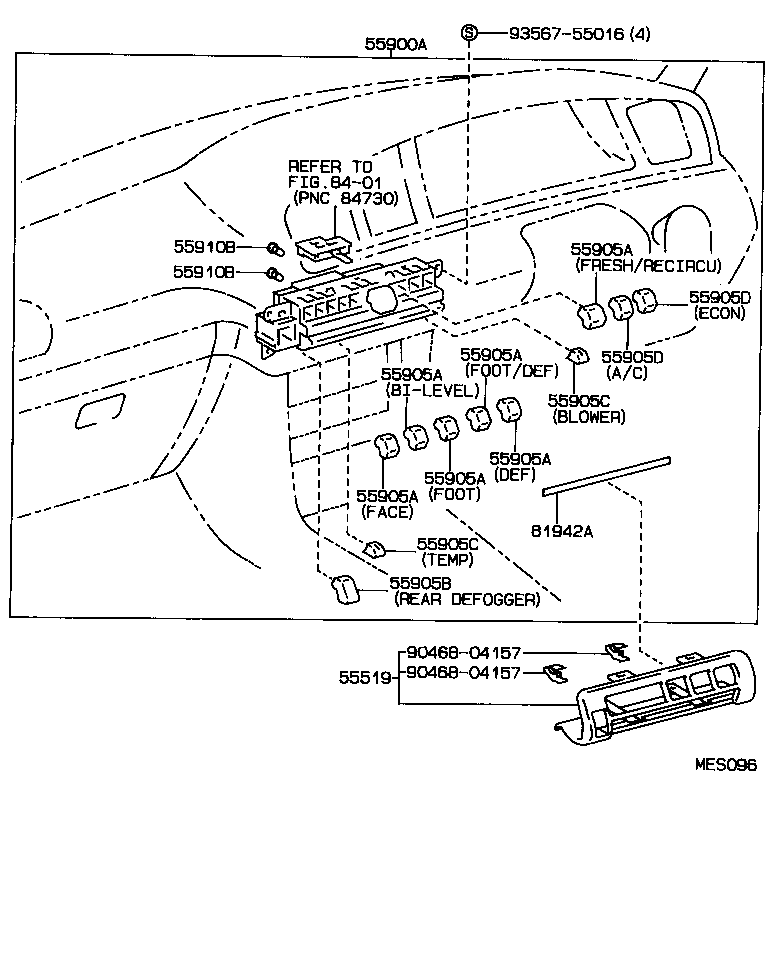

ILLUST NO. 1 OF 3(8909-9108)F,S
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-2024003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55519-2024006 |
ST18# SABLE,TRIM4# |
1 | ||
| 55519-2024007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55519-20310 |
ST18# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 55900-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55900-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 55900-20880 |
ST18#..GLIM,SLIM,X |
1 | ||
| 55900-20890 |
ST180,181..F,S |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-20090 |
ST180,181..F,S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2075007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,REAR DEFOGGER |
1 | ||
| 55905-20850 |
ST18# REAR DEFOGGER |
1 | ||
| 55905-2075003 |
ST18# SHADOW GRAY,TRIM1#,REAR DEFOGGER |
1 | ||
| 55905-2075006 |
ST18# SABLE,TRIM4#,REAR DEFOGGER |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-20260 |
ST180,181..F,S |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-20120 |
ST180,181..F,S |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-2058003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 55910-2058006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-20140 |
ST180,181..F,S |
1 | ||
| 88032-20140 |
ST180,181..F,S |
1 | ||
| Common parts | ||||
| 55933-17010 | ||||
| 90468-04147 | ||||
| 93510-13010 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

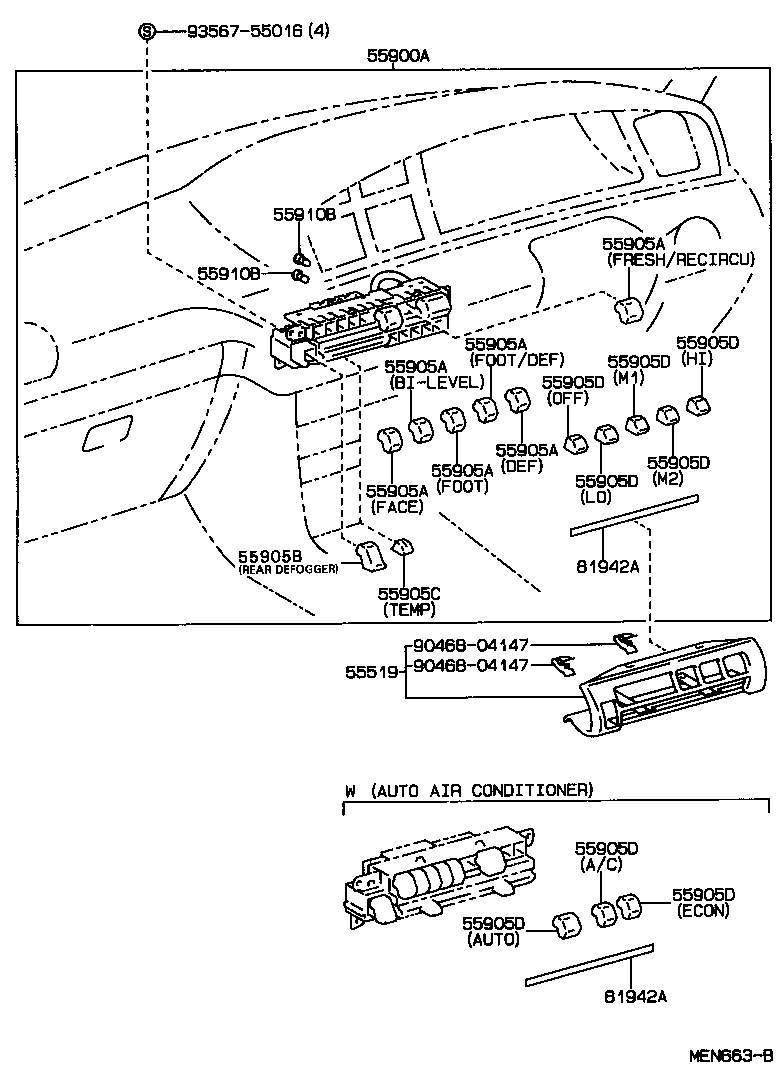

ILLUST NO. 1 OF 3(8909-9108)GLIM,SLIM,X
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-2024003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55519-2024006 |
ST18# SABLE,TRIM4# |
1 | ||
| 55519-2024007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55519-20310 |
ST18# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 55900-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55900-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 55900-20880 |
ST18#..GLIM,SLIM,X |
1 | ||
| 55900-20890 |
ST180,181..F,S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||

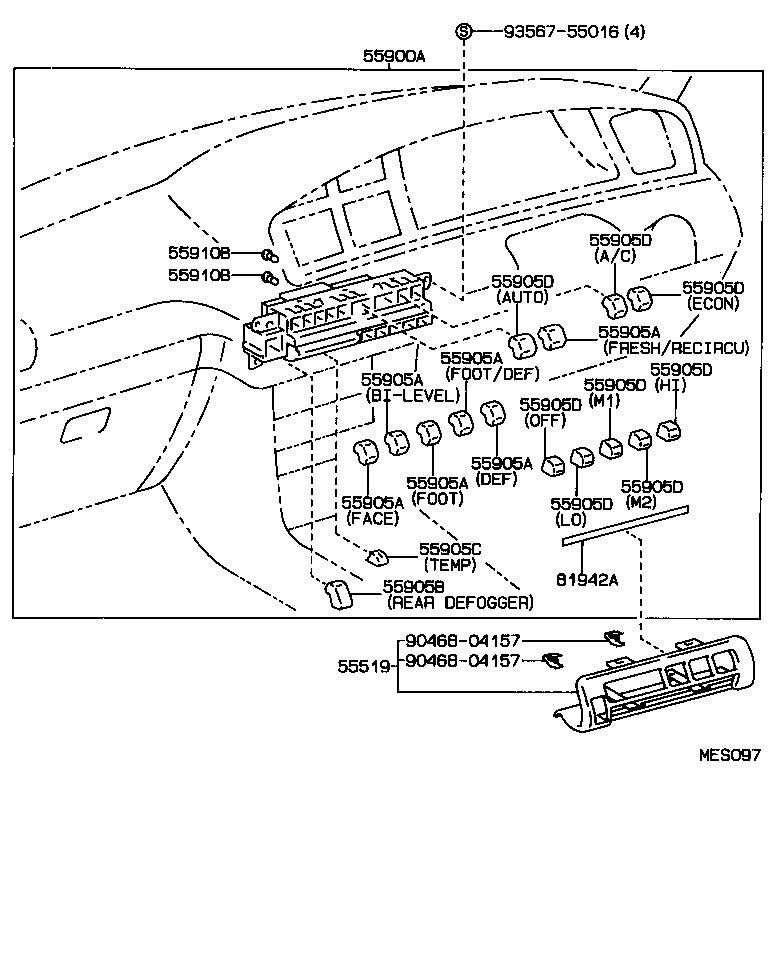

| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2075007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,REAR DEFOGGER |
1 | ||
| 55905-20850 |
ST18# REAR DEFOGGER |
1 | ||
| 55905-2075003 |
ST18# SHADOW GRAY,TRIM1#,REAR DEFOGGER |
1 | ||
| 55905-2075006 |
ST18# SABLE,TRIM4#,REAR DEFOGGER |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| Common parts | ||||
| 90468-04147 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9108- )F,S
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-2024003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55519-2024006 |
ST18# SABLE,TRIM4# |
1 | ||
| 55519-2024007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55519-20310 |
ST18# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 55900-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55900-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 55900-20880 |
ST18#..GLIM,SLIM,X |
1 | ||
| 55900-20890 |
ST180,181..F,S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2075007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,REAR DEFOGGER |
1 | ||
| 55905-20850 |
ST18# REAR DEFOGGER |
1 | ||
| 55905-2075003 |
ST18# SHADOW GRAY,TRIM1#,REAR DEFOGGER |
1 | ||
| 55905-2075006 |
ST18# SABLE,TRIM4#,REAR DEFOGGER |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| Common parts | ||||
| 90468-04157 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 3(9108- )GLIM,SLIM,X
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-2024003 |
ST18# SHADOW GRAY,TRIM1# |
1 | ||
| 55519-2024006 |
ST18# SABLE,TRIM4# |
1 | ||
| 55519-2024007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55519-20310 |
ST18# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 55900-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 55900-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 55900-20880 |
ST18#..GLIM,SLIM,X |
1 | ||
| 55900-20890 |
ST180,181..F,S |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2073006 |
ST18# SABLE,TRIM4#,FOOT/DEF |
1 | ||
| 55905-2069003 |
ST18# SHADOW GRAY,TRIM1#,FRESH/RECIRCU |
1 | ||
| 55905-2070003 |
ST18# SHADOW GRAY,TRIM1#,FACE |
1 | ||
| 55905-2070006 |
ST18# SABLE,TRIM4#,FACE |
1 | ||
| 55905-2071007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,BI-LEVEL |
1 | ||
| 55905-2072003 |
ST18# SHADOW GRAY,TRIM1#,FOOT |
1 | ||
| 55905-2069006 |
ST18# SABLE,TRIM4#,FRESH/RECIRCU |
1 | ||
| 55905-2071003 |
ST18# SHADOW GRAY,TRIM1#,BI-LEVEL |
1 | ||
| 55905-2073003 |
ST18# SHADOW GRAY,TRIM1#,FOOT/DEF |
1 | ||
| 55905-2071006 |
ST18# SABLE,TRIM4#,BI-LEVEL |
1 | ||
| 55905-2070007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FACE |
1 | ||
| 55905-20800 |
ST18# FACE |
1 | ||
| 55905-2072006 |
ST18# SABLE,TRIM4#,FOOT |
1 | ||
| 55905-20830 |
ST18# FOOT/DEF |
1 | ||
| 55905-2069007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FRESH/RECIRCU |
1 | ||
| 55905-20790 |
ST18# FRESH/RECIRCU |
1 | ||
| 55905-20810 |
ST18# BI-LEVEL |
1 | ||
| 55905-20840 |
ST18# DEF |
1 | ||
| 55905-2074006 |
ST18# SABLE,TRIM4#,DEF |
1 | ||
| 55905-2072007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT |
1 | ||
| 55905-20820 |
ST18# FOOT |
1 | ||
| 55905-2074003 |
ST18# SHADOW GRAY,TRIM1#,DEF |
1 | ||
| 55905-2073007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,FOOT/DEF |
1 | ||
| 55905-2074007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,DEF |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-2075007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,REAR DEFOGGER |
1 | ||
| 55905-20850 |
ST18# REAR DEFOGGER |
1 | ||
| 55905-2075003 |
ST18# SHADOW GRAY,TRIM1#,REAR DEFOGGER |
1 | ||
| 55905-2075006 |
ST18# SABLE,TRIM4#,REAR DEFOGGER |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-2076003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST180,181..F,S SABLE,TRIM4#,TEMP & BLOWER |
2 | ||
| 55905-2076007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,TEMP |
1 | ||
| 55905-20860 |
ST18#..GLIM,SLIM,X TEMP |
1 | ||
| 55905-20860 |
ST180,181..F,S TEMP & BLOWER |
2 | ||
| 55905-2076006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,TEMP |
1 | ||
| 55905-2076003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,TEMP |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-2032003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2031007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,A/C |
1 | ||
| 55905-2031003 |
ST180,181..F,S SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2031003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,A/C |
1 | ||
| 55905-2032007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ECON |
1 | ||
| 55905-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ｵｰﾄ |
1 | ||
| 55905-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ｵｰﾄ |
1 | ||
| 55905-2032006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,ECON |
1 | ||
| 55905-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KHAKI,TRIM6#,ｵｰﾄ |
1 | ||
| 55905-2078003 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SHADOW GRAY,SHADOW GRAY,TRIM1# |
4 | ||
| 55905-2077007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6#,OFF |
1 | ||
| 55905-2077006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4#,OFF |
1 | ||
| 55905-20890 |
ST18#..GLIM,SLIM,X HI |
1 | ||
| 55905-2031006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4#,A/C |
1 | ||
| 55905-2077003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1#,OFF |
1 | ||
| 55905-20870 |
ST18#..GLIM,SLIM,X OFF |
1 | ||
| 55905-20880 |
ST18#..GLIM,SLIM,X LO,M1,M2 |
3 | ||
| 55905-2032003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1#,ECON |
1 | ||
| 55905-2B020 |
ST18# A/C |
1 | ||
| 55905-2B030 |
ST18# ECON |
1 | ||
| 55905-2031006 |
ST180,181..F,S SABLE,TRIM4#,A/C |
1 | ||
| 55905-2078007 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,KHAKI,KHAKI,TRIM6# |
4 | ||
| 55905-2032006 |
ST180,181..F,S SABLE,TRIM4#,ECON |
1 | ||
| 55905-2B010 |
ST18#..GLIM,SLIM,X ｵｰﾄ |
1 | ||
| 55905-2078006 |
ST18#..GLIM,SLIM,X M1,M2,HI,LO,SABLE,SABLE,TRIM4# |
4 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 84999-10480 |
ST18# |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-2030006 |
ST180,181..F,S SABLE,TRIM4# |
1 | ||
| 81942-2031006 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-2032006 |
ST18#..GLIM,SLIM,X SABLE,TRIM4# |
1 | ||
| 81942-2031003 |
ST180,181..F,S ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2030003 |
ST180,181..F,S SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033003 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SHADOW GRAY,TRIM1# |
1 | ||
| 81942-20380 |
ST180,181..F,S |
1 | ||
| 81942-2032007 |
ST18#..GLIM,SLIM,X KHAKI,TRIM6# |
1 | ||
| 81942-2032003 |
ST18#..GLIM,SLIM,X SHADOW GRAY,TRIM1# |
1 | ||
| 81942-2033006 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),SABLE,TRIM4# |
1 | ||
| 81942-20370 |
ST18#..GLIM,SLIM,X |
1 | ||
| 81942-2033007 |
ST18#..GLIM,SLIM,X ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),KAHKI,TRIM6# |
1 | ||
| Common parts | ||||
| 90468-04157 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
