ST180-CTPEM (1989)

Toyota Carina Ed

Production Sep 1989 - Aug 1990

Engine 4SFI

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

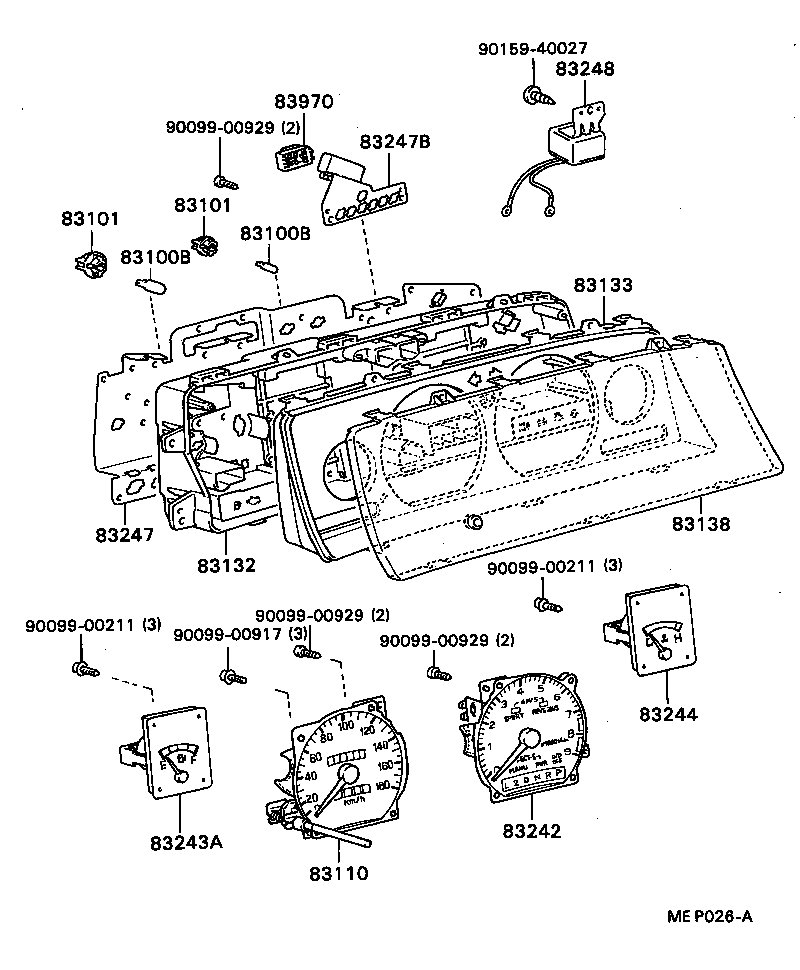

ILLUST NO. 1 OF 3(8909- )F

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-32030	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1990	3
83119-24130	ST180,181..ATM..S 12V 1.4W ﾎﾜｲﾄｿｹｯﾄ付き,SOCKET:83101-14030	09/1989 - 08/1991	7
90981-11018	ST182..ATM..TWC;ST180,182..S,SLIM,X 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1990	9
90981-11018	ST180..F..EFI;ST181..ATM..S;ST180..ATM..F..CI 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1991	10
99132-12034	ST181..S;ST180..ATM..S 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1991	13
99132-12034	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1990	1
83109-24020	ST180,181..S 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1991	3
83100B - BULB, COMBINATION METER, NO.1
83109-32030	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1990	3
83119-24130	ST180,181..ATM..S 12V 1.4W ﾎﾜｲﾄｿｹｯﾄ付き,SOCKET:83101-14030	09/1989 - 08/1991	7
90981-11018	ST182..ATM..TWC;ST180,182..S,SLIM,X 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1990	9
90981-11018	ST180..F..EFI;ST181..ATM..S;ST180..ATM..F..CI 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1991	10
99132-12034	ST181..S;ST180..ATM..S 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1991	13
99132-12034	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1990	1
83109-24020	ST180,181..S 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1991	3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	ST18# BULB:3.0W OR 3.4W	09/1989 - 08/1990	4
83101-14040	ST182..ATM..TWC;ST180,182..S,SLIM,X BULB:1.2W OR 1.4W	09/1989 - 08/1990	9
83101-14040	ST180..F;ST181..ATM..S BULB:1.2W OR 1.4W	09/1989 - 08/1991	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	ST18# BULB:3.0W OR 3.4W	09/1989 - 08/1990	4
83101-14040	ST182..ATM..TWC;ST180,182..S,SLIM,X BULB:1.2W OR 1.4W	09/1989 - 08/1990	9
83101-14040	ST180..F;ST181..ATM..S BULB:1.2W OR 1.4W	09/1989 - 08/1991	10
83110 - SPEEDOMETER ASSY
83110-2D230	ST18#	09/1989 - 07/1992	1
83132 - CASE, COMBINATION METER
83132-1B660	ST18#..ATM..(GLIM,S,SLIM,X)	09/1989 - 08/1991	1
83132-1B240	ST180..ATM..F	09/1989 - 08/1991	1
83133 - PLATE, COMBINATION METER, NO.1
83133-14880	ST182..ATM..TWC;ST180,182..S,SLIM,X	09/1989 - 11/1989	1
83133-14860	ST180..F	09/1989 - 08/1991	1
83138 - GLASS, SPEEDOMETER
83138-1B230	ST18#	09/1989 - 09/1993	1
83242 - TACHOMETER ASSY, ENGINE
83242-15050	ST180..ATM	09/1989 - 08/1991	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-1B110	ST18#..GLIM,S,SLIM,X	09/1989 - 09/1993	1
83243-1B090	ST180..F	09/1989 - 09/1993	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-1B390	ST180..F	09/1989 - 09/1993	1
83244-1B410	ST18#..GLIM,S,SLIM,X	09/1989 - 09/1993	1
83247 - PLATE, METER CIRCUIT
83247-1B320	ST180..ATM..F	09/1989 - 08/1991	1
83247-1B340	ST18#..GLIM,S,SLIM,X	09/1989 - 08/1991	1
83247B - PLATE, METER CIRCUIT, NO.2
83247-1B360	ST180,181..ATM	09/1989 - 08/1991	1
83248 - CHIME, SPEED WARNING
86640-20180	ST18#	09/1989 - 09/1993	1
83970 - BUZZER ASSY, REVERSE WARNING
83970-20010	ST18#..ATM	09/1989 - 09/1993	1
Common parts
90099-00211
90099-00917
90099-00929
90159-40027

ILLUST NO. 1 OF 3(8909- )GLIM,S,SLIM,X

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
83109-32030	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1990	3
83119-24130	ST180,181..ATM..S 12V 1.4W ﾎﾜｲﾄｿｹｯﾄ付き,SOCKET:83101-14030	09/1989 - 08/1991	7
90981-11018	ST182..ATM..TWC;ST180,182..S,SLIM,X 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1990	9
90981-11018	ST180..F..EFI;ST181..ATM..S;ST180..ATM..F..CI 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1991	10
99132-12034	ST181..S;ST180..ATM..S 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1991	13
99132-12034	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1990	1
83109-24020	ST180,181..S 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1991	3
83100B - BULB, COMBINATION METER, NO.1
83109-32030	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.0W ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1990	3
83119-24130	ST180,181..ATM..S 12V 1.4W ﾎﾜｲﾄｿｹｯﾄ付き,SOCKET:83101-14030	09/1989 - 08/1991	7
90981-11018	ST182..ATM..TWC;ST180,182..S,SLIM,X 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1990	9
90981-11018	ST180..F..EFI;ST181..ATM..S;ST180..ATM..F..CI 12V 1.2W ｿｹｯﾄ無し,SOCKET:83101-14040	09/1989 - 08/1991	10
99132-12034	ST181..S;ST180..ATM..S 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1991	13
99132-12034	ST183..MTM;ST180..ATM..F;ST180,181,182..GLIM,SLIM,X 12V 3.4W,SOCKET:83101-14030	09/1989 - 08/1990	1
83109-24020	ST180,181..S 12V 3.4W ｷｬｯﾌﾟ付き,SOCKET:83101-14030	09/1989 - 08/1991	3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	ST18# BULB:3.0W OR 3.4W	09/1989 - 08/1990	4
83101-14040	ST182..ATM..TWC;ST180,182..S,SLIM,X BULB:1.2W OR 1.4W	09/1989 - 08/1990	9
83101-14040	ST180..F;ST181..ATM..S BULB:1.2W OR 1.4W	09/1989 - 08/1991	10
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030	ST18# BULB:3.0W OR 3.4W	09/1989 - 08/1990	4
83101-14040	ST182..ATM..TWC;ST180,182..S,SLIM,X BULB:1.2W OR 1.4W	09/1989 - 08/1990	9
83101-14040	ST180..F;ST181..ATM..S BULB:1.2W OR 1.4W	09/1989 - 08/1991	10
83110 - SPEEDOMETER ASSY
83110-2D230	ST18#	09/1989 - 07/1992	1
83132 - CASE, COMBINATION METER
83132-1B660	ST18#..ATM..(GLIM,S,SLIM,X)	09/1989 - 08/1991	1
83132-1B240	ST180..ATM..F	09/1989 - 08/1991	1
83133 - PLATE, COMBINATION METER, NO.1
83133-14880	ST182..ATM..TWC;ST180,182..S,SLIM,X	09/1989 - 11/1989	1
83133-14860	ST180..F	09/1989 - 08/1991	1
83138 - GLASS, SPEEDOMETER
83138-1B230	ST18#	09/1989 - 09/1993	1
83242 - TACHOMETER ASSY, ENGINE
83242-15050	ST180..ATM	09/1989 - 08/1991	1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-1B110	ST18#..GLIM,S,SLIM,X	09/1989 - 09/1993	1
83243-1B090	ST180..F	09/1989 - 09/1993	1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-1B390	ST180..F	09/1989 - 09/1993	1
83244-1B410	ST18#..GLIM,S,SLIM,X	09/1989 - 09/1993	1
83247 - PLATE, METER CIRCUIT
83247-1B320	ST180..ATM..F	09/1989 - 08/1991	1
83247-1B340	ST18#..GLIM,S,SLIM,X	09/1989 - 08/1991	1
83247B - PLATE, METER CIRCUIT, NO.2
83247-1B360	ST180,181..ATM	09/1989 - 08/1991	1
83248 - CHIME, SPEED WARNING
86640-20180	ST18#	09/1989 - 09/1993	1
83970 - BUZZER ASSY, REVERSE WARNING
83970-20010	ST18#..ATM	09/1989 - 09/1993	1
Common parts
90099-00211
90099-00917
90099-00929
90159-40027

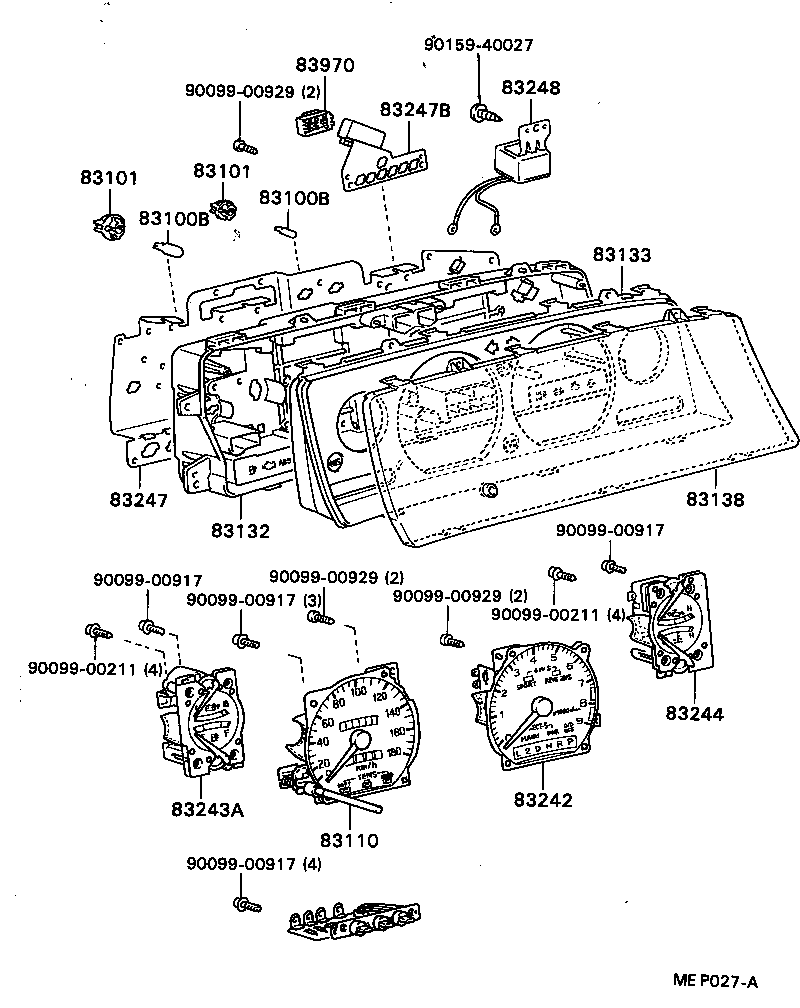

ILLUST NO. 2 OF 3(8909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83189 - BRACKET, METER
83189-20020	ST18#	09/1989 - 09/1993	1
83189 - BRACKET, METER
83189-20020	ST18#	09/1989 - 09/1993	1

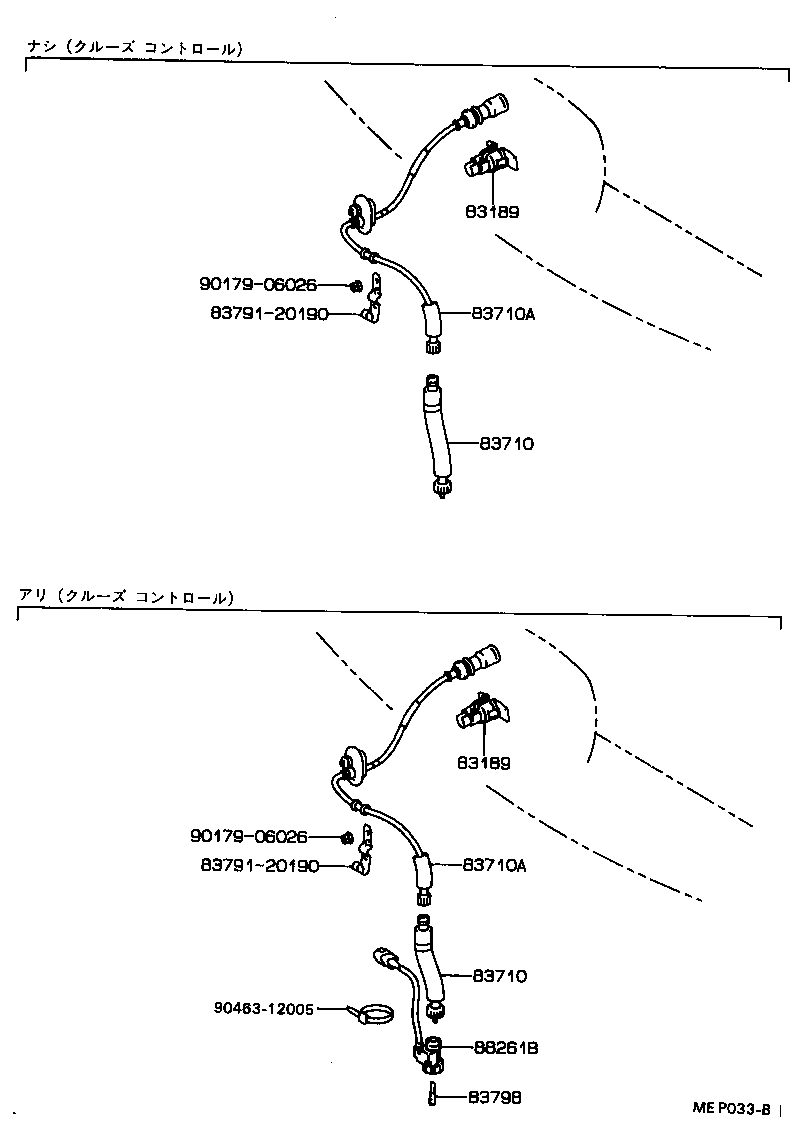

83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20830	ST18#	09/1989 - 09/1993	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-20830	ST18#	09/1989 - 09/1993	1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20850	ST18#	09/1989 - 01/1990	1
83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2
83710-20850	ST18#	09/1989 - 01/1990	1
Common parts
83791-20190
90179-06026
90463-12005

ILLUST NO. 3 OF 3(8909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

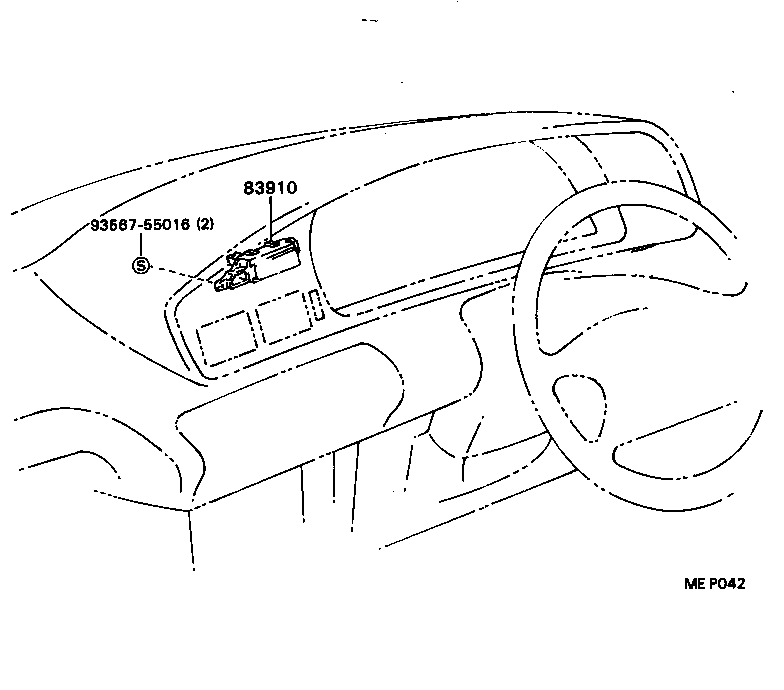

83910 - CLOCK ASSY
83910-20620	ST18#	09/1989 - 09/1993	1
Common parts
93567-55016
