ST180-CTMSM (1989)
Toyota Carina Ed
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

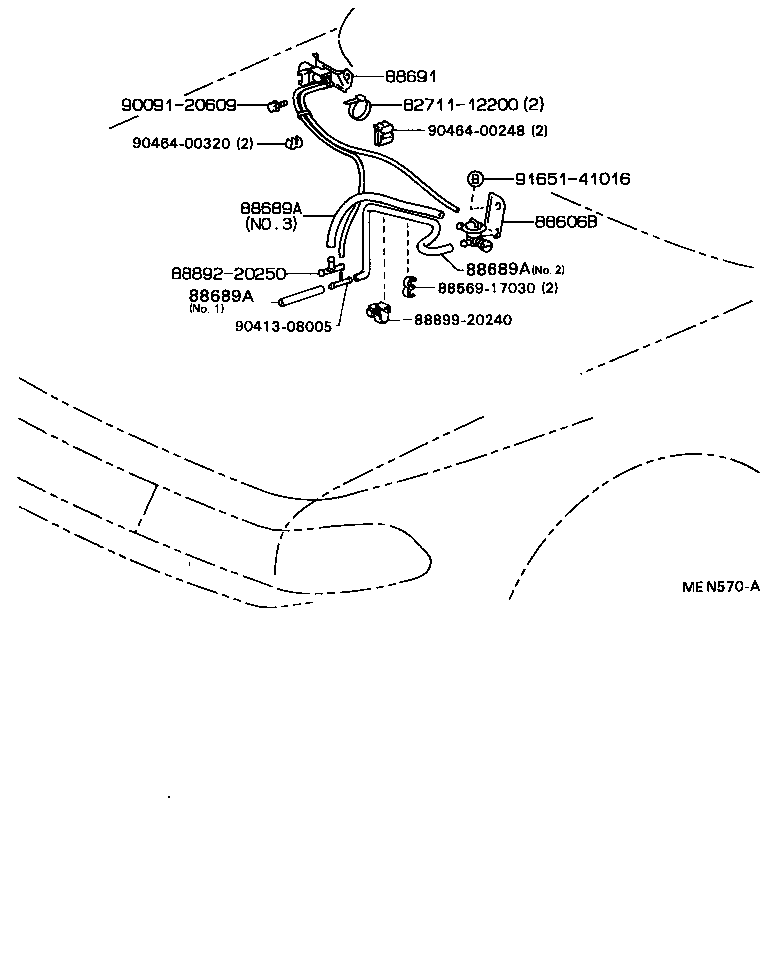

(8909-9008)ST180,181
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88606B - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 88606-20240 |
ST180,181 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-20570 |
ST180,181..F,S NO.1 |
1 | ||
| 88689-20690 |
ST180,181..(F,S)..CI NO.2 |
1 | ||
| 88689-20700 |
ST180,181..(F,S)..CI NO.3 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-20570 |
ST180,181..F,S NO.1 |
1 | ||
| 88689-20690 |
ST180,181..(F,S)..CI NO.2 |
1 | ||
| 88689-20700 |
ST180,181..(F,S)..CI NO.3 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-20570 |
ST180,181..F,S NO.1 |
1 | ||
| 88689-20690 |
ST180,181..(F,S)..CI NO.2 |
1 | ||
| 88689-20700 |
ST180,181..(F,S)..CI NO.3 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-2B350 |
ST180,181 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-17030 | ||||
| 88892-20250 | ||||
| 88899-20240 | ||||
| 90091-20609 | ||||
| 90413-08005 | ||||
| 90464-00248 | ||||
| 90464-00320 | ||||
| 91651-41016 | ||||
(8909- )ST182,183..EFI ; (9008- )ST180,181
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88606B - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 88606-20240 |
ST180,181 |
1 | ||
| 88689A - HOSE, COOLER VACUUM NO.1 | ||||
| 88689-20570 |
ST180,181..F,S NO.1 |
1 | ||
| 88689-20690 |
ST180,181..(F,S)..CI NO.2 |
1 | ||
| 88689-20700 |
ST180,181..(F,S)..CI NO.3 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-2B350 |
ST180,181 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90091-20609 | ||||
| 90119-06507 | ||||
| 90464-00248 | ||||
| 90464-00320 | ||||
