ST180-CTMSM (1989)
Toyota Carina Ed
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8909- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

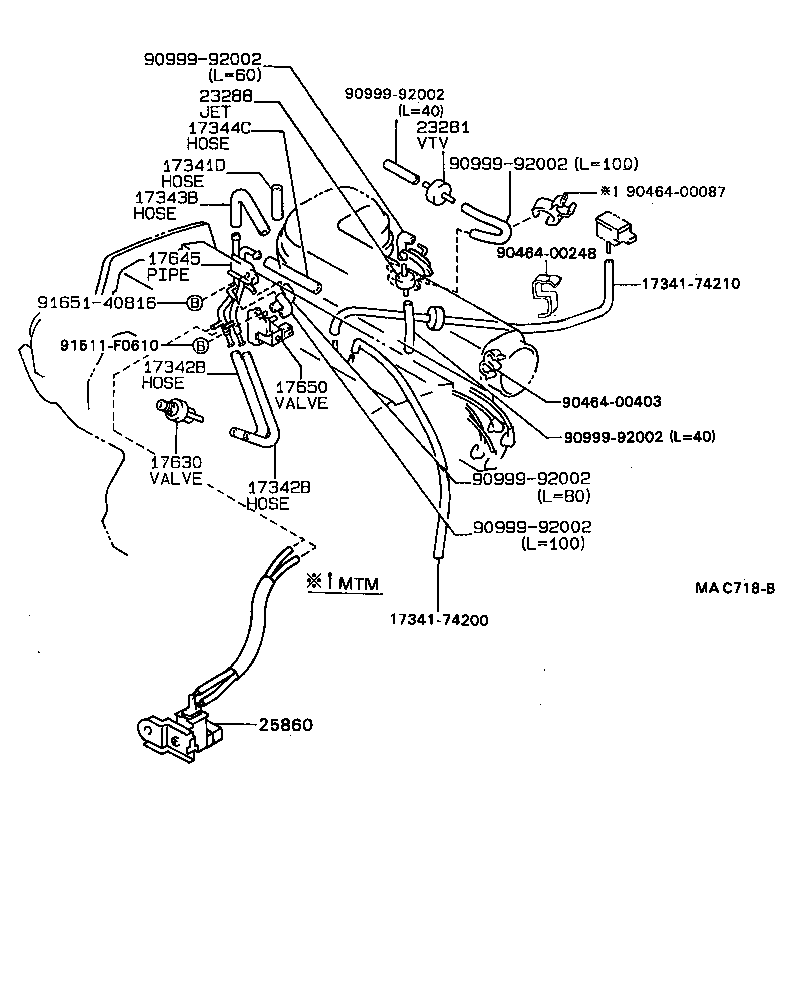

(8909-9008)4SFI
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-74060 |
4SFI..ST180,181 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74011 |
3SFE,4SFI..ST18# |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17343-74011 |
3SFE,4SFI..ST18# |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-74050 |
4SFI..ST180,181 |
1 | ||
| 17344C - HOSE, NO.4(FOR IDLE-UP) | ||||
| 17344-74020 |
4SFI..ST180,181 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70020 |
4SFE..ST181;3S#,4SF#..ST180,182,183 |
1 | ||
| 17645 - PIPE, IDLE UP | ||||
| 17645-74030 |
4SFI..ST180,181 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12071 |
4SFI..ST180,181 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01015 |
4SFI..ST180,181 |
1 | ||
| 23288 - JET, NO.1 | ||||
| 90925-04007 |
4SFI..ST180,181 |
1 | ||
| Common parts | ||||
| 17341-74200 | ||||
| 17341-74210 | ||||
| 90464-00087 | ||||
| 90464-00248 | ||||
| 90464-00403 | ||||
| 90999-92002 | ||||
| 91511-F0610 | ||||
| 91651-40816 | ||||
