ST180-CTMGM (1989)
Toyota Carina Ed
Production
Sep 1989
-
Aug 1990
Engine
4SFI
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

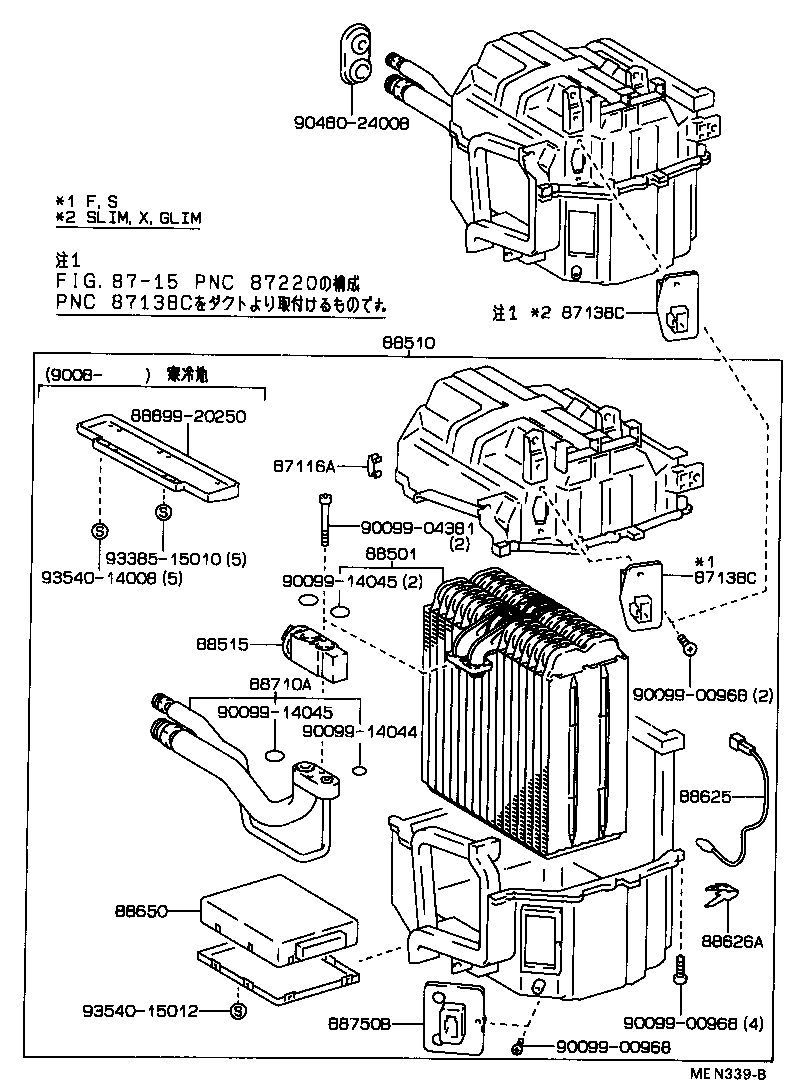

ILLUST NO. 1 OF 2(8909-9108)
Click highlighted areas on diagram
MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
ST18# |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20180 |
ST18# |
1 | ||
| 87138-20170 |
ST180,181..F,S ｵｰﾄ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20260 |
ST18# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B090 |
ST180,181 ﾏﾆﾕｱﾙ |
1 | ||
| 88510-2B110 |
ST180,181..F,S ｵ-ﾄ |
1 | ||
| 88510-2B130 |
ST180,181..X ｵ-ﾄ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14060 |
ST18# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20270 |
ST18# ﾏﾆﾕｱﾙ |
1 | ||
| 88625-20280 |
ST18# ｵ-ﾄ |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
ST18# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20670 |
ST180,181 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20270 |
ST18# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88710-20190 |
ST18# |
1 | ||
| Common parts | ||||
| 88899-20250 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90480-24008 | ||||
| 93385-15010 | ||||
| 93540-14008 | ||||
| 93540-15012 | ||||

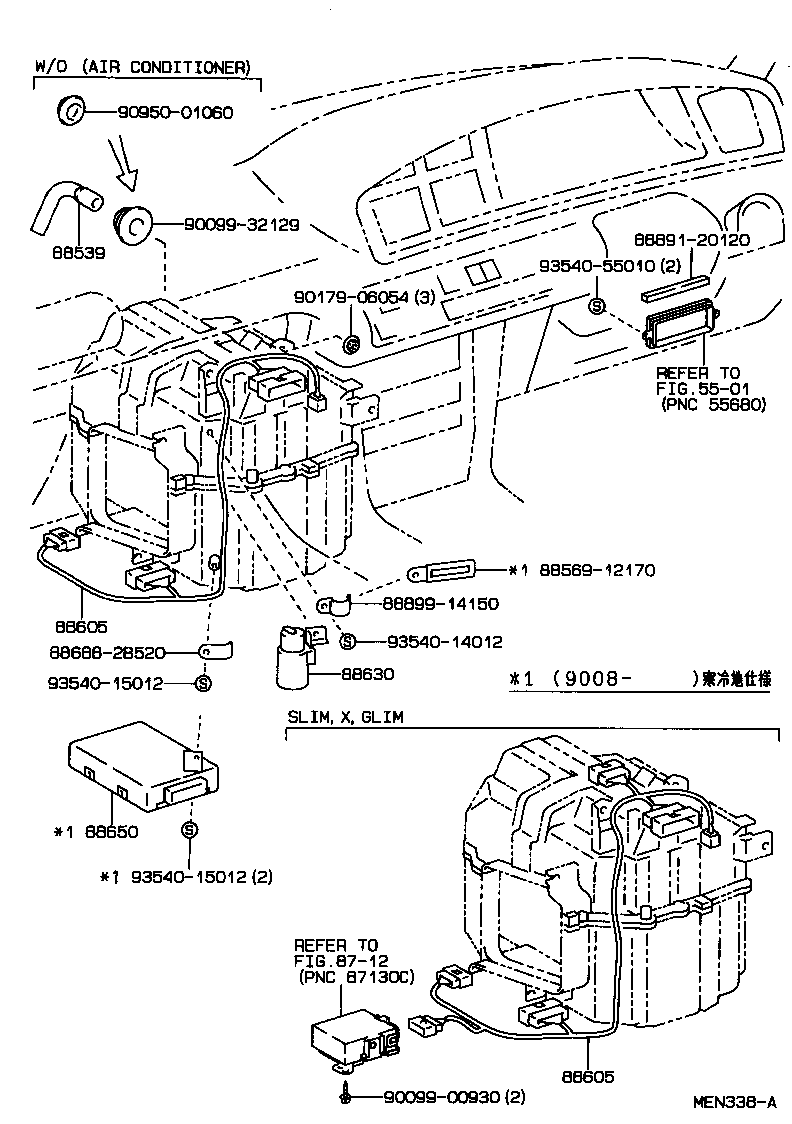

ILLUST NO. 2 OF 2(8909-9108)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22110 |
ST18# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B700 |
ST180,181..X ｵ-ﾄ |
1 | ||
| 88605-2B670 |
ST180,181..F,S ﾏﾆﾕｱﾙ |
1 | ||
| 88605-2B690 |
ST180,181..X ﾏﾆﾕｱﾙ |
1 | ||
| 88605-2B680 |
ST180,181..F,S ｵ-ﾄ |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2B700 |
ST180,181..X ｵ-ﾄ |
1 | ||
| 88605-2B670 |
ST180,181..F,S ﾏﾆﾕｱﾙ |
1 | ||
| 88605-2B690 |
ST180,181..X ﾏﾆﾕｱﾙ |
1 | ||
| 88605-2B680 |
ST180,181..F,S ｵ-ﾄ |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20670 |
ST180,181 |
1 | ||
| Common parts | ||||
| 88569-12170 | ||||
| 88688-2B520 | ||||
| 88891-20120 | ||||
| 88899-14150 | ||||
| 90099-00930 | ||||
| 90099-32129 | ||||
| 90179-06054 | ||||
| 90950-01060 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||
| 93540-55010 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 8712 | ||||
ILLUST NO. 1 OF 2(8909-9108)
Click highlighted areas on diagram
AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
ST18# |
4 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20180 |
ST18# |
1 | ||
| 87138-20170 |
ST180,181..F,S ｵｰﾄ |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-20180 |
ST18# |
1 | ||
| 87138-20170 |
ST180,181..F,S ｵｰﾄ |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-20260 |
ST18# |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-2B090 |
ST180,181 ﾏﾆﾕｱﾙ |
1 | ||
| 88510-2B110 |
ST180,181..F,S ｵ-ﾄ |
1 | ||
| 88510-2B130 |
ST180,181..X ｵ-ﾄ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-14060 |
ST18# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20270 |
ST18# ﾏﾆﾕｱﾙ |
1 | ||
| 88625-20280 |
ST18# ｵ-ﾄ |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
ST18# |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-20670 |
ST180,181 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-20270 |
ST18# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88710-20190 |
ST18# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-20010 |
ST18# |
1 | ||
| Common parts | ||||
| 88899-20250 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90480-24008 | ||||
| 93385-15010 | ||||
| 93540-14008 | ||||
| 93540-15012 | ||||
