Toyota Carina ed ST180 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
CARINA ED
ST180-CTMGK (1990)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ST180-CTMGK (1990)

Toyota Carina Ed

Production Aug 1990 - Sep 1993

Engine 4SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

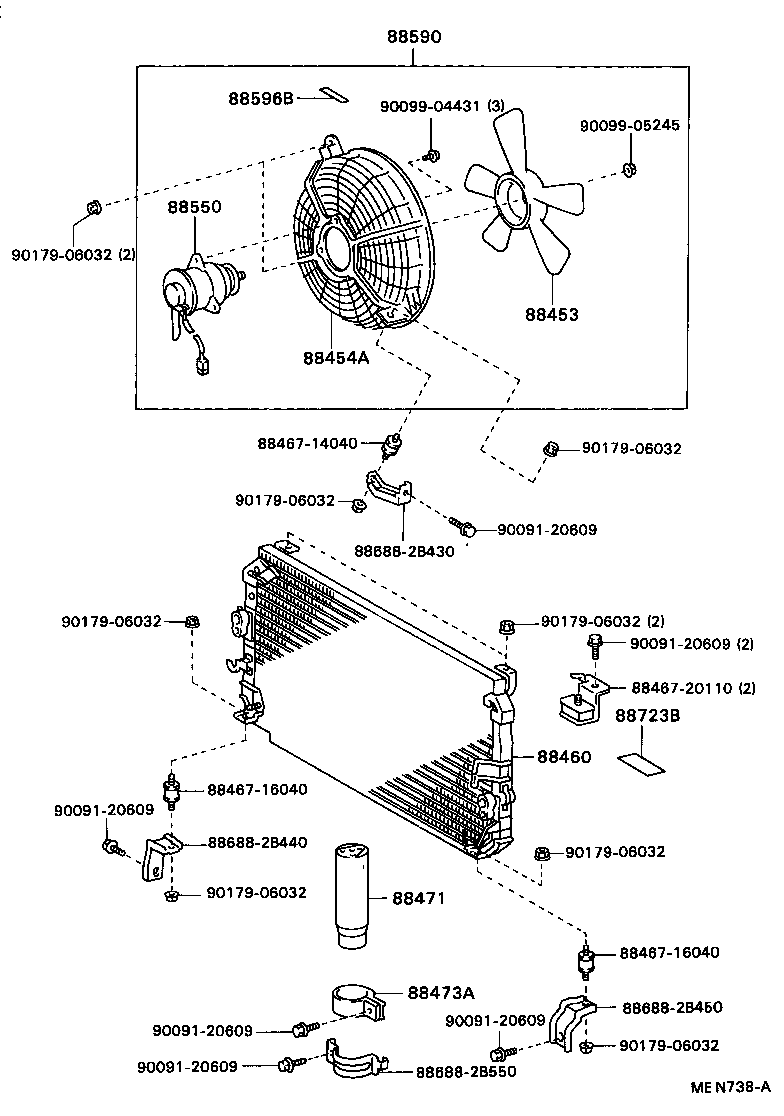

ILLUST NO. 1 OF 2(8909-9108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-20060	ST18#	09/1990 - 08/1991	1
88453-20060	ST18#	09/1989 - 09/1990	1
88453-20060	ST18#	08/1991 - 09/1993	1
88454A - SHROUD, FAN
88454-20100	ST18#	09/1990 - 08/1991	1
88454-20100	ST18#	09/1989 - 09/1990	1
88454-20100	ST18#	08/1991 - 09/1993	1
88460 - CONDENSER ASSY, COOLER
88460-20301	ST18#	08/1991 - 09/1993	1
88460-20340	ST18#	09/1989 - 09/1990	1
88460-20340	ST18#	09/1990 - 08/1991	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040	ST18#	09/1990 - 08/1991	1
88471-16040	ST18#	09/1989 - 09/1990	1
88471-16040	ST18#	08/1991 - 09/1993	1
88473A - HOLDER, RECEIVER
88473-20070	ST18#	09/1990 - 08/1991	1
88473-20100	ST18#	08/1991 - 09/1993	1
88473-20070	ST18#	09/1989 - 09/1990	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20070	ST18#	09/1990 - 08/1991	1
88550-20070	ST18#	08/1991 - 09/1993	1
88550-20070	ST18#	09/1989 - 09/1990	1
88590 - BLOWER ASSY, W/SHROUD
88590-20240	ST18#	09/1990 - 08/1991	1
88590-20260	ST18#	08/1991 - 09/1993	1
88590-20240	ST18#	09/1989 - 09/1990	1
88596B - PLATE, CAUTION, NO.1
88596-24010	ST18#	09/1990 - 08/1991	1
88596-24010	ST18#	08/1991 - 09/1993	1
88596-24010	ST18#	09/1989 - 09/1990	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20010	ST18#	08/1991 - 09/1993	1
88723-20010	ST18#..EFI	08/1990 - 09/1990	1
88723-20010	ST18#..EFI	09/1990 - 08/1991	1
Common parts
88467-14040
88467-16040
88467-20110
88688-2B430
88688-2B440
88688-2B450
88688-2B550
90091-20609
90099-04431
90099-05245
90179-06032

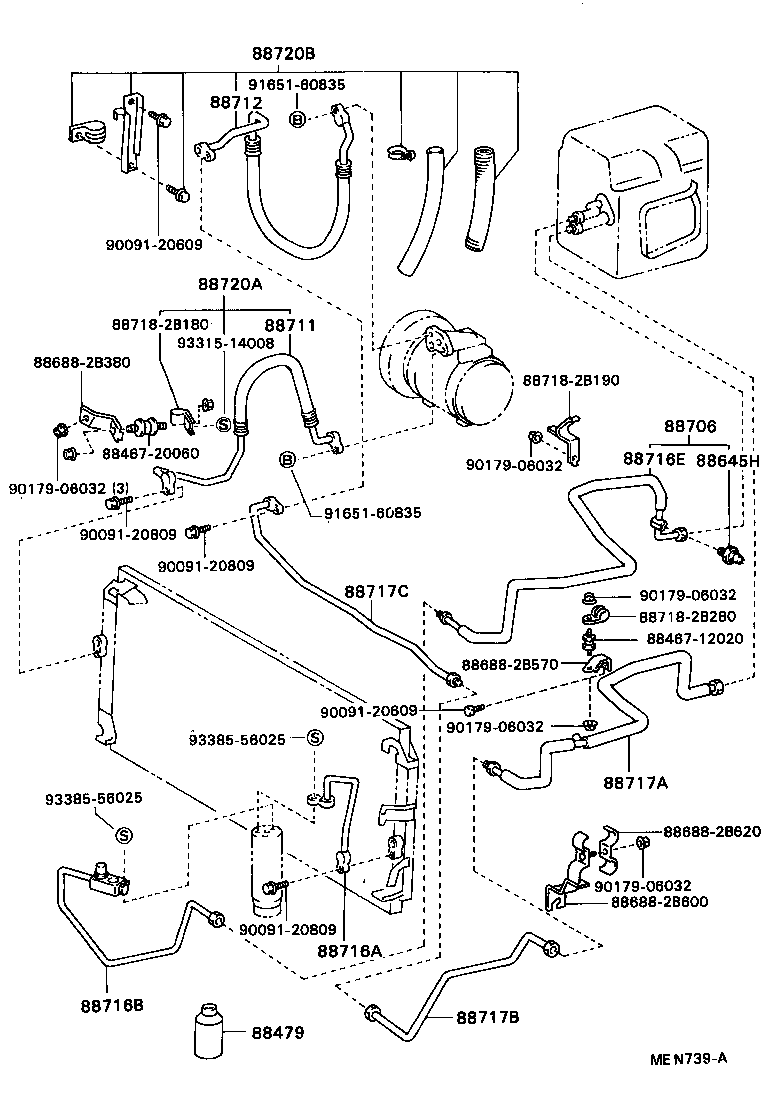

ILLUST NO. 2 OF 2(8909-9108)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	ST18# 250G	09/1990 - 08/1991	3
90986-02004	ST18# 250G	09/1989 - 09/1990	3
88645H - SWITCH, PRESSURE NO.1
88645-20040	ST18#	09/1989 - 09/1990	1
88645-20040	ST18#	08/1991 - 09/1993	1
88645-20040	ST18#	09/1990 - 08/1991	1
88706 - PIPE SUB-ASSY, LIQUID
88706-20070	ST18#	09/1989 - 09/1990	1
88706-20070	ST18#	09/1990 - 08/1991	1
88706-20091	ST18#	08/1991 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20730	ST18#	09/1990 - 08/1991	1
88711-20790	ST18#	08/1991 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B180	ST18#	08/1991 - 09/1993	1
88712-2B121	ST18#	09/1989 - 09/1990	1
88712-2B121	ST18#	09/1990 - 08/1991	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B830	ST18#	09/1989 - 09/1990	1
88716-2D010	ST18#	08/1991 - 09/1993	1
88716-2B830	ST18#	09/1990 - 08/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B840	ST18#	09/1990 - 08/1991	1
88716-2D040	ST18#	08/1991 - 09/1993	1
88716-2B840	ST18#	09/1989 - 09/1990	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B860	ST18#	09/1990 - 08/1991	1
88716-2D021	ST18#	08/1991 - 09/1993	1
88716-2B860	ST18#	09/1989 - 09/1990	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B050	ST18#	09/1989 - 09/1990	1
88717-2B050	ST18#	09/1990 - 08/1991	1
88717-2B150	ST18#	08/1991 - 09/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2B080	ST18#	09/1989 - 09/1990	1
88717-2B080	ST18#	09/1990 - 08/1991	1
88717-2B131	ST18#	08/1991 - 09/1993	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B090	ST18#	09/1990 - 08/1991	1
88717-2B090	ST18#	09/1989 - 09/1990	1
88717-2B140	ST18#	08/1991 - 09/1993	1
88720A - HOSE & ACCESSORY, AIR CONDITIONER
88720-20380	ST18#	09/1989 - 09/1990	1
88720-20380	ST18#	09/1990 - 08/1991	1
88720B - HOSE & ACCESSORY, AIR CONDITIONER
88720-20391	ST18#	08/1990 - 09/1990	1
88720-20391	ST18#	09/1990 - 08/1991	1
Common parts
88467-12020
88467-20060
88688-2B380
88688-2B570
88688-2B600
88688-2B620
88718-2B180
88718-2B190
88718-2B280
90091-20609
90091-20809
90179-06032
91651-60835
93315-14008
93385-56025

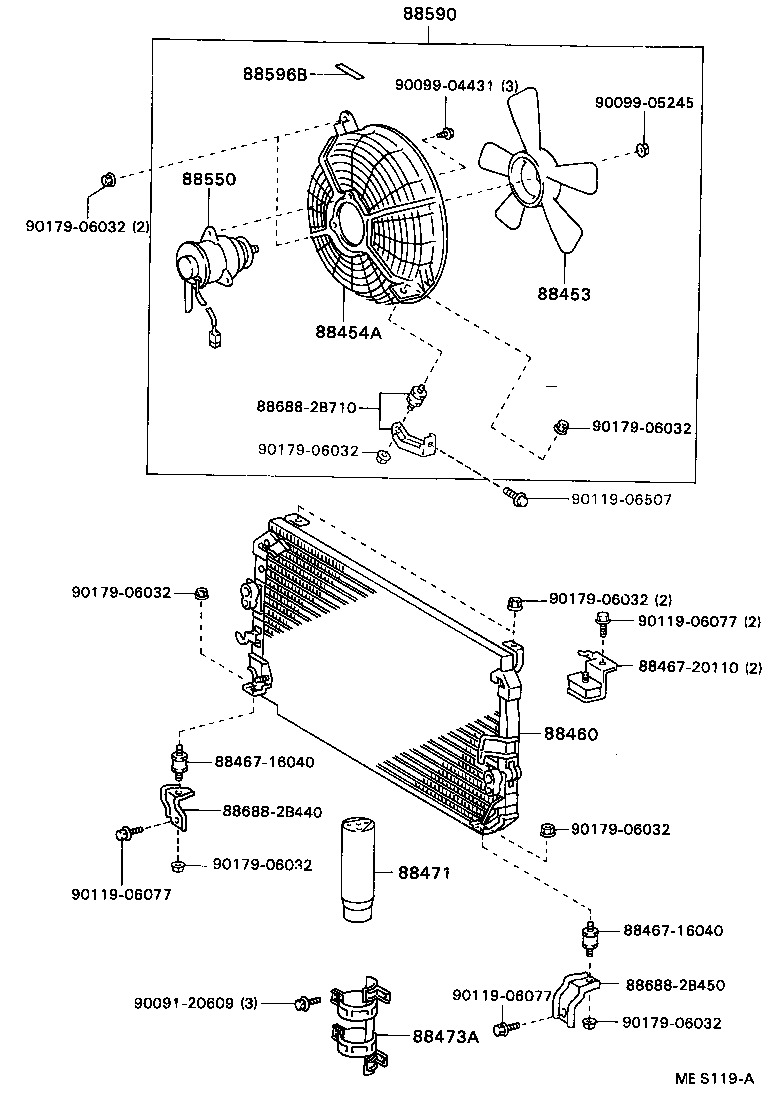

ILLUST NO. 1 OF 2(9108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-20060	ST18#	09/1990 - 08/1991	1
88453-20060	ST18#	09/1989 - 09/1990	1
88453-20060	ST18#	08/1991 - 09/1993	1
88454A - SHROUD, FAN
88454-20100	ST18#	09/1990 - 08/1991	1
88454-20100	ST18#	09/1989 - 09/1990	1
88454-20100	ST18#	08/1991 - 09/1993	1
88460 - CONDENSER ASSY, COOLER
88460-20301	ST18#	08/1991 - 09/1993	1
88460-20340	ST18#	09/1989 - 09/1990	1
88460-20340	ST18#	09/1990 - 08/1991	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040	ST18#	09/1990 - 08/1991	1
88471-16040	ST18#	09/1989 - 09/1990	1
88471-16040	ST18#	08/1991 - 09/1993	1
88473A - HOLDER, RECEIVER
88473-20070	ST18#	09/1990 - 08/1991	1
88473-20100	ST18#	08/1991 - 09/1993	1
88473-20070	ST18#	09/1989 - 09/1990	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-20070	ST18#	09/1990 - 08/1991	1
88550-20070	ST18#	08/1991 - 09/1993	1
88550-20070	ST18#	09/1989 - 09/1990	1
88590 - BLOWER ASSY, W/SHROUD
88590-20240	ST18#	09/1990 - 08/1991	1
88590-20260	ST18#	08/1991 - 09/1993	1
88590-20240	ST18#	09/1989 - 09/1990	1
88596B - PLATE, CAUTION, NO.1
88596-24010	ST18#	09/1990 - 08/1991	1
88596-24010	ST18#	08/1991 - 09/1993	1
88596-24010	ST18#	09/1989 - 09/1990	1
Common parts
88467-16040
88467-20110
88688-2B440
88688-2B450
88688-2B710
90091-20609
90099-04431
90099-05245
90119-06077
90119-06507
90179-06032

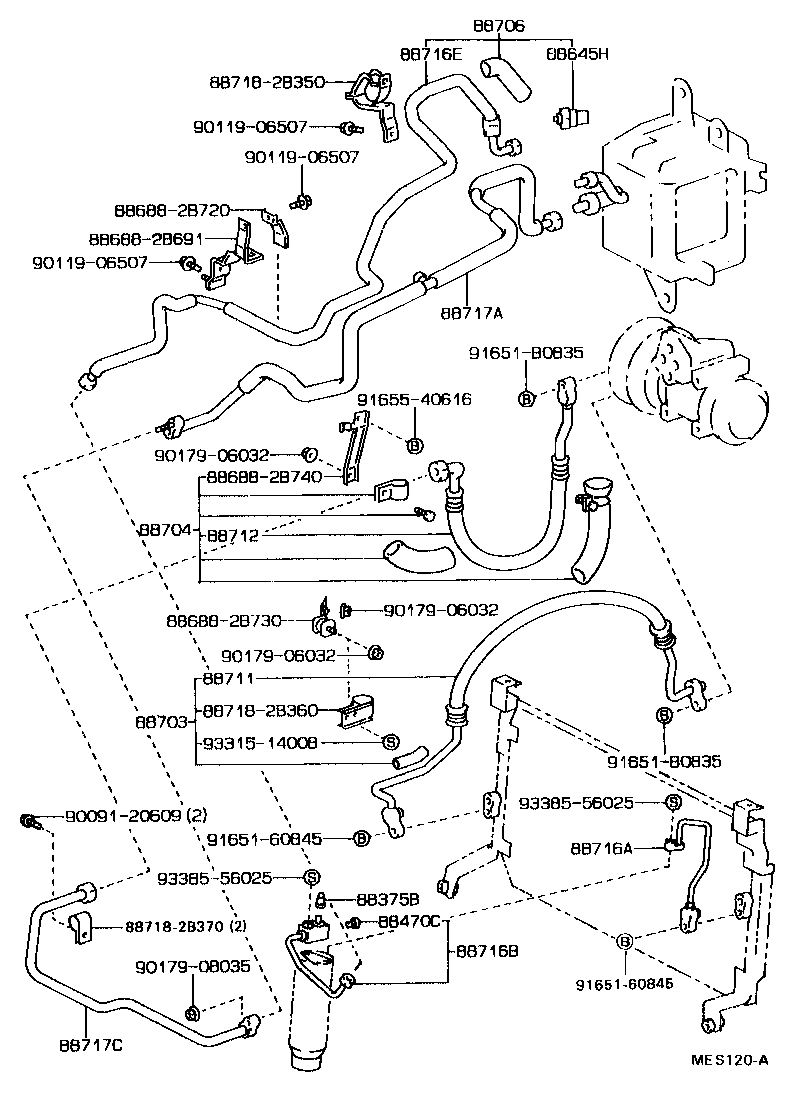

ILLUST NO. 2 OF 2(9108- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375B - CAP, SERVICE VALVE, NO.1
88375-20010	ST18#	08/1991 - 09/1993	1
88470C - BOLT, FUSE
88475-12020	ST18#	08/1991 - 09/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20040	ST18#	09/1989 - 09/1990	1
88645-20040	ST18#	08/1991 - 09/1993	1
88645-20040	ST18#	09/1990 - 08/1991	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-20061	ST18#	08/1991 - 09/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-20111	ST18#	08/1991 - 09/1993	1
88706 - PIPE SUB-ASSY, LIQUID
88706-20070	ST18#	09/1989 - 09/1990	1
88706-20070	ST18#	09/1990 - 08/1991	1
88706-20091	ST18#	08/1991 - 09/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20730	ST18#	09/1990 - 08/1991	1
88711-20790	ST18#	08/1991 - 09/1993	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-2B180	ST18#	08/1991 - 09/1993	1
88712-2B121	ST18#	09/1989 - 09/1990	1
88712-2B121	ST18#	09/1990 - 08/1991	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B830	ST18#	09/1989 - 09/1990	1
88716-2D010	ST18#	08/1991 - 09/1993	1
88716-2B830	ST18#	09/1990 - 08/1991	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2B840	ST18#	09/1990 - 08/1991	1
88716-2D040	ST18#	08/1991 - 09/1993	1
88716-2B840	ST18#	09/1989 - 09/1990	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B860	ST18#	09/1990 - 08/1991	1
88716-2D021	ST18#	08/1991 - 09/1993	1
88716-2B860	ST18#	09/1989 - 09/1990	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2B050	ST18#	09/1989 - 09/1990	1
88717-2B050	ST18#	09/1990 - 08/1991	1
88717-2B150	ST18#	08/1991 - 09/1993	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-2B090	ST18#	09/1990 - 08/1991	1
88717-2B090	ST18#	09/1989 - 09/1990	1
88717-2B140	ST18#	08/1991 - 09/1993	1
Common parts
88688-2B691
88688-2B720
88688-2B730
88688-2B740
88718-2B350
88718-2B360
88718-2B370
90091-20609
90119-06507
90179-06032
90179-08035
91651-60845
91651-B0835
91655-40616
93315-14008
93385-56025
