ST180-CTMGK (1990)

Toyota Carina Ed

Production Aug 1990 - Sep 1993
Engine 4SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8909-9108)

Click highlighted areas on diagram

diagram 53111 53112C 53113C 9016740035 9018904025 9046712040 9046717004 9356055012
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-20460

ST18#

 1
53101-20390

ST18#

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-20200

ST18#

 1
53112-20160

ST18#

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-20100

ST18#

 1
53113-20140

ST18#

 1
Common parts
90167-40035
90189-04025
90467-12040
90467-17004
93560-55012

(9108- )

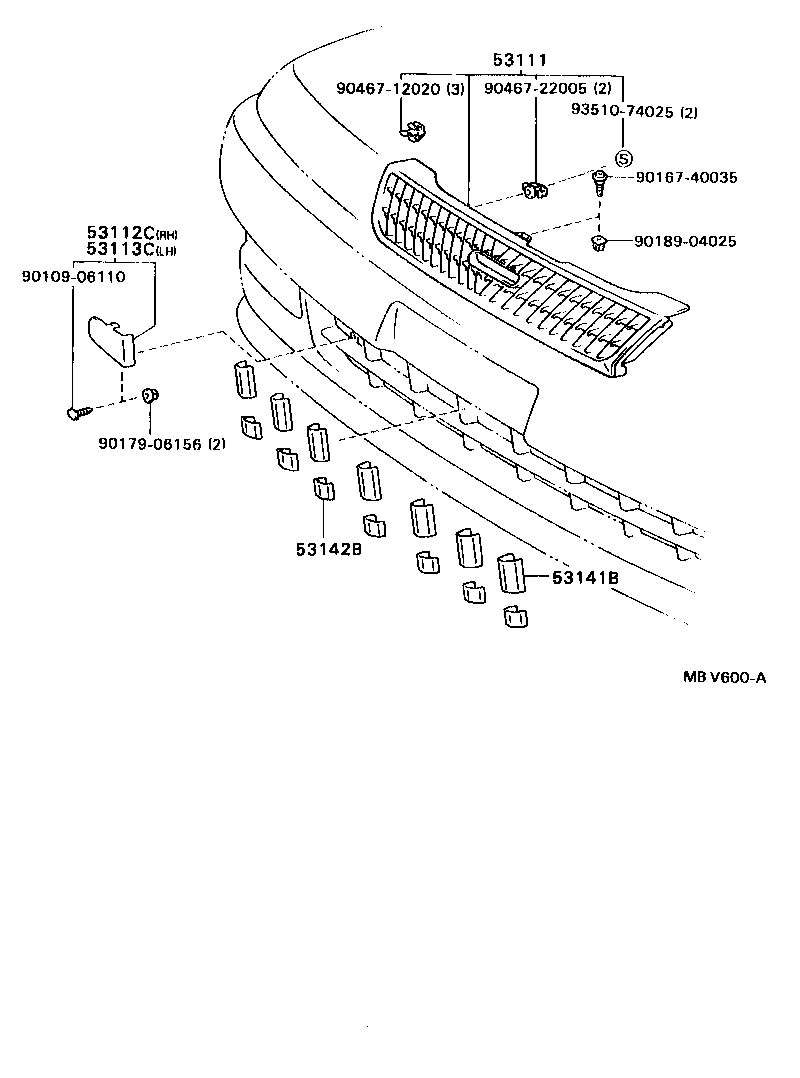

Click highlighted areas on diagram

diagram 53111 53112C 53113C 53141B 53142B 9010906110 9016740035 9017906156 9018904025 9046712020 9046722005 9351074025
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53101-20460

ST18#

 1
53101-20390

ST18#

 1
53112C - GRILLE, RADIATOR, LOWER RH
53112-20200

ST18#

 1
53112-20160

ST18#

 1
53113C - GRILLE, RADIATOR, LOWER LH
53113-20100

ST18#

 1
53113-20140

ST18#

 1
53141B - GARNISH, RADIATOR GRILLE, NO.1
53141-20060

ST18#

 7
53142B - RADIATOR GRILLE GARNISH, NO.2
53142-20040

ST18#

 7
Common parts
90109-06110
90167-40035
90179-06156
90189-04025
90467-12020
90467-22005
93510-74025
