Toyota Carina ed ST180 CLUTCH PEDAL & FLEXIBLE HOSE

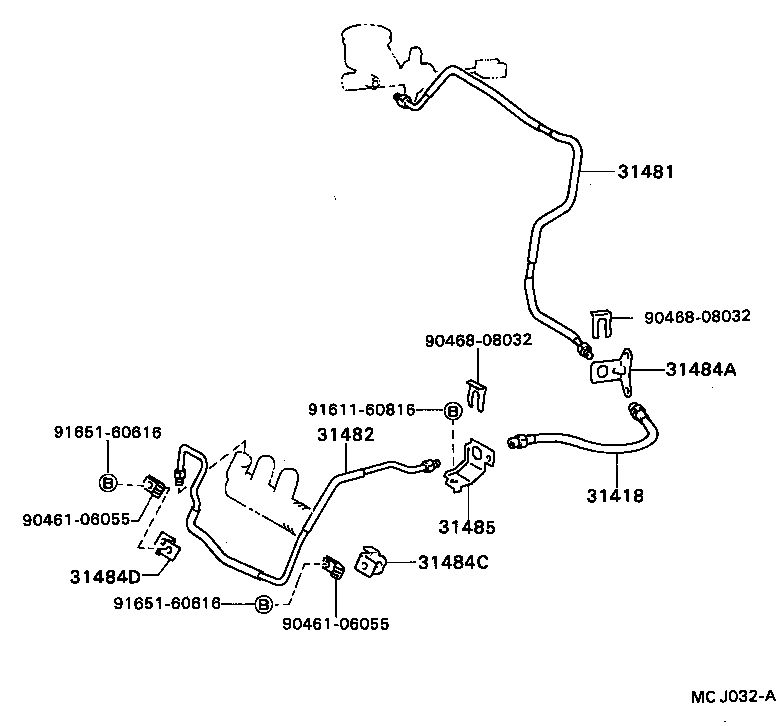

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90931-01067	ST180,181..MTM	09/1989 - 08/1990	1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20450	ST18#..MTM	09/1989 - 08/1991	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-20400	ST18#..MTM	09/1989 - 09/1993	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-20410	ST18#..MTM	09/1989 - 09/1993	1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-32050	ST18#..MTM	09/1989 - 09/1993	1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460	ST18#..MTM	09/1989 - 09/1993	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20440	ST18#..MTM	09/1989 - 09/1993	1
Common parts
90461-06055
90468-08032
91611-60816
91651-60616

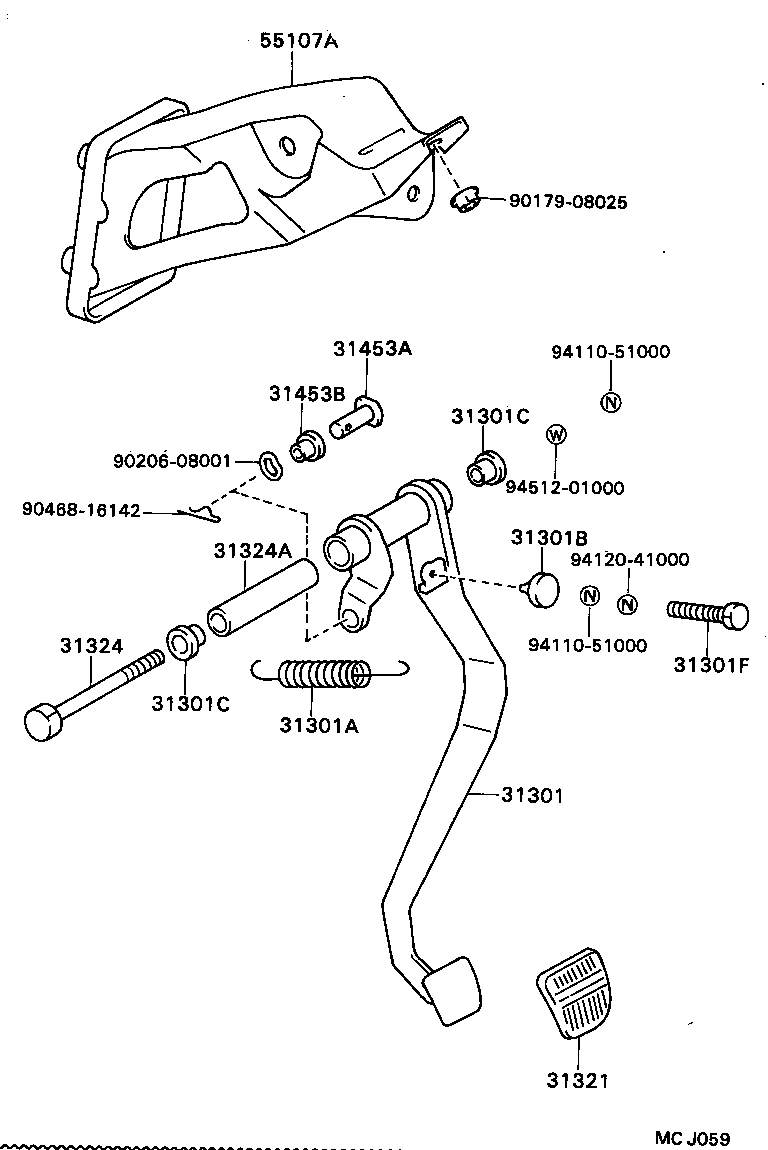

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20310	ST180,181..MTM	09/1989 - 08/1991	1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14029	ST180,181..MTM	09/1989 - 09/1993	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06032	ST18#..MTM	09/1989 - 09/1993	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ST18#..MTM	09/1989 - 09/1993	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ST18#..MTM	09/1989 - 09/1993	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	ST18#..MTM	09/1989 - 09/1993	1
31321 - PAD, CLUTCH PEDAL
31321-14020	ST18#..MTM	09/1989 - 09/1993	1
31324 - SHAFT, CLUTCH PEDAL
91121-51085	ST18#..MTM	09/1989 - 09/1993	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10082	ST18#..MTM	09/1989 - 09/1993	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143	ST18#..MTM 長さ=30	09/1989 - 09/1993	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	ST180,181..MTM	09/1989 - 09/1993	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-20280	ST180,181..MTM	09/1989 - 08/1991	1
Common parts
90179-08025
90206-08001
90468-16142
94110-51000
94120-41000
94512-01000

ST180-CTMEM (1989)
