Toyota Carina ed ST180 ALTERNATOR

ST180-CTMEK (1990)

Toyota Carina Ed

Production Aug 1990 - Sep 1993

Engine 4SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

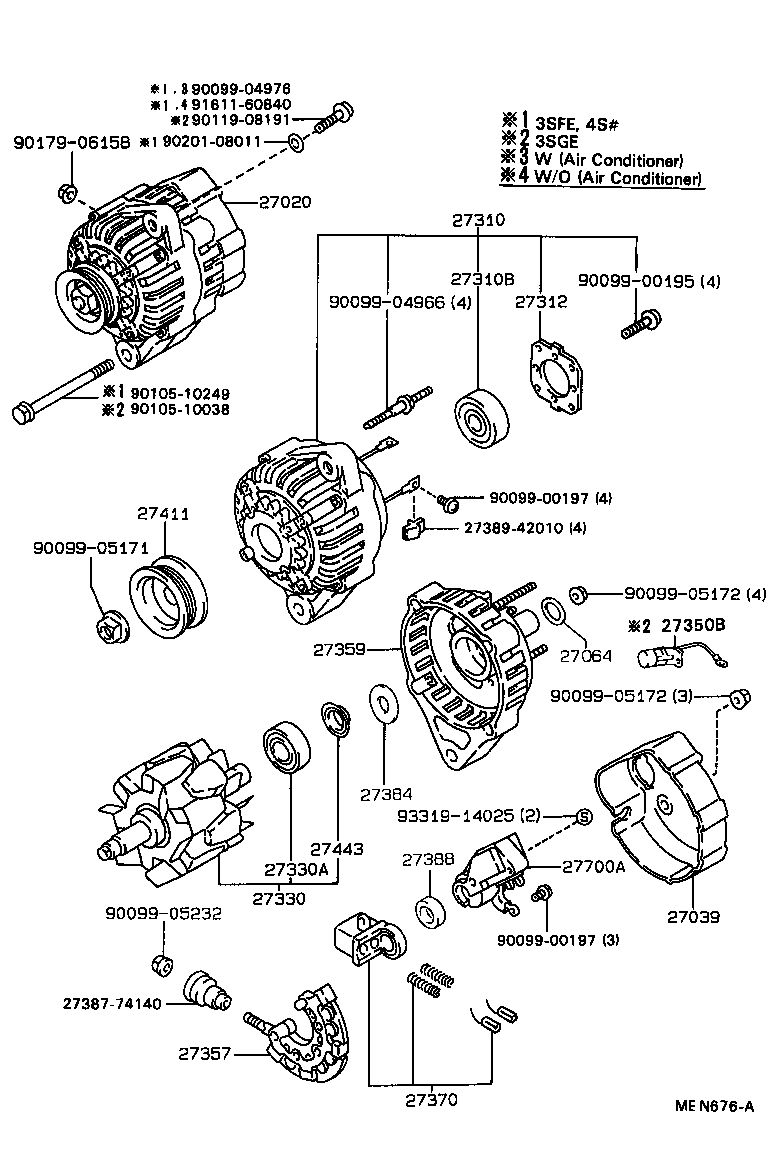

(8909-9108)

Click highlighted areas on diagram

12V 70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-74280	3SFE,4SFE..ST18# 12V 70A	09/1990 - 08/1991	1
27060-74460	3S#,4SFE..ST18# 12V 80A	11/1992 - 09/1993	1
27060-74291	3S#,4SFE..ST18# 12V 80A	02/1992 - 11/1992	1
27060-74290	3S#,4SFE..ST18# 12V 80A	08/1991 - 02/1992	1
27039 - COVER, ALTERNATOR REAR END
27039-74390	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27039-74140	3S#,4SFE..ST18#	09/1990 - 11/1992	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-42050	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
27310-74120	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	3S#,4SFE..ST18#	08/1991 - 09/1993	1
90099-10160	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
27312 - PLATE, RETAINER
27312-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	3S#,4SFE..ST18#	12/1990 - 09/1993	1
27330-76030	3SFE,4SFE..ST18#	09/1990 - 12/1990	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-74140	3S#,4SFE..ST18#	09/1990 - 11/1992	1
27357-74260	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74140	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-42010	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27370-75060	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27384 - WASHER
27384-42010	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27384-50030	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27411 - PULLEY, ALTERNATOR
27411-74050	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27411-42030	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27700A - REGULATOR ASSY, GENERATOR
27700-74030	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27700-46030	3S#,4SFE..ST18#	08/1991 - 11/1992	1
27700-74010	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
Common parts
27387-74140
27389-42010
90099-00195
90099-00197
90099-04966
90099-04976
90099-05171
90099-05172
90099-05232
90105-10038
90105-10249
90119-08191
90179-06158
90201-08011
91611-60840
93319-14025

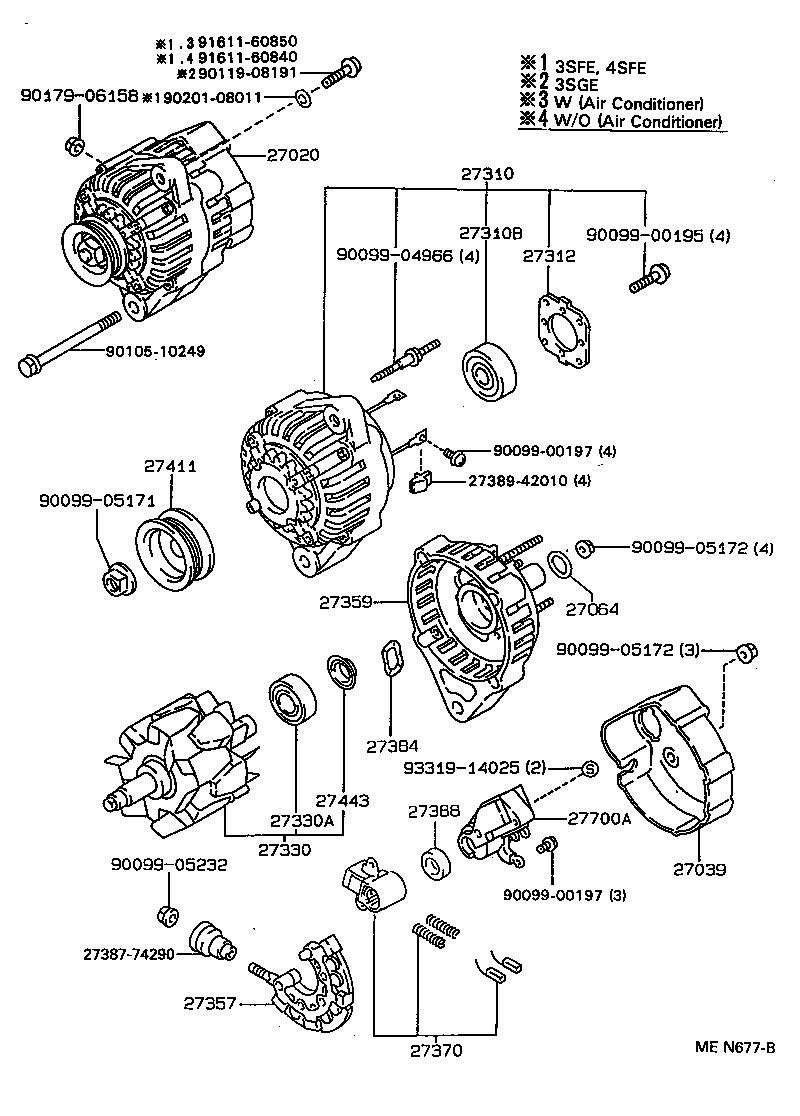

(9108- )

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-74280	3SFE,4SFE..ST18# 12V 70A	09/1990 - 08/1991	1
27060-74460	3S#,4SFE..ST18# 12V 80A	11/1992 - 09/1993	1
27060-74291	3S#,4SFE..ST18# 12V 80A	02/1992 - 11/1992	1
27060-74290	3S#,4SFE..ST18# 12V 80A	08/1991 - 02/1992	1
27039 - COVER, ALTERNATOR REAR END
27039-74390	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27039-74140	3S#,4SFE..ST18#	09/1990 - 11/1992	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-42050	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
27310-74120	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	3S#,4SFE..ST18#	08/1991 - 09/1993	1
90099-10160	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
27312 - PLATE, RETAINER
27312-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	3S#,4SFE..ST18#	12/1990 - 09/1993	1
27330-76030	3SFE,4SFE..ST18#	09/1990 - 12/1990	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-74140	3S#,4SFE..ST18#	09/1990 - 11/1992	1
27357-74260	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-74140	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-42010	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27370-75060	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27384 - WASHER
27384-42010	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27384-50030	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27411 - PULLEY, ALTERNATOR
27411-74050	3S#,4SFE..ST18#	09/1990 - 08/1991	1
27411-42030	3S#,4SFE..ST18#	08/1991 - 09/1993	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	3S#,4SFE..ST18#	09/1990 - 09/1993	1
27700A - REGULATOR ASSY, GENERATOR
27700-74030	3S#,4SFE..ST18#	11/1992 - 09/1993	1
27700-46030	3S#,4SFE..ST18#	08/1991 - 11/1992	1
27700-74010	3SFE,4SFE..ST18#	09/1990 - 08/1991	1
Common parts
27387-74290
27389-42010
90099-00195
90099-00197
90099-04966
90099-05171
90099-05172
90099-05232
90105-10249
90119-08191
90179-06158
90201-08011
91611-60840
91611-60850
93319-14025
