ST163-ATPNM (1988)

Toyota Carina Ed

Production May 1988 - Aug 1989
Engine 4SFI
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )3SFE,4SFI

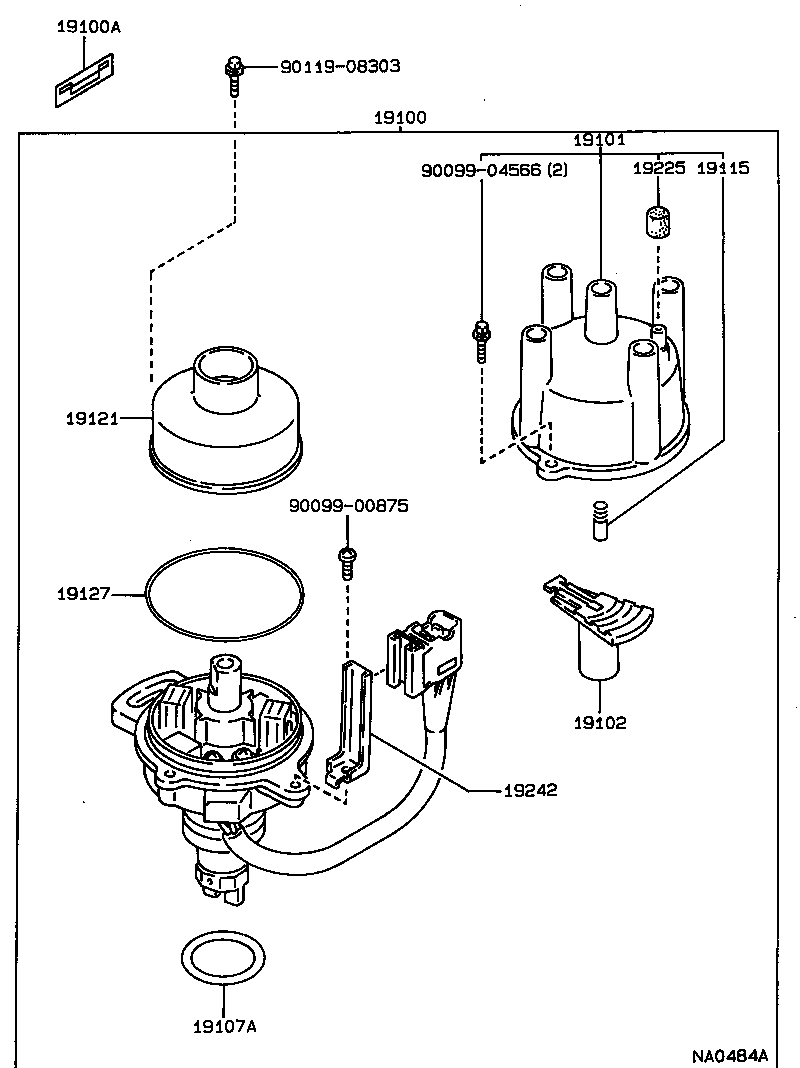

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19121 19127 19225 19242 9009900875 9009904566 9011908303
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-74020

3SFE,4SFI..ST16#

 1
19100A - TAPE, SEALING
90919-24004

3SGELU,4SFI..ST16#

 1
90919-24004

3S#,4SFI..ST16#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11040

4SFI..ST163

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11010

4SFI..ST163

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14091

4SFI..ST163

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

3SGELU,4SFI..ST162,163

 1
19121 - COVER, DUST PROOF
19121-16150

4SFI..ST163

 1
19127 - PACKING, DUST PROOF
19127-15021

3SGELU,4SFI..ST162,163

 1
19225 - CAP, RUBBER
19225-16100

4SFI..ST163

 1
19242 - CLAMP, CORD
19242-62010

4SFI..ST163

 1
Common parts
90099-00875
90099-04566
90119-08303
