ST163-ATMNM (1988)

Toyota Carina Ed

Production May 1988 - Aug 1989
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )ST163

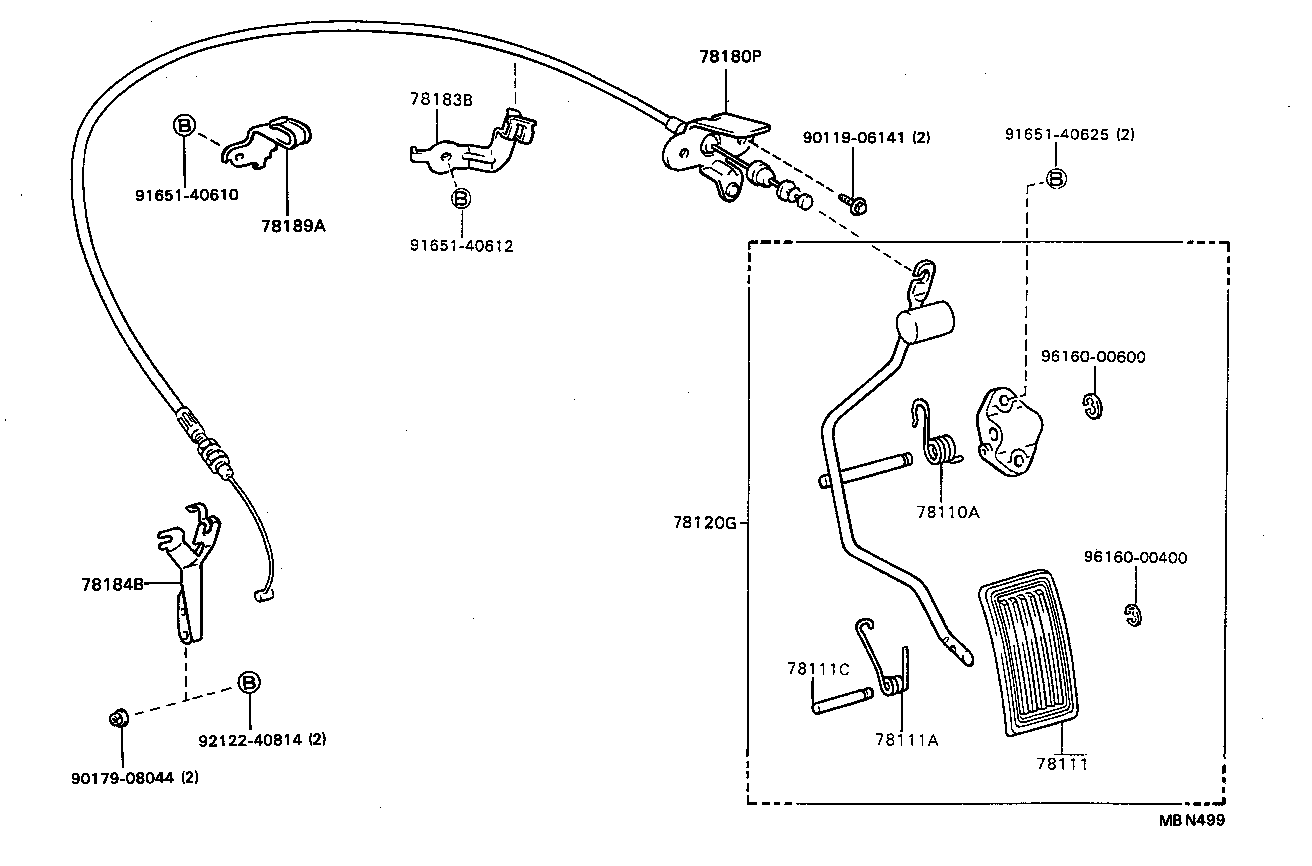

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78180P 78183B 78184B 78189A 9011906141 9017908044 9165140610 9165140612 9165140625 9212240814 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26054

ST16#..5F

 1
78111 - PEDAL, ACCELERATOR
78111-20030

ST16#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-18050

ST16#..5F

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

ST16#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-20300

ST16#..5F..(F,L,S,X)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-2B060

ST163

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-20120

ST163

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-20160

ST163

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-32041

ST163

 1
Common parts
90119-06141
90179-08044
91651-40610
91651-40612
91651-40625
92122-40814
96160-00400
96160-00600
