ST162-ATPVF (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ST162

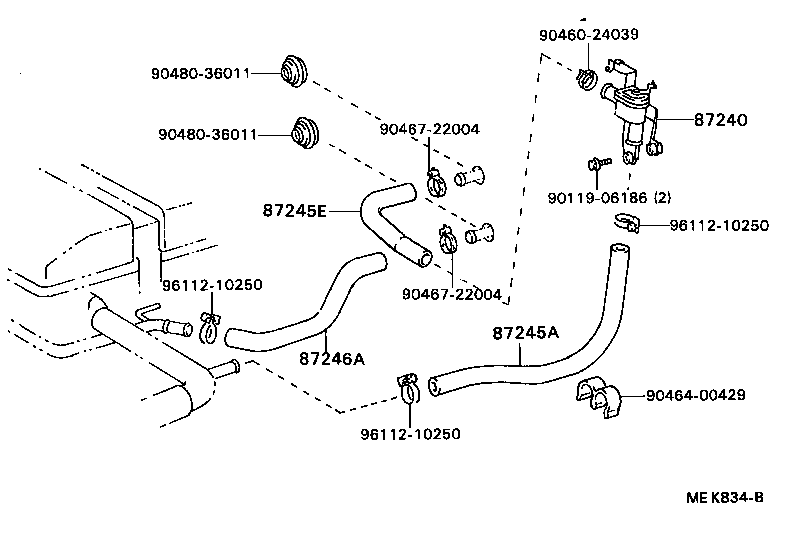

Click highlighted areas on diagram

diagram 87240 87245A 87245E 87246A 9011906186 9046024039 9046400429 9046722004 9046722004 9048036011 9048036011 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20290

ST16#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B080

ST162

 1
87245E - HOSE, HEATER WATER, INLET E
87245-20810

ST16#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B090

ST162

 1
Common parts
90119-06186
90460-24039
90464-00429
90467-22004
90480-36011
96112-10250
