ST162-ATPVF (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

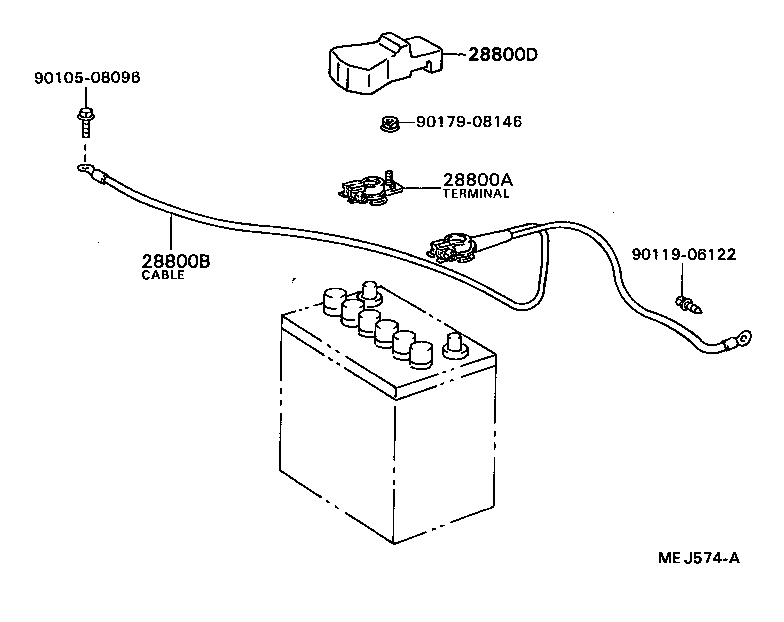

Click highlighted areas on diagram

diagram 28800A 28800B 28800D 9010508096 9011906122 9017908146
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05028

1SILU,3S#,4SFI..ST16#

 1
90982-05030

3SGELU..ST162..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)

 1
28800B - CABLE, BATTERY TO GROUND
82123-20081

3S#,4SFI..ST16#

 1
82123-20080

1SILU,3S#..ST16#

 1
82123-20090

3SGELU..ST162..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)

 1
82123-20091

3SGELU..ST162..4FC

ｱﾘ(ﾊﾞﾂﾃﾘ=55D23L)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12190

3SGELU..ST162

 1
Common parts
90105-08096
90119-06122
90179-08146
