ST162-ATPVF (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

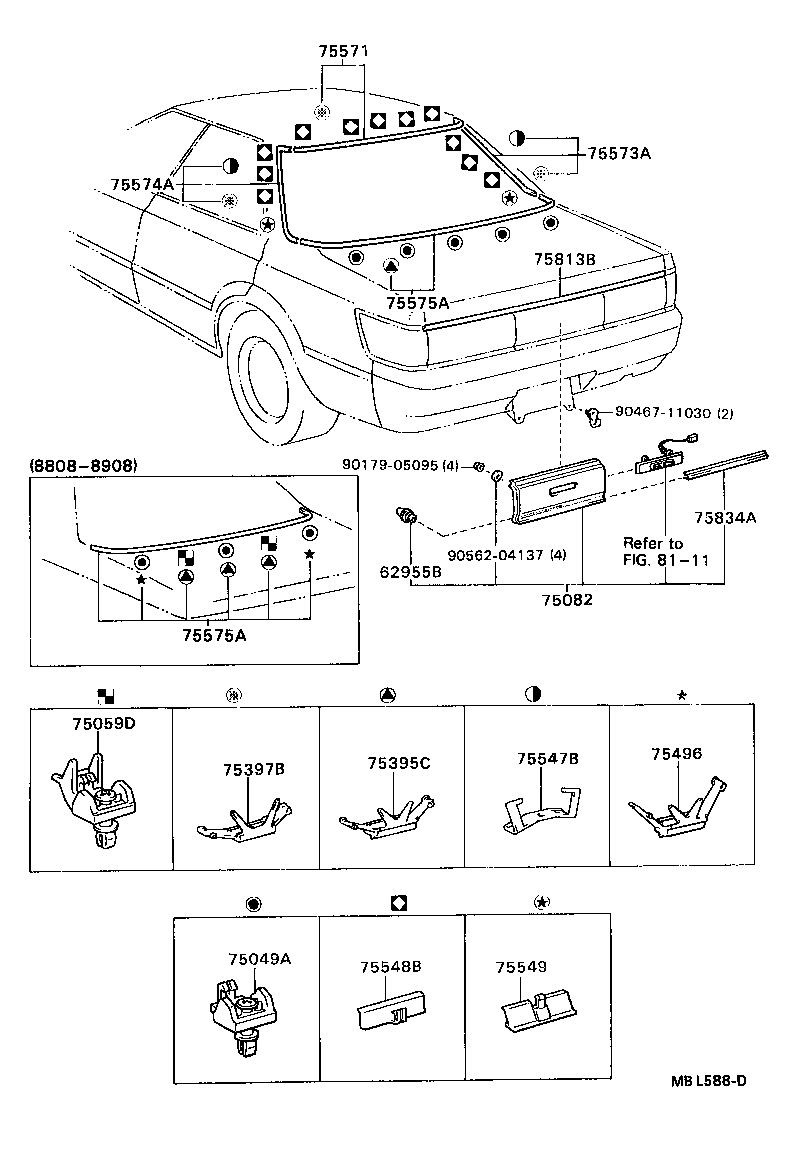

Click highlighted areas on diagram

diagram 62955B 75049A 75059D 75082 75395C 75397B 75496 75547B 75548B 75549 75571 75573A 75574A 75575A 75575A 75813B 75834A 8111 9017905095 9046711030 9056204137
Part # Description Qty Price
62955B - RETAINER, BACK DOOR GARNISH
62955-20040

ST16#

 2
75049A - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
75049-20030

ST16#

 5
75049-20030

ST16#

 3
75059D - CLIP SUB-ASSY, OUTSIDE MOULDING, NO.3
75059-20030

ST16#

 2
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-20180

ST162..G

G LIMITED

 1
75082-20190

ST16#..F,G,L,S

 1
75395C - CLIP, OUTSIDE MOULDING, NO.1
75395-20070

ST16#

 5
75395-20070

ST16#

 3
75397B - CLIP, BACK WINDOW MOULDING, NO.3
75397-20050

ST16#

 2
75496 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75497-20010

ST16#

 2
75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-20030

ST16#

 11
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-20060

ST16#

 11
75549 - FASTENER, BACK WINDOW OUTSIDE MOULDING, NO.2
75549-20100

ST16#

 2
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-20210

ST16#

 1
75573A - MOULDING, BACK WINDOW, OUTSIDE RH
75501-20040

ST16#

 1
75574A - MOULDING, BACK WINDOW, OUTSIDE LH
75502-20020

ST16#

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-20170

ST16#

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-20170

ST16#

 1
75813B - MOULDING, LUGGAGE COMPARTMENT DOOR
75813-20040

ST16#

 1
75834A - MOULDING, LOWER BACK FINISH PANEL
75834-20060

ST16#

 1
Common parts
90179-05095
90467-11030
90562-04137
Linked diagrams
8111
