ST162-ATPVF (1987)
Toyota Carina Ed
Production
Aug 1987
-
Aug 1989
Engine
3SGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

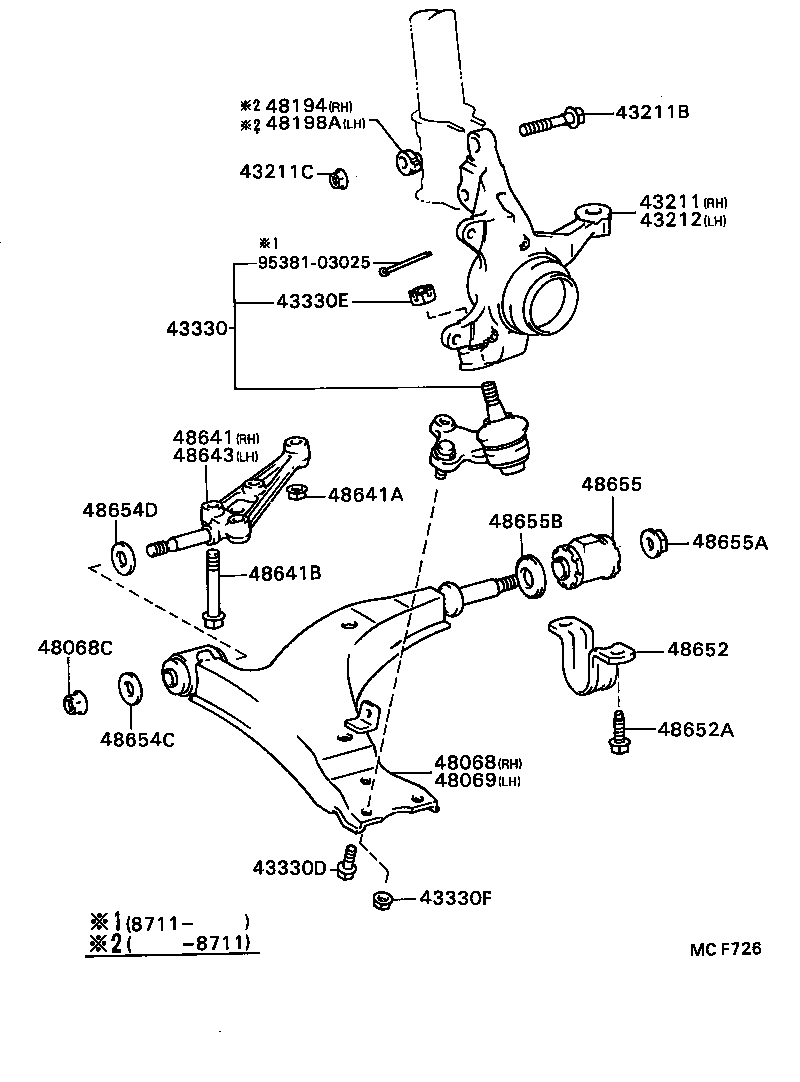

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-20111 |
ST162..S ｱﾘ(ESC) |
1 | ||
| 43211-20110 |
ST162..G ｱﾘ(ESC) |
1 | ||
| 43211-20111 |
ST162..G ｱﾘ(ESC) |
1 | ||
| 43211-20100 |
ST16# |
1 | ||
| 43211-20111 |
ST162..G,X ｱﾘ(ESC) |
1 | ||
| 43211-20101 |
ST16# |
1 | ||
| 43211B - BOLT (FOR ABSORBER SETTING) | ||||
| 90105-15001 |
ST16# |
2 | ||
| 43211C - NUT (FOR ABSORBER SETTING) | ||||
| 90179-15001 |
ST16# |
2 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-20060 |
ST16# |
1 | ||
| 43212-20070 |
ST162..G ｱﾘ(ESC) |
1 | ||
| 43212-20071 |
ST162..G ｱﾘ(ESC) |
1 | ||
| 43212-20061 |
ST16# |
1 | ||
| 43212-20071 |
ST162..G,X ｱﾘ(ESC) |
1 | ||
| 43212-20071 |
ST162..S ｱﾘ(ESC) |
1 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-29145 |
ST16# |
2 | ||
| 43330-29146 |
ST16# |
2 | ||
| 43330D - BOLT (FOR FRONT LOWER BALL JOINT) | ||||
| 90105-12122 |
ST16# |
2 | ||
| 43330E - NUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90171-14003 |
ST16# |
1 | ||
| 90179-14015 |
ST16# |
1 | ||
| 43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING) | ||||
| 90179-12052 |
ST16# |
4 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-20190 |
ST16# |
1 | ||
| 48068C - NUT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90179-16004 |
ST16# |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-20190 |
ST16# |
1 | ||
| 48194 - CAM, CAMBER ADJUST, RH | ||||
| 48194-32020 |
ST16# |
1 | ||
| 48198A - CAM, CAMBER ADJUST, LH | ||||
| 48198-32020 |
ST16# |
1 | ||
| 48641 - SHAFT, LOWER ARM, RH | ||||
| 48641-20060 |
ST16# |
1 | ||
| 48641A - NUT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90179-14007 |
ST16# |
4 | ||
| 48641B - BOLT(FOR SUSPENSION LOWER ARM SHAFT) | ||||
| 90101-14028 |
ST16# *14−1.5PX54−27 |
4 | ||
| 48643 - SHAFT, LOWER ARM, LH | ||||
| 48643-20030 |
ST16# |
1 | ||
| 48652 - BRACKET, FRONT LOWER ARM | ||||
| 48652-20040 |
ST16# |
2 | ||
| 48652A - BOLT(FOR FRONT LOWER ARM BRACKET) | ||||
| 90105-12061 |
ST16# |
4 | ||
| 48654C - RETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO. | ||||
| 90948-02089 |
ST16# |
2 | ||
| 48654D - RETAINER, CUSHION, NO.2(FOR SUSPENSION LWR ARM BUSH NO. | ||||
| 90948-02088 |
ST16# |
2 | ||
| 48655 - BUSH, LOWER ARM, NO.2 | ||||
| 48655-20050 |
ST16# |
2 | ||
| 48655A - NUT(FOR SUSPENSION LOWER ARM BUSH NO.2) | ||||
| 90179-14006 |
ST16# |
2 | ||
| 48655B - RETAINER, CUSHION, NO.1(FOR SUSPENSION LWR ARM BUSH NO. | ||||
| 90948-02090 |
ST16# |
2 | ||
| Common parts | ||||
| 95381-03025 | ||||
