ST162-ATPVF (1985)
Toyota Carina Ed
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

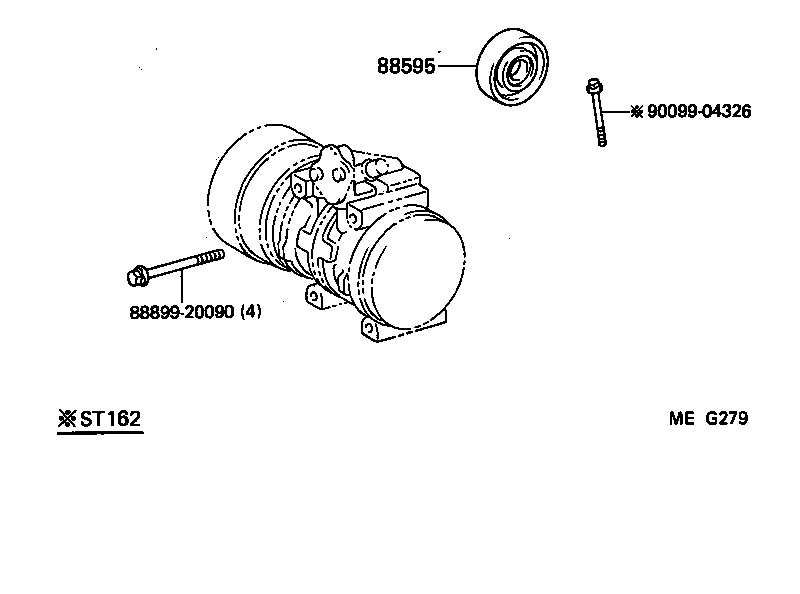

ILLUST NO. 2 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-20110 |
ST162 |
1 | ||
| Common parts | ||||
| 88899-20090 | ||||
| 90099-04326 | ||||

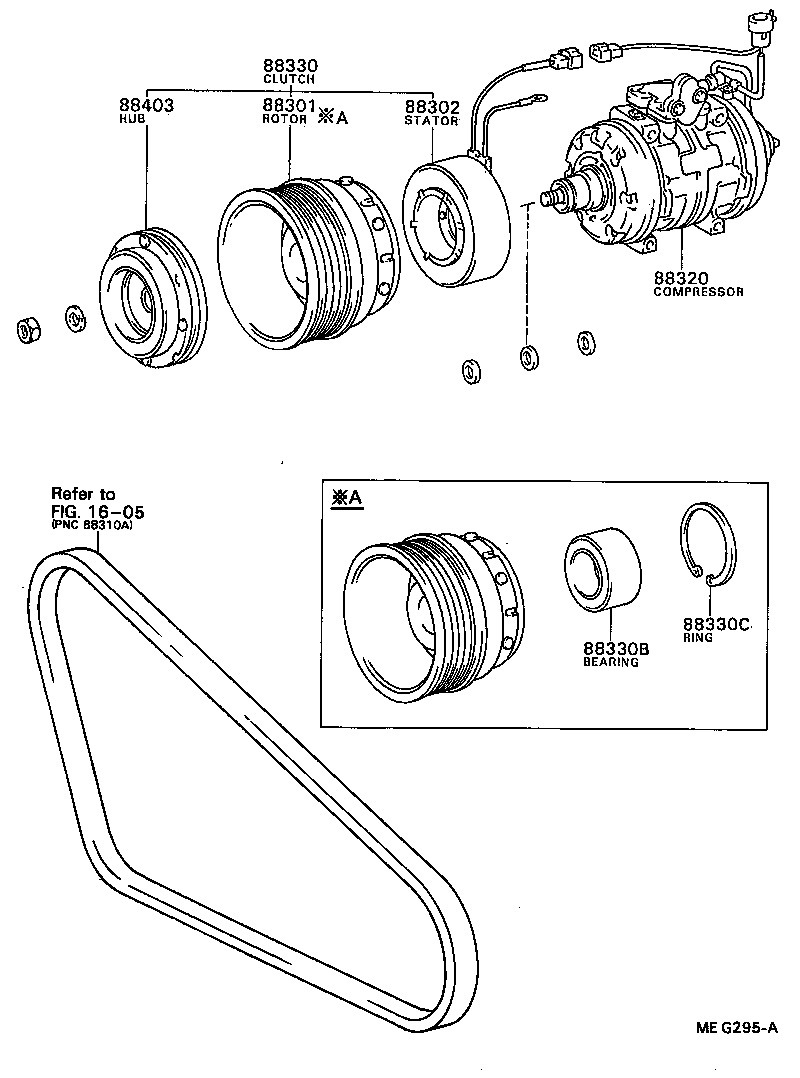

ILLUST NO. 1 OF 2(8508- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-32010 |
ST16# |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-32010 |
ST16# |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20500 |
ST16# |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-32010 |
ST16# |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
ST16# |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07118 |
ST16# |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
ST16# |
1 | ||
| Linked diagrams | ||||
| 1605 | ||||
