ST162-ATPVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

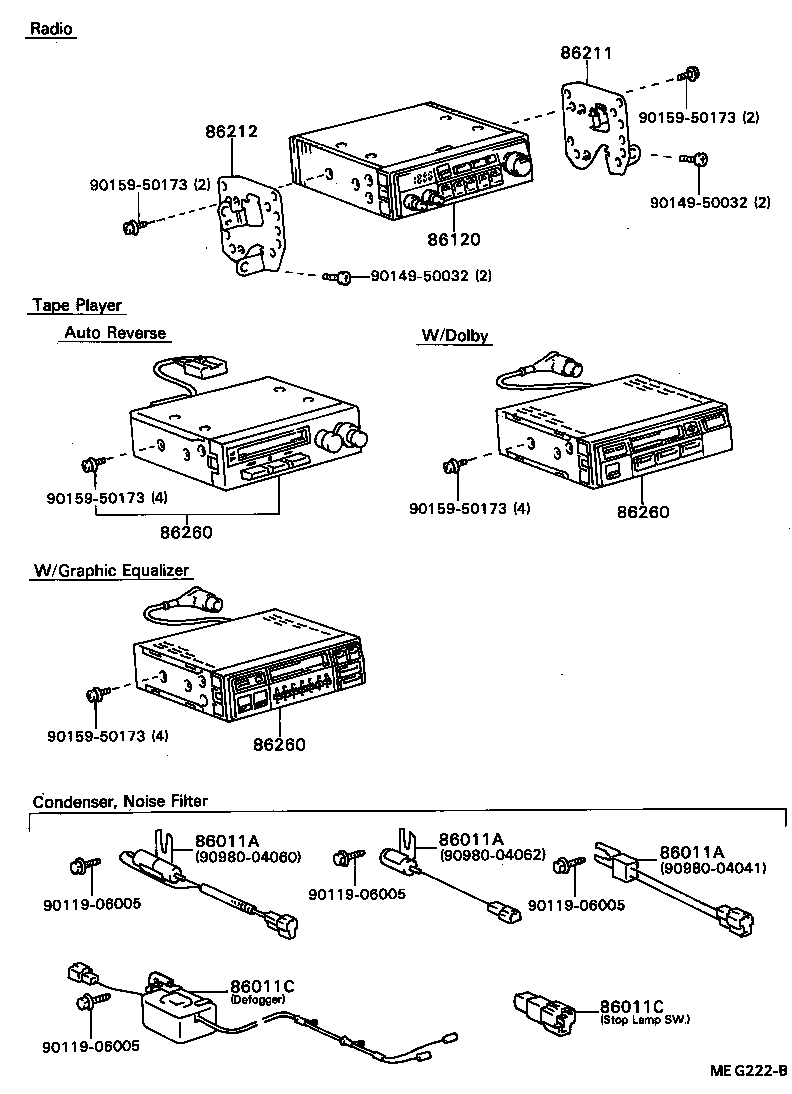

Click highlighted areas on diagram

diagram 86011A 86011A 86011A 86011C 86011C 86120 86211 86212 86260 86260 86260 9011906005 9011906005 9011906005 9011906005 9014950032 9014950032 9015950173 9015950173 9015950173 9015950173 9015950173 9098004041 9098004060 9098004062
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04041

ST162

IG COIL

 1
90980-04060

ST16#..F,G,S,X

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

ST162

IG COIL

 1
90980-04060

ST16#..F,G,S,X

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04041

ST162

IG COIL

 1
90980-04060

ST16#..F,G,S,X

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

ST16#

STOP LAMP SW

 1
90980-05111

ST16#..F,G,S,X

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

ST16#

STOP LAMP SW

 1
90980-05111

ST16#..F,G,S,X

DEFOGGER

 1
86120 - RECEIVER ASSY, RADIO
86120-20570

ST16#..F,G,X

*20

 1
86120-20570

ST16#..F,G,S,X

*20

 1
86120-17020

ST16#..G,L,S

AM/FM MPX 5PB

 1
86120-20360

ST16#..F,G,S,X

*17

 1
86211 - BRACKET, RADIO, NO.1
86211-20150

ST16#

 1
86212 - BRACKET, RADIO, NO.2
86212-20190

ST16#

 1
86260 - TAPE PLAYER ASSY
86260-19055

ST16#..G,L,S

AUTO REVERSE

 1
86260-20150

ST16#..F,G,S,X

W/GRAPHIC EQUALIZER

 1
86260-20140

ST16#..F,G,S

W/DOLBY

 1
86260 - TAPE PLAYER ASSY
86260-19055

ST16#..G,L,S

AUTO REVERSE

 1
86260-20150

ST16#..F,G,S,X

W/GRAPHIC EQUALIZER

 1
86260-20140

ST16#..F,G,S

W/DOLBY

 1
86260 - TAPE PLAYER ASSY
86260-19055

ST16#..G,L,S

AUTO REVERSE

 1
86260-20150

ST16#..F,G,S,X

W/GRAPHIC EQUALIZER

 1
86260-20140

ST16#..F,G,S

W/DOLBY

 1
Common parts
90119-06005
90149-50032
90159-50173
90980-04041
90980-04060
90980-04062
