ST162-ATPVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

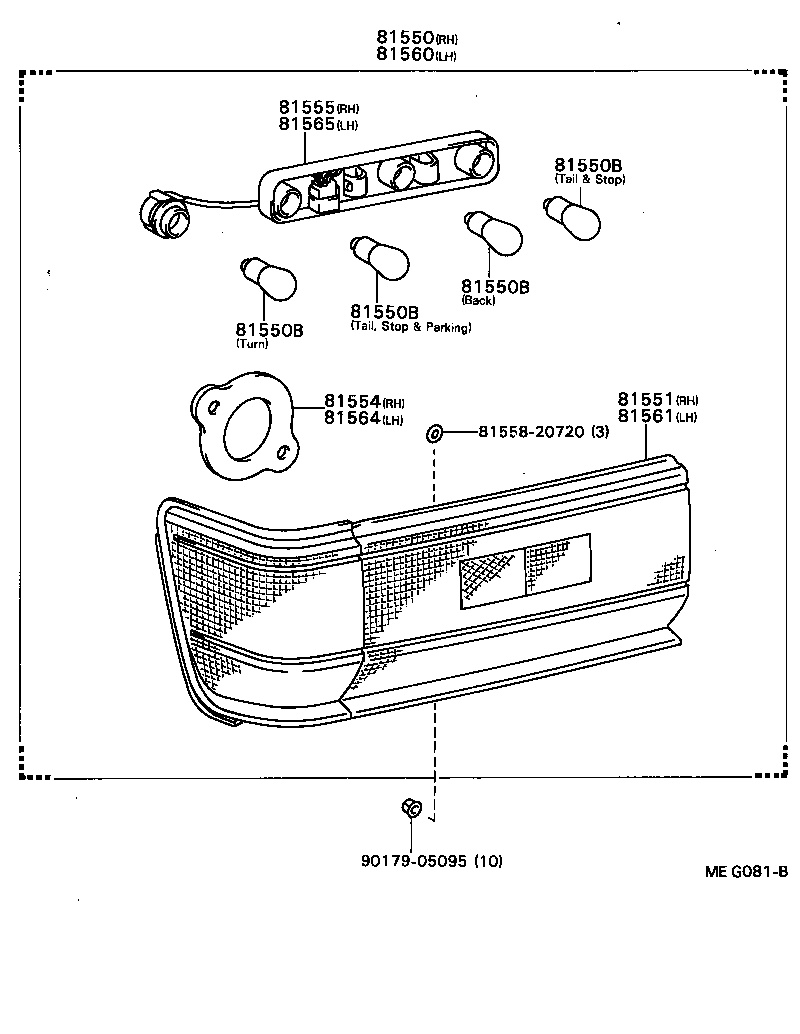

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81550B 81551 81554 81555 8155820720 81560 81561 81564 81565 9017905095
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-20730

ST16#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

ST16#

12V 21/5W,12V 21/5W(TAIL,STOP & PARKING)

 4
99132-11230

ST16#

12V 23W,12V 23W(TURN & BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

ST16#

12V 21/5W,12V 21/5W(TAIL,STOP & PARKING)

 4
99132-11230

ST16#

12V 23W,12V 23W(TURN & BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

ST16#

12V 21/5W,12V 21/5W(TAIL,STOP & PARKING)

 4
99132-11230

ST16#

12V 23W,12V 23W(TURN & BACK)

 4
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

ST16#

12V 21/5W,12V 21/5W(TAIL,STOP & PARKING)

 4
99132-11230

ST16#

12V 23W,12V 23W(TURN & BACK)

 4
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20730

ST16#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-30450

ST16#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20730

ST16#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-20670

ST16#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20670

ST16#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81552-30450

ST16#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-20670

ST16#

 1
Common parts
81558-20720
90179-05095
