ST162-ATPVF (1985)
Toyota Carina Ed
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

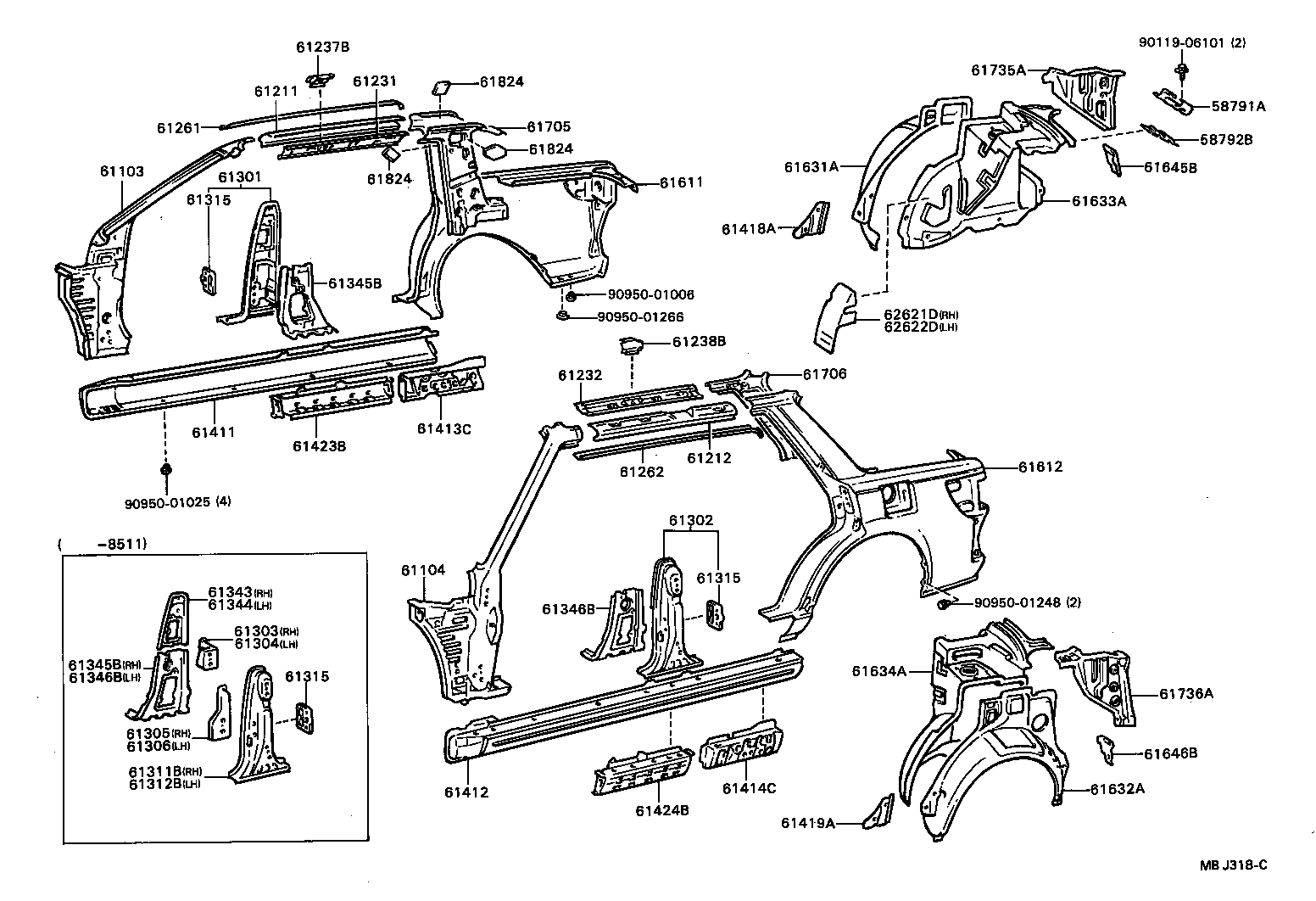

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58791A - CARRIER, JACK | ||||
| 58791-20030 |
ST16# |
1 | ||
| 58792B - SUPPORT, JACK CARRIER | ||||
| 58792-20030 |
ST16# |
1 | ||
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-20400 |
ST16#..F,G,S,X |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-20350 |
ST16# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-20160 |
ST16# W/MOON ROOF |
1 | ||
| 61211-20140 |
ST16# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-20140 |
ST16# |
1 | ||
| 61212-20160 |
ST16# W/MOON ROOF |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-20200 |
ST16# |
1 | ||
| 61231-20230 |
ST16# W/MOON ROOF |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-20220 |
ST16# W/MOON ROOF |
1 | ||
| 61232-20190 |
ST16# |
1 | ||
| 61237B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE RAIL, RH | ||||
| 61237-20130 |
ST16# |
1 | ||
| 61238B - REINFORCEMENT, SEAT BELT ANCHOR TO ROOF SIDE RAIL, LH | ||||
| 61238-20070 |
ST16# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-20060 |
ST16# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-20060 |
ST16# |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-20230 |
ST16# |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-20290 |
ST16# |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-20050 |
ST16# |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-20040 |
ST16# |
1 | ||
| 61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH | ||||
| 61305-20070 |
ST16# |
1 | ||
| 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH | ||||
| 61306-20070 |
ST16# |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-20120 |
ST16# |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-20170 |
ST16# |
1 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
ST16# |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
ST16# |
2 | ||
| 61315 - RETAINER, DOOR LOCK STRIKER PLATE | ||||
| 61315-22020 |
ST16# |
2 | ||
| 61343 - PILLAR, CENTER BODY, INNER UPPER RH | ||||
| 61341-20080 |
ST16# |
1 | ||
| 61344 - PILLAR, CENTER BODY, INNER UPPER LH | ||||
| 61342-20080 |
ST16# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-20030 |
ST16# |
1 | ||
| 61345B - PILLAR, CENTER BODY, INNER LOWER RH | ||||
| 61345-20030 |
ST16# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-20030 |
ST16# |
1 | ||
| 61346B - PILLAR, CENTER BODY, INNER LOWER LH | ||||
| 61346-20030 |
ST16# |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-20230 |
ST16# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-20230 |
ST16# |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-20020 |
ST16# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-20040 |
ST16# |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-20070 |
ST16# |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-20040 |
ST16# |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-20010 |
ST16# |
1 | ||
| 61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH | ||||
| 61424-20010 |
ST16# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2B040 |
ST16# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-20620 |
ST16# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-20160 |
ST16# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-20130 |
ST16# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-20902 |
ST16# |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-20902 |
ST16# |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-20060 |
ST16# |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-20060 |
ST16# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-20110 |
ST16# |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-20100 |
ST16# |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-20050 |
ST16# |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-20050 |
ST16# |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20080 |
ST16# TYPE A |
2 | ||
| 61824-12010 |
ST16# TYPE B |
4 | ||
| 61824-22030 |
ST16# TYPE C |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20080 |
ST16# TYPE A |
2 | ||
| 61824-12010 |
ST16# TYPE B |
4 | ||
| 61824-22030 |
ST16# TYPE C |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-20080 |
ST16# TYPE A |
2 | ||
| 61824-12010 |
ST16# TYPE B |
4 | ||
| 61824-22030 |
ST16# TYPE C |
4 | ||
| 62621D - PAD, QUARTER WHEEL HOUSE, INNER FRONT RH | ||||
| 62621-20010 |
ST16# |
1 | ||
| 62622D - PAD, QUARTER WHEEL HOUSE, INNER FRONT LH | ||||
| 62622-20010 |
ST16# |
1 | ||
| Common parts | ||||
| 90119-06101 | ||||
| 90950-01006 | ||||
| 90950-01025 | ||||
| 90950-01248 | ||||
| 90950-01266 | ||||
