ST162-ATPVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

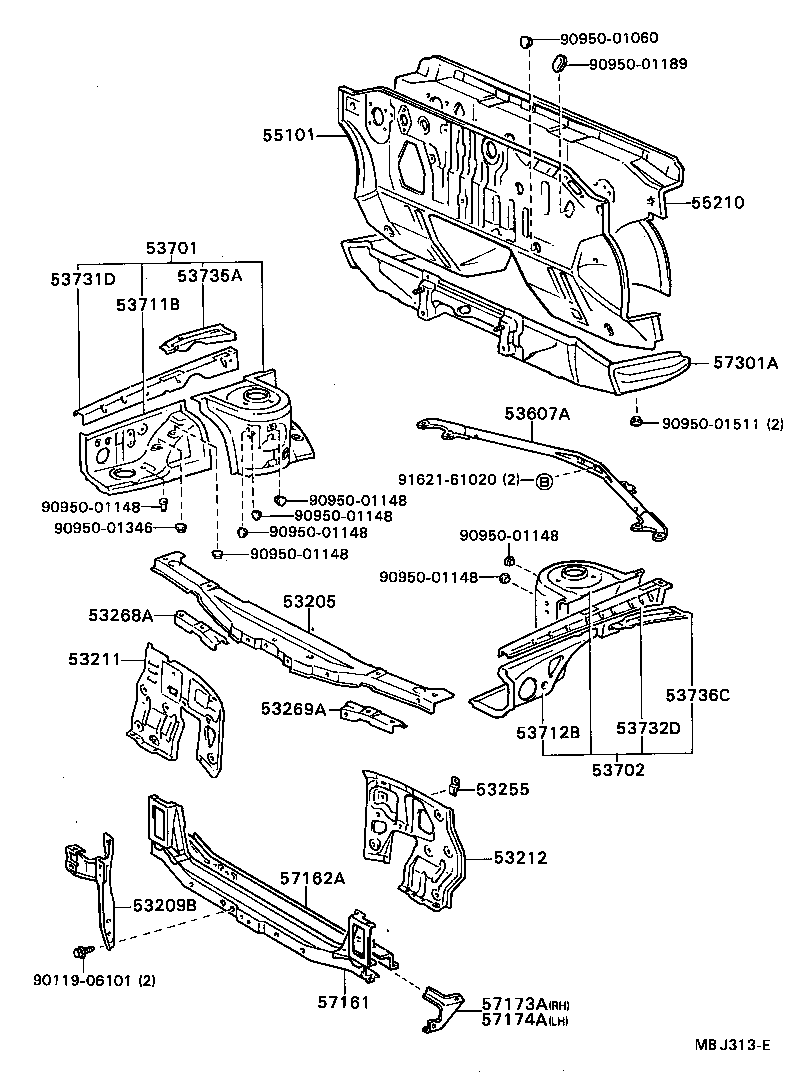

Click highlighted areas on diagram

diagram 53205 53209B 53211 53212 53255 53268A 53269A 53607A 53701 53702 53711B 53712B 53731D 53732D 53735A 53736C 55101 55210 57161 57162A 57173A 57174A 57301A 9011906101 9095001060 9095001148 9095001148 9095001148 9095001148 9095001148 9095001148 9095001148 9095001189 9095001346 9095001511 9162161020
Part # Description Qty Price
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53216-20090

ST16#

 1
53209B - BRACE SUB-ASSY, HOOD LOCK SUPPORT
53209-20080

ST16#

 1
53211 - SUPPORT, RADIATOR, RH
53211-20150

ST16#

 1
53212 - SUPPORT, RADIATOR, LH
53212-20150

ST16#

 1
53255 - BRACKET, RELAY BOX MOUNTING
53255-20010

ST16#

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-20040

ST16#

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-20030

ST16#

 1
53607A - BRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53607-20010

ST162

 1
53607-20020

ST162

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-20540

ST16#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-20570

ST16#

 1
53711B - APRON, FRONT FENDER, FRONT RH
53711-20160

ST16#

 1
53712B - APRON, FRONT FENDER, FRONT LH
53712-20230

ST16#

 1
53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53731-20060

ST16#

 1
53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53732-20060

ST16#

 1
53735A - MEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53735-20040

ST16#

 1
53736C - MEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53736-20050

ST16#

 1
55101 - PANEL SUB-ASSY, DASH
55101-20690

ST16#..4FC

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-20080

ST16#

 1
57161 - CROSSMEMBER, FRONT
57161-20906

ST16#

 1
57162A - MEMBER, FRONT CROSS, REAR
57162-20901

ST16#

 1
57173A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57173-20010

ST16#

 1
57174A - REINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
57174-20010

ST16#

 1
57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
57301-20110

ST16#

 1
57301-20090

ST16#

 1
Common parts
90119-06101
90950-01060
90950-01148
90950-01189
90950-01346
90950-01511
91621-61020
