ST162-ATPGK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

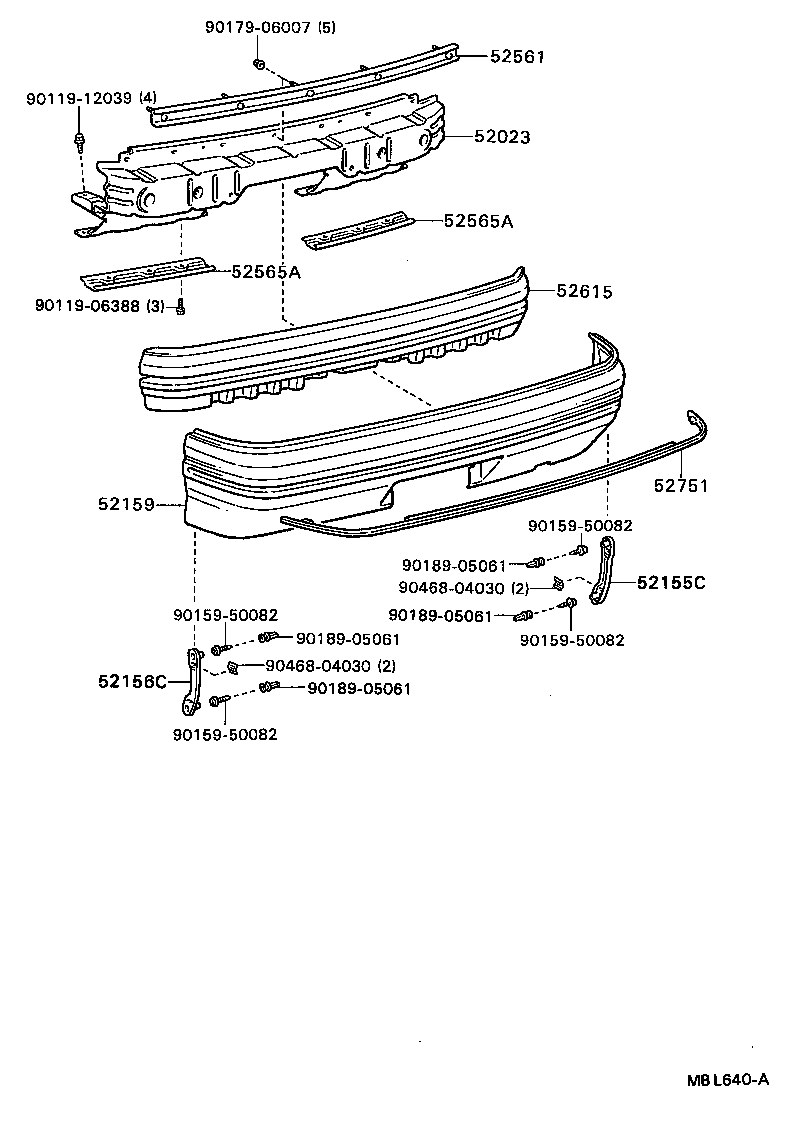

Click highlighted areas on diagram

diagram 52023 52155C 52156C 52159 52561 52565A 52565A 52615 52751 9011906388 9011912039 9015950082 9015950082 9015950082 9015950082 9017906007 9018905061 9018905061 9018905061 9018905061 9046804030 9046804030
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20150

ST16#

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-20120

ST16#

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-20120

ST16#

 1
52159 - COVER, REAR BUMPER
52159-2018007

ST16#

L GREEN M,6J9

 1
52159-2018015

ST16#

BEIGE M,4H9

 1
52159-2018012

ST16#

RED M,3H4

 1
52159-2018018

ST16#

SUPER WHITE 2,040

 1
52159-2018023

ST16#

GRAY M,168

 1
52159-2018004

ST16#

B BLUE MAICA M,8E4

 1
52159-2041003

ST162..X

GRAY M M - BEIGE M,170

 1
52159-2018033

ST16#..F,G,S,X

SILVER M,23E

 1
52159-2041008

ST162..X

S WHT2/BEG,040

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20080

ST16#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20050

ST16#

 2
52565A - RETAINER, REAR BUMPER, LOWER
52565-20050

ST16#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20050

ST16#

 1
52751 - MOULDING, REAR BUMPER
52751-20090

ST16#

 1
Common parts
90119-06388
90119-12039
90159-50082
90179-06007
90189-05061
90468-04030
