ST162-ATPGK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

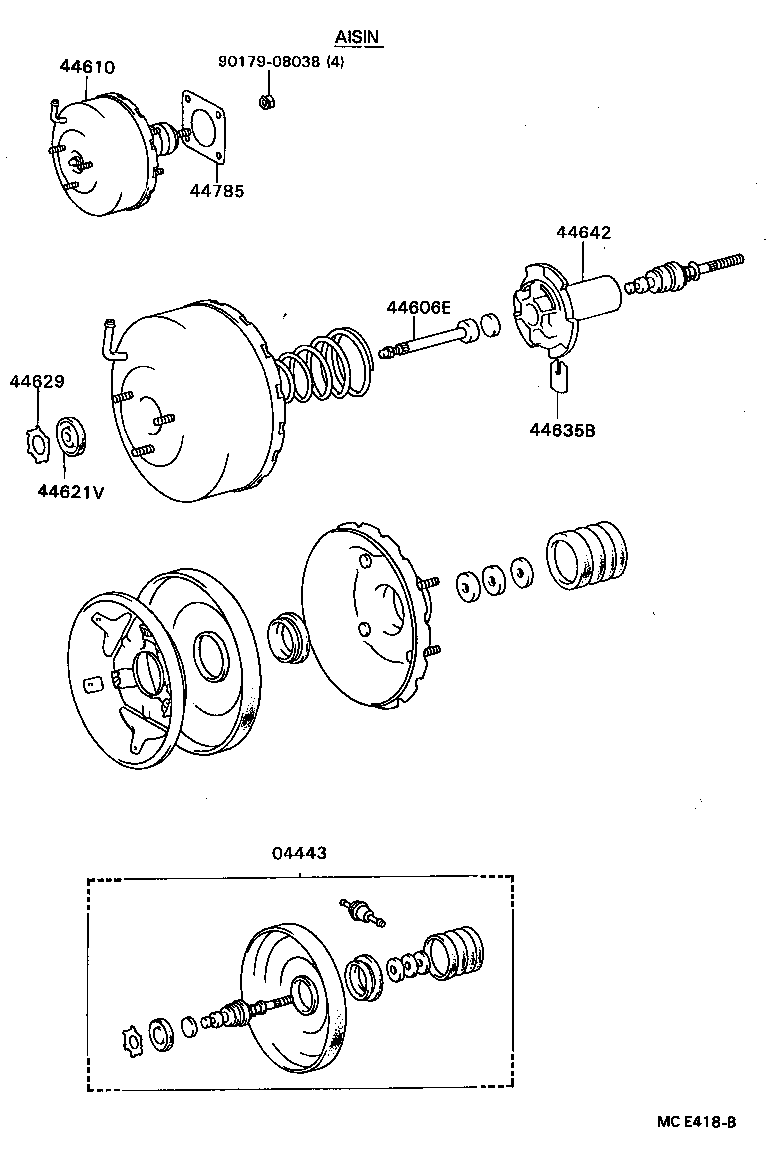

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20640

ST162..G

ｱﾘ(ESC)

 1
04443-20640

ST162

ｱﾘ(ESC)

 1
04443-20800

ST16#

 1
04443-20620

ST16#

JKC

 1
04443-20610

ST16#

AISIN

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

ST16#

 1
44606-20800

ST162..G

ｱﾘ(ESC)

 1
44606-20800

ST162

ｱﾘ(ESC)

 1
44610 - BOOSTER ASSY, BRAKE
44610-20860

ST162

ｱﾘ(ESC)

 1
44610-2B080

ST16#

 1
44610-20860

ST162..G

ｱﾘ(ESC)

 1
44610-2B320

ST16#

 1
44621V - SEAL, BOOSTER BODY
44621-14030

ST162

ｱﾘ(ESC)

 1
44621-28120

ST16#

 1
44621-14030

ST162..G

ｱﾘ(ESC)

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

ST162..G

ｱﾘ(ESC)

 1
44628-60010

ST162

ｱﾘ(ESC)

 1
44628-28120

ST16#

 1
44635B - KEY, VALVE STOPPER
44635-20800

ST162..G

ｱﾘ(ESC)

 1
44635-28120

ST16#

 1
44635-20800

ST162

ｱﾘ(ESC)

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

ST162

ｱﾘ(ESC)

 1
44642-32030

ST16#

 1
44642-20800

ST162..G

ｱﾘ(ESC)

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ST16#

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20640

ST162..G

ｱﾘ(ESC)

 1
04443-20640

ST162

ｱﾘ(ESC)

 1
04443-20800

ST16#

 1
04443-20620

ST16#

JKC

 1
04443-20610

ST16#

AISIN

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

ST16#

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

ST16#

 1
44610 - BOOSTER ASSY, BRAKE
44610-20860

ST162

ｱﾘ(ESC)

 1
44610-2B080

ST16#

 1
44610-20860

ST162..G

ｱﾘ(ESC)

 1
44610-2B320

ST16#

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

ST16#

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

ST16#

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

ST16#

 1
44673A - BODY, BOOSTER VALVE
44673-32040

ST16#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ST16#

 1
Common parts
90179-08038

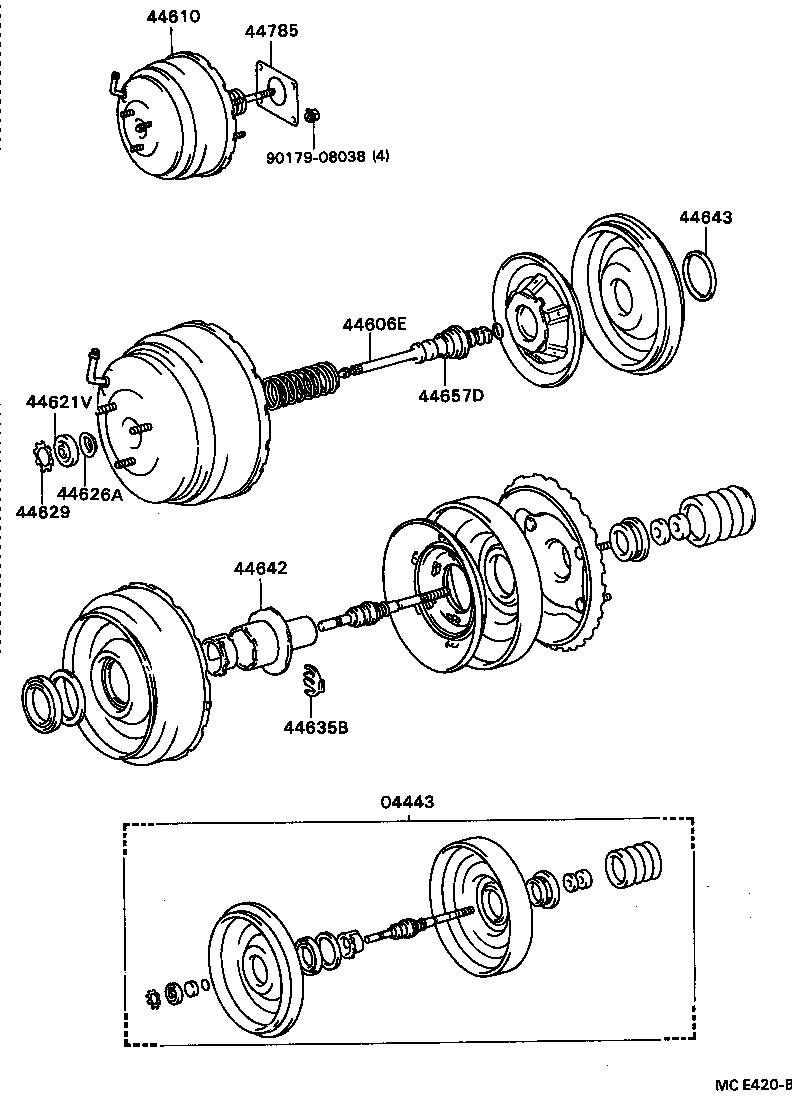

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

ｱﾘ(ESC)

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20640

ST162..G

ｱﾘ(ESC)

 1
04443-20640

ST162

ｱﾘ(ESC)

 1
04443-20800

ST16#

 1
04443-20620

ST16#

JKC

 1
04443-20610

ST16#

AISIN

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

ST16#

 1
44606-20800

ST162..G

ｱﾘ(ESC)

 1
44606-20800

ST162

ｱﾘ(ESC)

 1
44610 - BOOSTER ASSY, BRAKE
44610-20860

ST162

ｱﾘ(ESC)

 1
44610-2B080

ST16#

 1
44610-20860

ST162..G

ｱﾘ(ESC)

 1
44610-2B320

ST16#

 1
44621V - SEAL, BOOSTER BODY
44621-14030

ST162

ｱﾘ(ESC)

 1
44621-28120

ST16#

 1
44621-14030

ST162..G

ｱﾘ(ESC)

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

ST162..G

 1
44626-60010

ST162

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

ST162..G

ｱﾘ(ESC)

 1
44628-60010

ST162

ｱﾘ(ESC)

 1
44628-28120

ST16#

 1
44635B - KEY, VALVE STOPPER
44635-20800

ST162..G

ｱﾘ(ESC)

 1
44635-28120

ST16#

 1
44635-20800

ST162

ｱﾘ(ESC)

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

ST162

ｱﾘ(ESC)

 1
44642-32030

ST16#

 1
44642-20800

ST162..G

ｱﾘ(ESC)

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

ST162

 1
44643-20800

ST162..G

 1
44657D - CASE, REACTION DISC
44657-22630

ST162

 1
44657-22630

ST162..G

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

ST16#

 1
Common parts
90179-08038

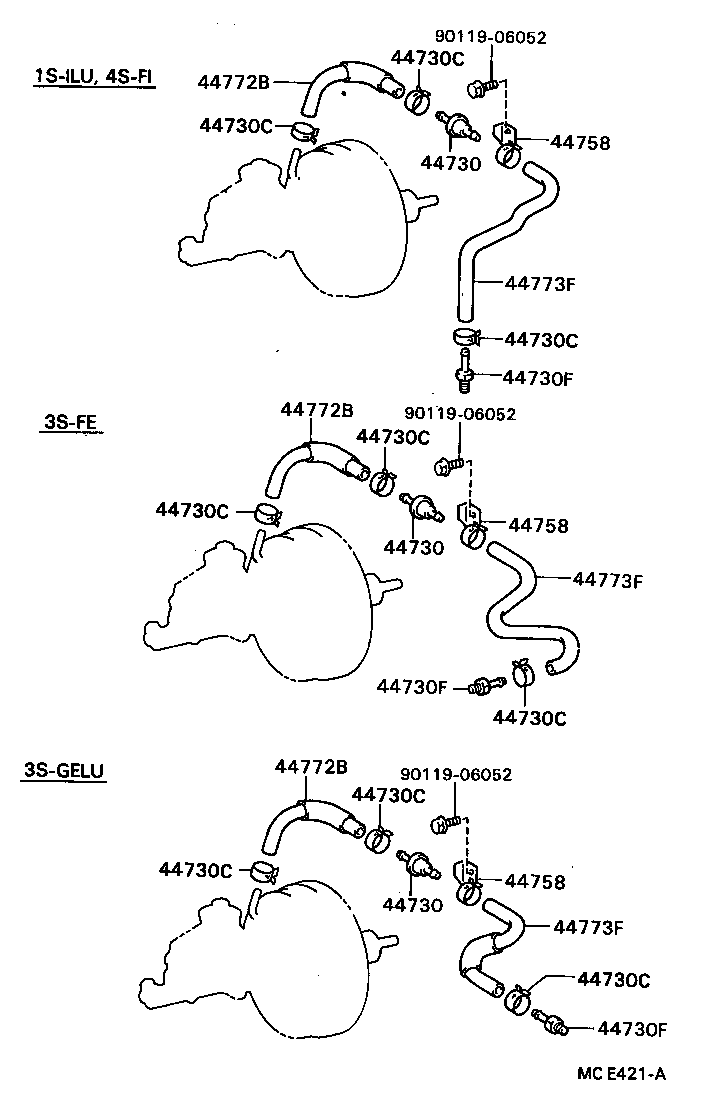

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 44730 44730 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44730F 44730F 44758 44758 44758 44772B 44772B 44772B 44773F 44773F 44773F 9011906052 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ST16#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ST16#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

ST16#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

ST16#

 3
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

ST162

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20190

ST162..G

ｱﾘ(ESC)

 1
44758-20141

ST16#

 1
44758-20190

ST162

ｱﾘ(ESC)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20190

ST162..G

ｱﾘ(ESC)

 1
44758-20141

ST16#

 1
44758-20190

ST162

ｱﾘ(ESC)

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-20190

ST162..G

ｱﾘ(ESC)

 1
44758-20141

ST16#

 1
44758-20190

ST162

ｱﾘ(ESC)

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20190

ST162..G

ｱﾘ(ESC)

 1
44772-20190

ST162

ｱﾘ(ESC)

 1
44772-20180

ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20190

ST162..G

ｱﾘ(ESC)

 1
44772-20190

ST162

ｱﾘ(ESC)

 1
44772-20180

ST16#

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20190

ST162..G

ｱﾘ(ESC)

 1
44772-20190

ST162

ｱﾘ(ESC)

 1
44772-20180

ST16#

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162..G

 1
44773-20461

ST162..S,X

 1
44773-20460

ST162..S,X

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162..G

 1
44773-20461

ST162..S,X

 1
44773-20460

ST162..S,X

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-20440

ST162..G

 1
44773-20461

ST162..S,X

 1
44773-20460

ST162..S,X

 1
Common parts
90119-06052
