ST162-ATPGK (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )3SFE,4SFI

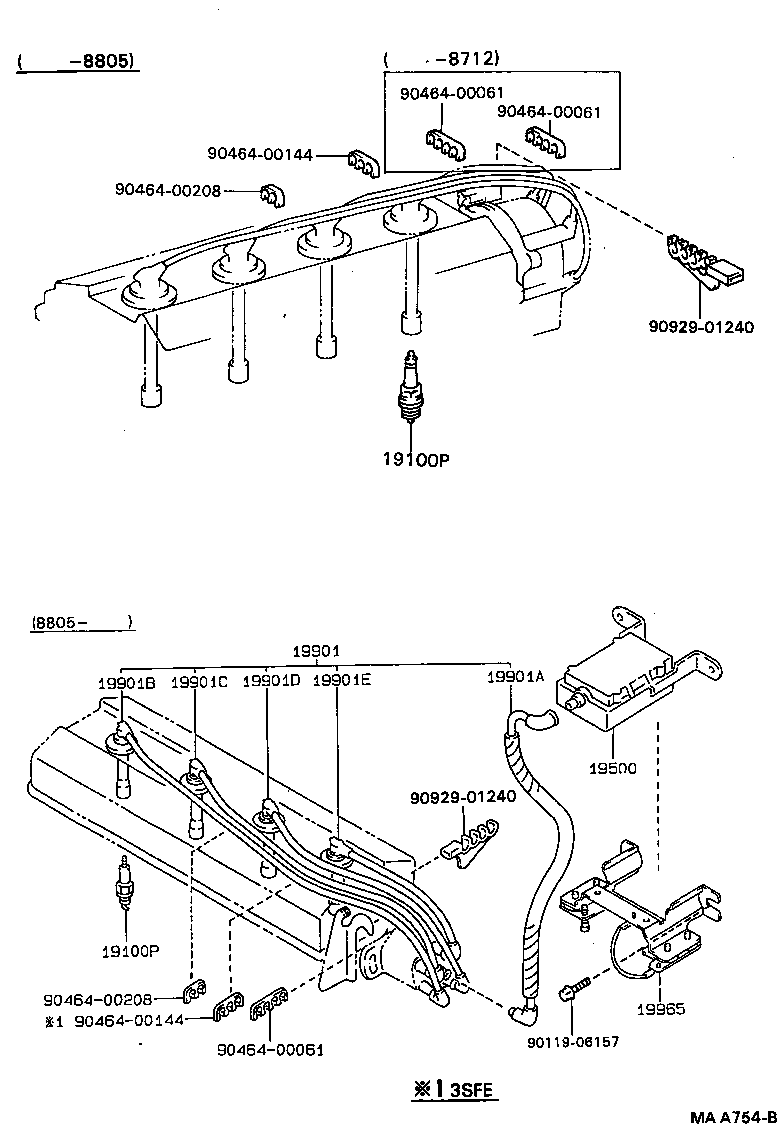

Click highlighted areas on diagram

diagram 19100P 19100P 19500 19901 19901A 19901B 19901C 19901D 19901E 19965 9011906157 9046400061 9046400061 9046400061 9046400144 9046400144 9046400208 9046400208 9092901240 9092901240
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01129

3SFE..ST162

Q16R−U11

 4
19100P - PLUG, SPARK
90919-01129

3SFE..ST162

Q16R−U11

 4
19500 - COIL ASSY, IGNITION
90919-02175

3SFE,4SFI..ST16#

 1
90919-02175

3SFE,4SFI..ST16#

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21516

3SFE..ST162

 1
19901A - CORD, COIL RESISTIVE
90919-13317

3SFE,4SFI..ST16#

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12820

3SFE..ST162

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12819

3SFE..ST162

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12818

3SFE..ST162

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12817

3SFE..ST162

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03113

3SFE,4SFI..ST16#

 1
90919-03113

3SFE,4SFI..ST16#

 1
Common parts
90119-06157
90464-00061
90464-00144
90464-00208
90929-01240
