ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

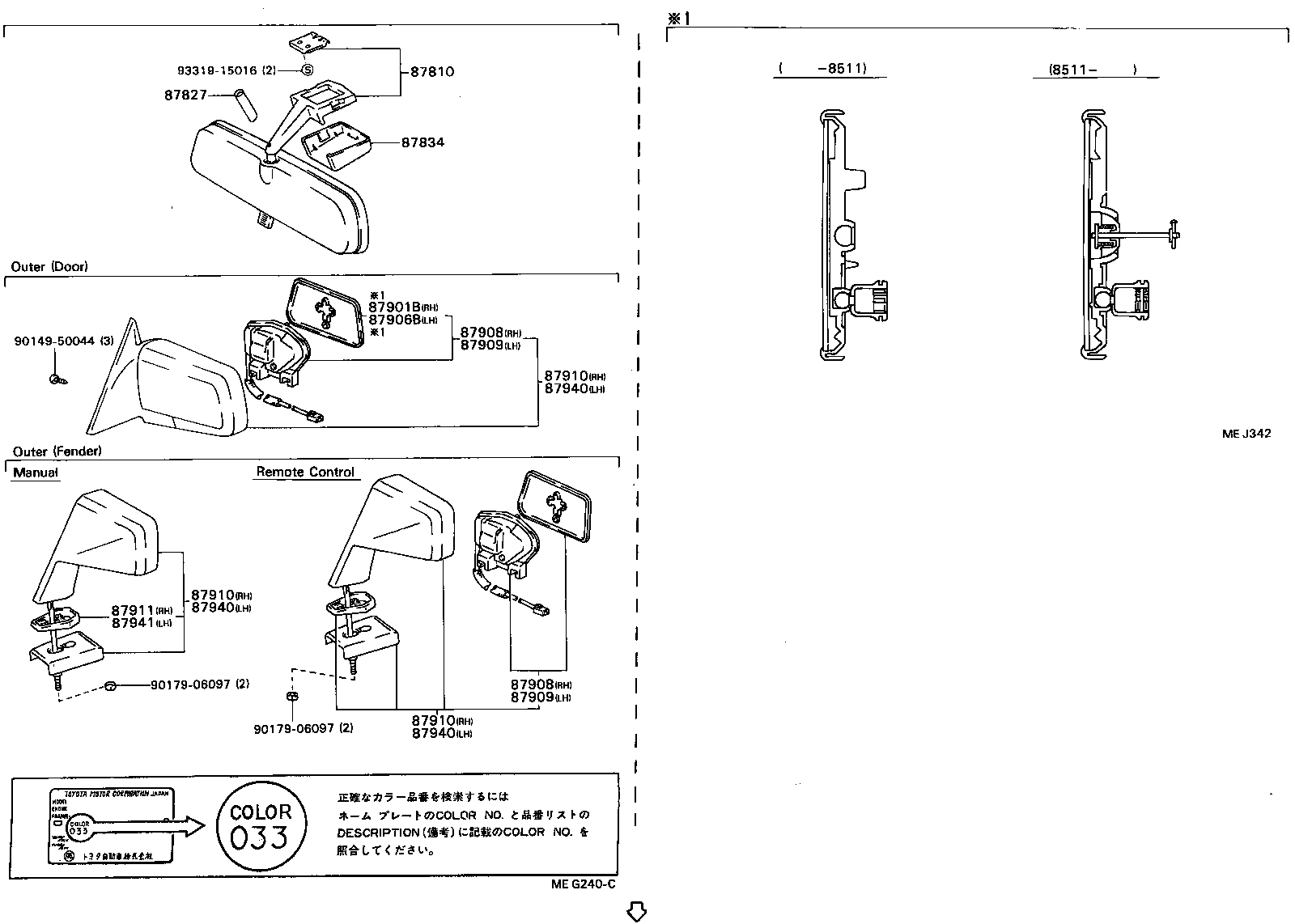

Click highlighted areas on diagram

diagram 87810 87827 87834 87901B 87906B 87908 87908 87909 87909 87910 87910 87910 87911 87940 87940 87940 87941 9014950044 9017906097 9017906097 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-2020003

ST16#

SHADOW GRAY,GRAY,TRIM1#

 1
87810-2020006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-22020

ST16#

L=34.5

 1
87828-87002

ST16#

L=32

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-2008053

ST16#

SHADOW GRAY,SHADOW GRAY,TRIM1#

 1
87834-2008006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-20400

ST16#

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-20580

ST16#

 1
87961-20420

ST16#

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87908-12080

ST16#

FENDER,*RCM

 1
87908-20400

ST16#

DOOR

 1
87908 - ACTUATOR ASSY, OUTER MIRROR, RH
87908-12080

ST16#

FENDER,*RCM

 1
87908-20400

ST16#

DOOR

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87909-20420

ST16#

DOOR

 1
87909-12070

ST16#

FENDER,*RCM

 1
87909 - ACTUATOR ASSY, OUTER MIRROR, LH
87909-20420

ST16#

DOOR

 1
87909-12070

ST16#

FENDER,*RCM

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-20400

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-20720

ST16#

FENDER

 1
87910-20401

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-2079008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87910-2079005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87910-20400

ST16#

DOOR

 1
87910-2079003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87910-20780

ST16#

FENDER,*RCM

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-20400

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-20720

ST16#

FENDER

 1
87910-20401

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-2079008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87910-2079005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87910-20400

ST16#

DOOR

 1
87910-2079003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87910-20780

ST16#

FENDER,*RCM

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-20400

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-20720

ST16#

FENDER

 1
87910-20401

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87910-2079008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87910-2079005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87910-20400

ST16#

DOOR

 1
87910-2079003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87910-20780

ST16#

FENDER,*RCM

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87911-20150

ST16#

 1
87911-20160

ST16#

FENDER,*RCM

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20420

ST16#

DOOR

 1
87940-2085005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87940-20840

ST16#

FENDER,*RCM

 1
87940-20780

ST16#

FENDER

 1
87940-20420

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87940-2085008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87940-2085003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20420

ST16#

DOOR

 1
87940-2085005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87940-20840

ST16#

FENDER,*RCM

 1
87940-20780

ST16#

FENDER

 1
87940-20420

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87940-2085008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87940-2085003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-20420

ST16#

DOOR

 1
87940-2085005

ST16#..F,G,S,X

DOOR,LIGHT BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
87940-20840

ST16#

FENDER,*RCM

 1
87940-20780

ST16#

FENDER

 1
87940-20420

ST16#

DOOR,BLACK(160,3G7,4G3)

 1
87940-2085008

ST16#

DOOR,SUPER WHITE,SUPER WHITE,040

 1
87940-2085003

ST16#

DOOR,GREENISH SILVER-M,GREENISH SILVER M,154

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87941-20170

ST16#

 1
87941-20180

ST16#

FENDER,*RCM

 1
Common parts
90149-50044
90179-06097
93319-15016
