ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

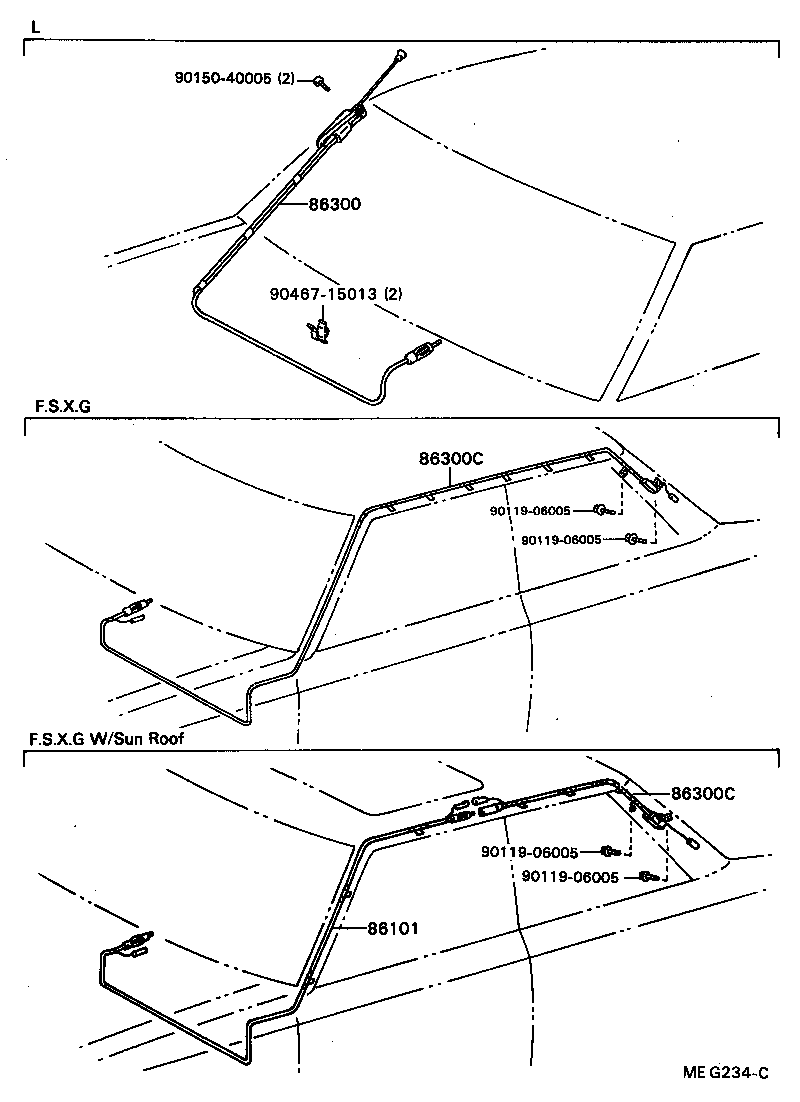

Click highlighted areas on diagram

diagram 86101 86300 86300C 86300C 9011906005 9011906005 9011906005 9011906005 9015040005 9046715013
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-20220

ST16#..F,G,S,X

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20470

ST16#..F,G,S,X

W/SUN ROOF

 1
86300-20230

ST16#..F,G,S,X

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-20470

ST16#..F,G,S,X

W/SUN ROOF

 1
86300-20230

ST16#..F,G,S,X

 1
Common parts
90119-06005
90150-40005
90467-15013
