ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

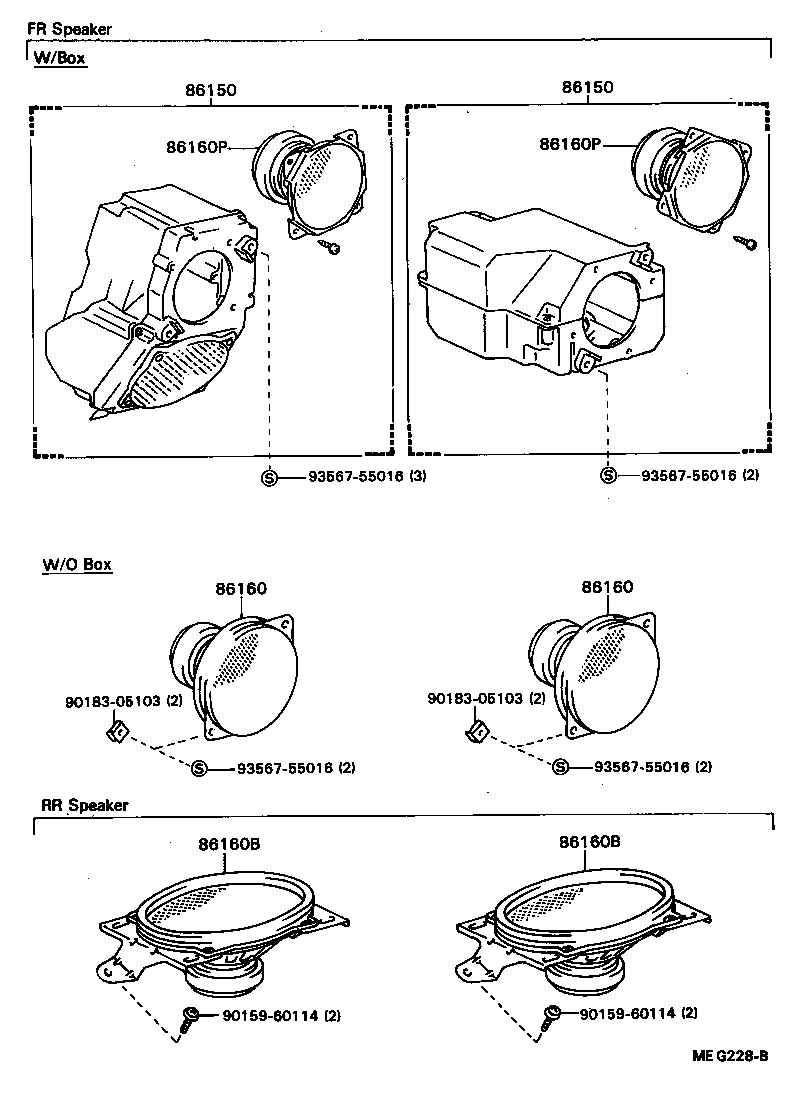

Click highlighted areas on diagram

diagram 86150 86150 86160 86160 86160B 86160B 86160P 86160P 9015960114 9015960114 9018305103 9018305103 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20050

ST16#..F,G,S,X

RH

 1
86150-20060

ST16#..F,G,S,X

LH

 1
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-20050

ST16#..F,G,S,X

RH

 1
86150-20060

ST16#..F,G,S,X

LH

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-20240

ST16#..G,L,S

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20240

ST16#..G,L,S

 2
86160B - SPEAKER ASSY, REAR
86160-20250

ST16#..F,G,S,X

 2
86160B - SPEAKER ASSY, REAR
86160-20250

ST16#..F,G,S,X

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-20280

ST16#..F,G,S,X

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-20280

ST16#..F,G,S,X

 2
Common parts
90159-60114
90183-05103
93567-55016
