ST162-ATMVF (1985)
Toyota Carina Ed
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )F,L

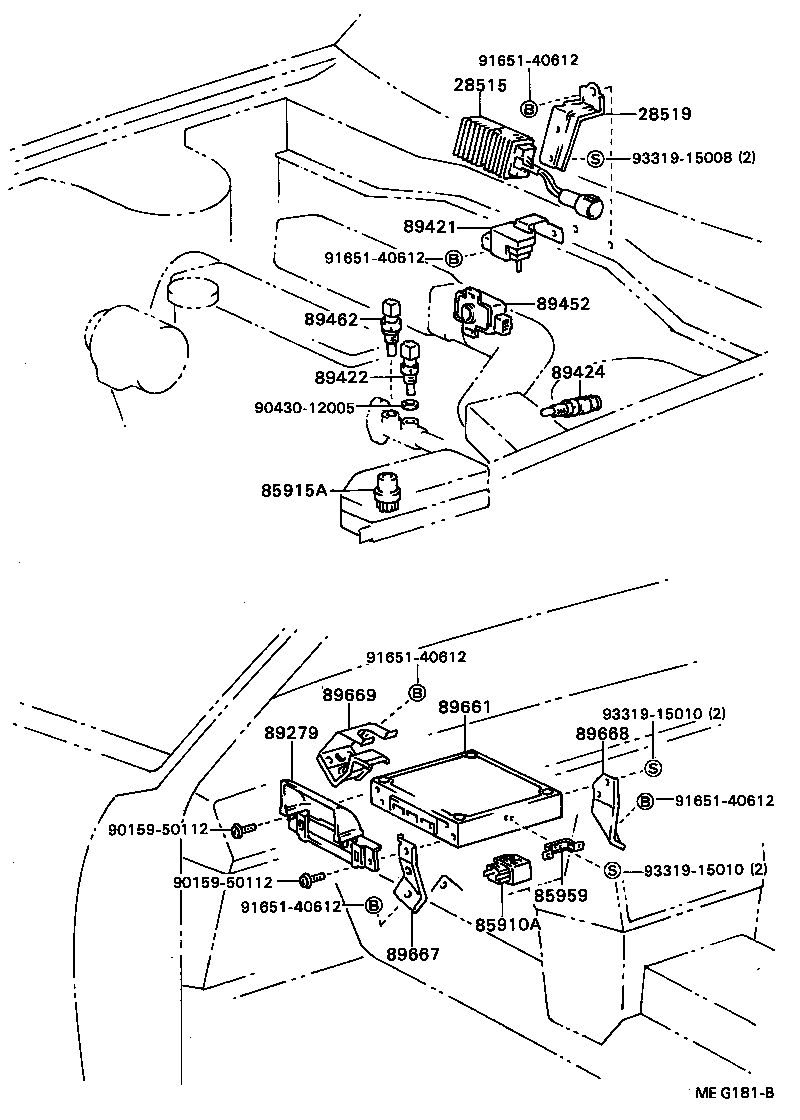

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
ST16# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
ST16# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20040 |
ST16# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32040 |
ST162 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
ST16# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20050 |
ST162 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
ST16# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20150 |
ST162 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20060 |
ST162 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20040 |
ST16# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
(8508- )ST162
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
ST16# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
ST16# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20040 |
ST16# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32040 |
ST162 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
ST16# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20050 |
ST162 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
ST16# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20150 |
ST162 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20060 |
ST162 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20040 |
ST16# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15010 | ||||
(8508- )S,X
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 85910-30050 |
ST16# |
1 | ||
| 85915A - RELAY, MAIN | ||||
| 90987-02004 |
ST16# |
1 | ||
| 85959 - HOLDER, RELAY | ||||
| 85959-20040 |
ST16# |
1 | ||
| 89279 - COVER, ENGINE CONTROL COMPUTER | ||||
| 89279-32040 |
ST162 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-30020 |
ST16# |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-20050 |
ST162 |
1 | ||
| 89462 - SWITCH, START INJECTOR TIME | ||||
| 89462-40010 |
ST16# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-20150 |
ST162 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-20060 |
ST162 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-20040 |
ST16# |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-20030 |
ST16# |
1 | ||
| Common parts | ||||
| 90159-50112 | ||||
| 90430-12005 | ||||
| 91651-40612 | ||||
| 93319-15008 | ||||
| 93319-15010 | ||||
