ST162-ATMVF (1985)
Toyota Carina Ed
ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
ST16# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-20610 |
ST16# |
1 | ||
| 83710-20620 |
ST16#..G,X W/AUTO DRIVE |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-20521 |
ST16# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-20580 |
ST16# |
1 | ||
| Common parts | ||||
| 90463-13003 | ||||
| Linked diagrams | ||||
| 8408 | ||||

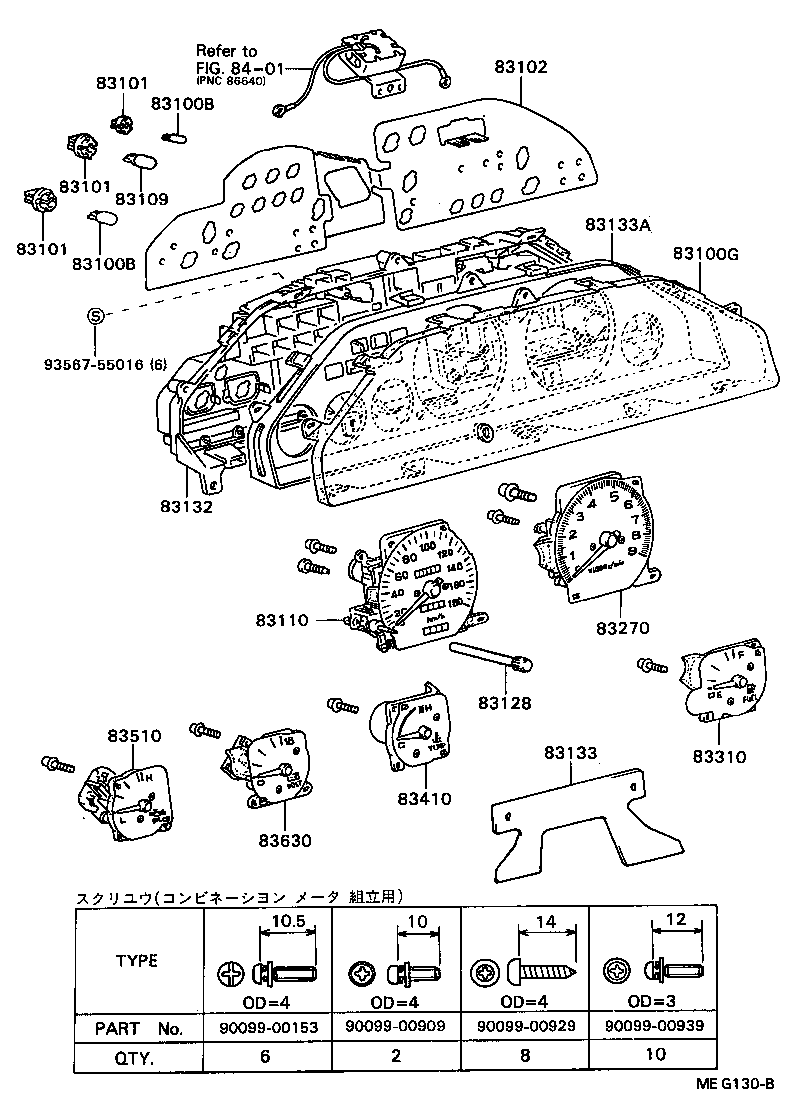

ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11038 |
ST16#..F,G,X 12V 5W,12V 5W,W/*DS |
4 | ||
| 99132-12034 |
ST16# 12V 3.4W,12V 3.4W |
5 | ||
| 90981-11018 |
ST16# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11038 |
ST16#..F,G,X 12V 5W,12V 5W,W/*DS |
4 | ||
| 99132-12034 |
ST16# 12V 3.4W,12V 3.4W |
5 | ||
| 90981-11018 |
ST16# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-1B090 |
ST16# |
1 | ||
| 83138-1B110 |
ST16#..F,G,X W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1D670 |
ST162..5F |
1 | ||
| 83247-1D730 |
ST16#..5F..(F,G,X) W/*DS |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
ST16# 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24040 |
ST16#..F,G,X 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP,W/*DS |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-20830 |
ST16#..G,S,X |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14650 |
ST16#..G,S,X |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D810 |
ST16#..F,G,X W/*DS |
1 | ||
| 83132-1D770 |
ST162..5F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B510 |
ST16# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-1B370 |
ST162..5F |
1 | ||
| 83133-1B390 |
ST16#..5F..(F,G,X) W/*DS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-14910 |
ST162..5F |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-14690 |
ST16# |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1B090 |
ST16# |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83246-14630 |
ST16#..G,S,X |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83251-14610 |
ST16#..G,S,X |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11038 |
ST16#..F,G,X 12V 5W,12V 5W,W/*DS |
4 | ||
| 99132-12034 |
ST16# 12V 3.4W,12V 3.4W |
5 | ||
| 90981-11018 |
ST16# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11038 |
ST16#..F,G,X 12V 5W,12V 5W,W/*DS |
4 | ||
| 99132-12034 |
ST16# 12V 3.4W,12V 3.4W |
5 | ||
| 90981-11018 |
ST16# 12V 1.2W ｿｹｯﾄ無し,12V 1.4W |
11 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-1B090 |
ST16# |
1 | ||
| 83138-1B110 |
ST16#..F,G,X W/*DS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
ST16# BULB;12V 1.4W |
15 | ||
| 83101-14030 |
ST16# BULB;12V 3.4W |
9 | ||
| 83101-20090 |
ST16#..F,G,X BULB;12V 5W,W/*DS |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1D670 |
ST162..5F |
1 | ||
| 83247-1D730 |
ST16#..5F..(F,G,X) W/*DS |
1 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1D710 |
ST16#..F,G,X |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-24020 |
ST16# 12V 3.4W ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP |
4 | ||
| 83109-24040 |
ST16#..F,G,X 12V 1.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 1.4W,W/GREEN CAP,W/*DS |
4 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-14250 |
ST16#..F,G,X |
1 | ||
| 83129 - WIRE, METER | ||||
| 83129-14190 |
ST16#..F,G,X |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-1J450 |
ST162..5F |
1 | ||
| 83131A - DIAL, METER, NO.2 | ||||
| 83131-1J510 |
ST162..5F |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1D810 |
ST16#..F,G,X W/*DS |
1 | ||
| 83132-1D770 |
ST162..5F |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-1B510 |
ST16# |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-1B370 |
ST162..5F |
1 | ||
| 83133-1B390 |
ST16#..5F..(F,G,X) W/*DS |
1 | ||
| 83133B - PLATE, COMBINATION METER, NO.3 | ||||
| 83133-1B410 |
ST16#..F,G,X |
1 | ||
| 83133C - PLATE, COMBINATION METER,NO.4 | ||||
| 83133-1B450 |
ST16#..F,G,X |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-20150 |
ST162..5F |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
