ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

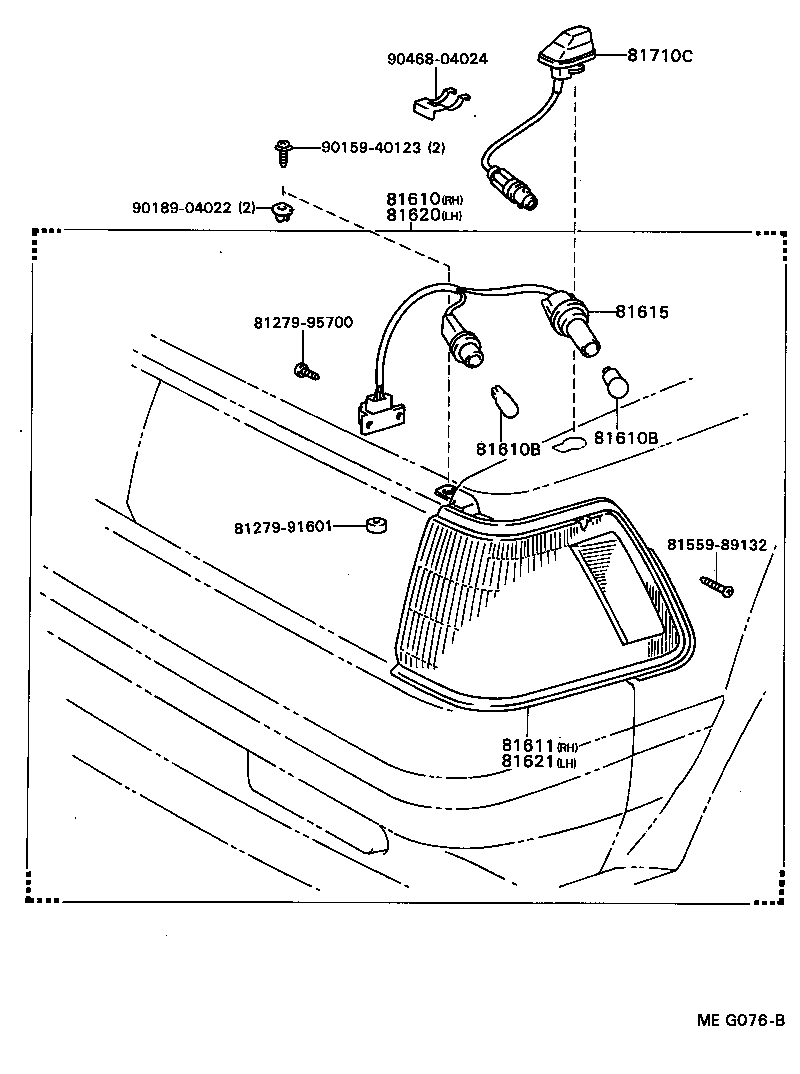

Click highlighted areas on diagram

diagram 8127991601 8127995700 8155989132 81610 81610B 81610B 81611 81615 81620 81621 81710C 9015940123 9018904022 9046804024
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-20220

ST16#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

ST16#

12V 35/5W,12V 35/5W(CORNERING&CLEARANCE)

 2
99132-12050

ST16#

12V 5W,12V 5W(SIDE TURN)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

ST16#

12V 35/5W,12V 35/5W(CORNERING&CLEARANCE)

 2
99132-12050

ST16#

12V 5W,12V 5W(SIDE TURN)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-20250

ST16#

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-20220

ST16#

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-20220

ST16#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-20250

ST16#

 1
81710C - MARKER ASSY, FENDER
81710-24010

ST16#

 2
Common parts
81279-91601
81279-95700
81559-89132
90159-40123
90189-04022
90468-04024
