ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

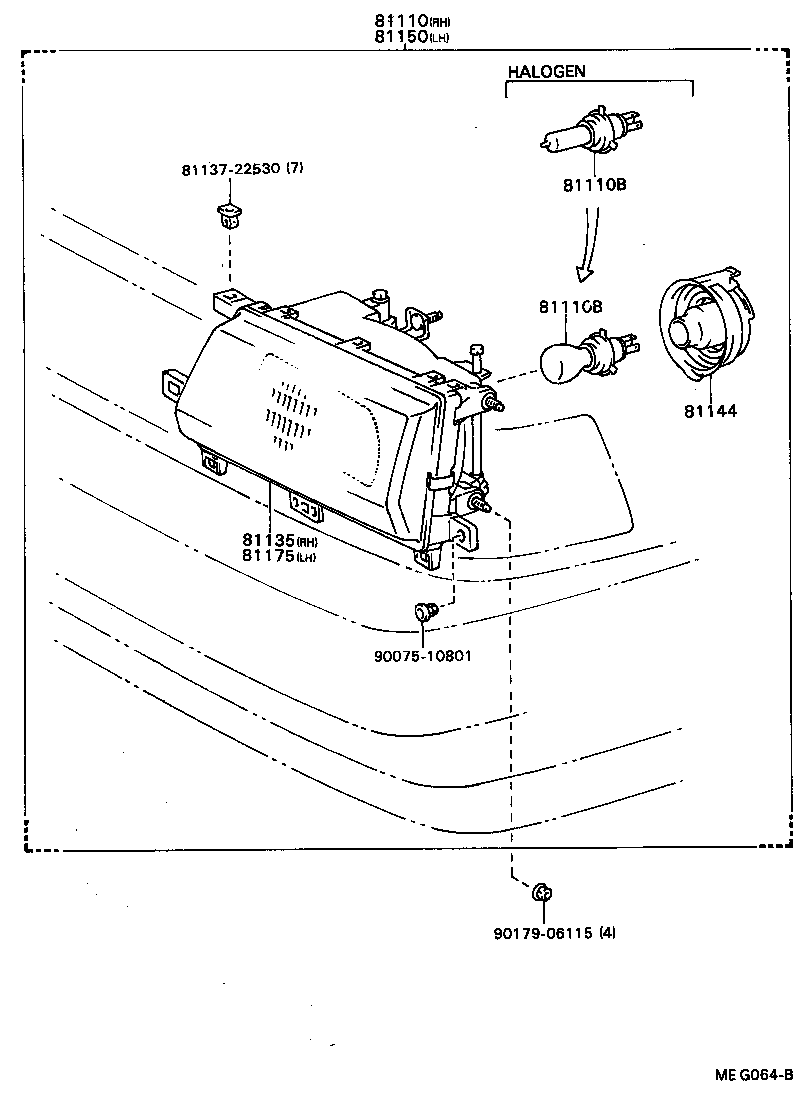

Click highlighted areas on diagram

diagram 81110 81110B 81110B 81135 8113722530 81144 81150 81175 9007510801 9017906115
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-2B100

ST16#

HALOGEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

ST16#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13015

ST16#

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-2B100

ST16#

HALOGEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-20730

ST16#

 2
81150 - HEADLAMP ASSY, LH
81150-2B060

ST16#

HALOGEN

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-2B060

ST16#

HALOGEN

 1
Common parts
81137-22530
90075-10801
90179-06115
