ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

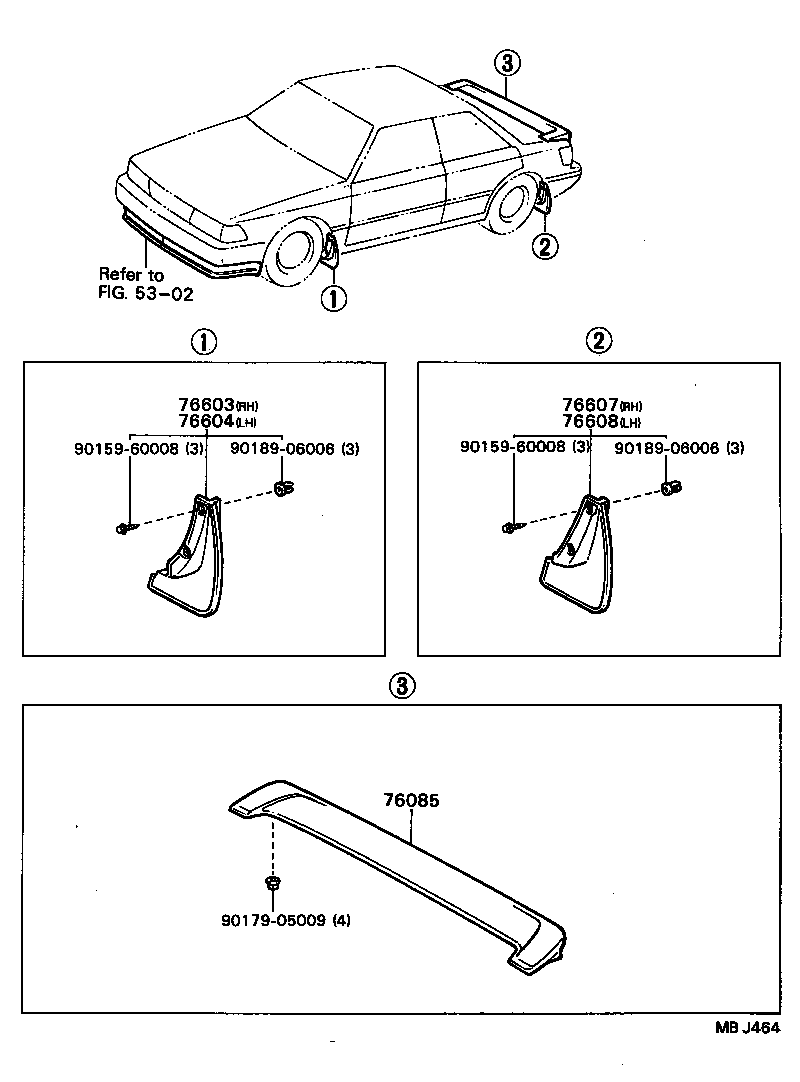

Click highlighted areas on diagram

diagram 5302 76085 76603 76604 76607 76608 9015960008 9015960008 9017905009 9018906006 9018906006
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-2005002

ST16#

RED,RED METALLIC,3G7

 1
76085-2005008

ST16#

WHITE,WHITE,041

 1
76085-2005018

ST16#

SUPER WHITE,SUPER WHITE 2,040

 1
76085-2005005

ST16#..F,G,S,X

BEIGE-M,LIGHT BEIGE METALLIC,2R4

 1
76085-2005013

ST16#

SILVER-M,GREENISH SILVER M,154

 1
76085-2005003

ST16#

SILVER-M,BLUISH SILVER M,160

 1
76085-2005006

ST16#

BROWN-M,BROWN METALLIC,4G3

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-29035

ST16#

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-29035

ST16#

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-29055

ST16#

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-29055

ST16#

 1
Common parts
90159-60008
90179-05009
90189-06006
Linked diagrams
5302
