ST162-ATMVF (1985)
Toyota Carina Ed
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

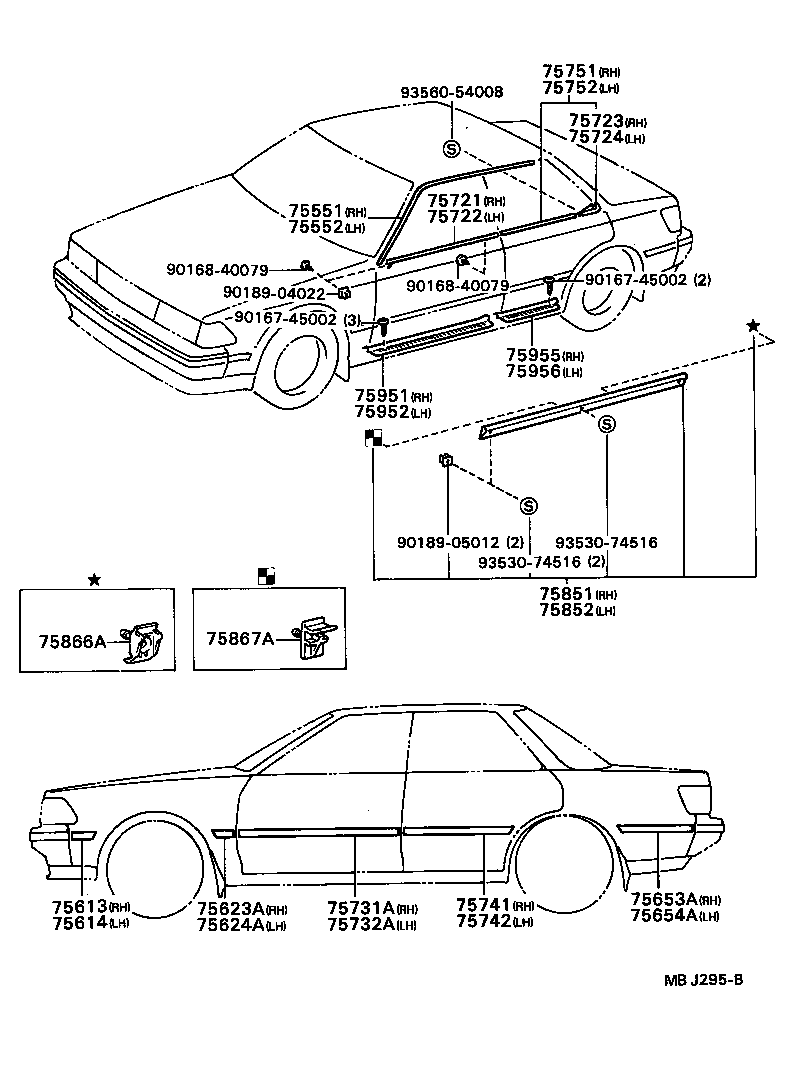

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-20240 |
ST16# |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-20240 |
ST16# |
1 | ||
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-20260 |
ST16# |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-20230 |
ST16# |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-20090 |
ST16# |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-20090 |
ST16# |
1 | ||
| 75653A - MOULDING, QUARTER, OUTSIDE REAR RH | ||||
| 75653-20190 |
ST16# |
1 | ||
| 75653-20191 |
ST16# |
1 | ||
| 75654A - MOULDING, QUARTER, OUTSIDE REAR LH | ||||
| 75654-20181 |
ST16# |
1 | ||
| 75654-20180 |
ST16# |
1 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-20260 |
ST16# |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-20260 |
ST16# |
1 | ||
| 75723 - MOULDING, REAR DOOR BELT, REAR RH | ||||
| 75723-20020 |
ST16# |
1 | ||
| 75724 - MOULDING, REAR DOOR BELT, REAR LH | ||||
| 75724-20050 |
ST16# |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-20260 |
ST16# |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-20260 |
ST16# |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-20340 |
ST162 |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-20320 |
ST162 |
1 | ||
| 75751 - MOULDING, REAR DOOR BELT, RH | ||||
| 75730-20110 |
ST16# |
1 | ||
| 75752 - MOULDING, REAR DOOR BELT, LH | ||||
| 75740-20180 |
ST16# |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-29195 |
ST16# |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75850-29195 |
ST16# |
1 | ||
| 75866A - RETAINER, ROCKER PANEL MOULDING | ||||
| 75866-20030 |
ST16# |
2 | ||
| 75867A - CLIP, ROCKER PANEL MOULDING | ||||
| 75867-20040 |
ST16# |
4 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67913-2013006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67913-2013003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67913-2013003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67913-2013006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 75955 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67917-2012003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67917-2012006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 75956 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67917-2012006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67917-2012003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-45002 | ||||
| 90168-40079 | ||||
| 90189-04022 | ||||
| 90189-05012 | ||||
| 93530-74516 | ||||
| 93560-54008 | ||||
