ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

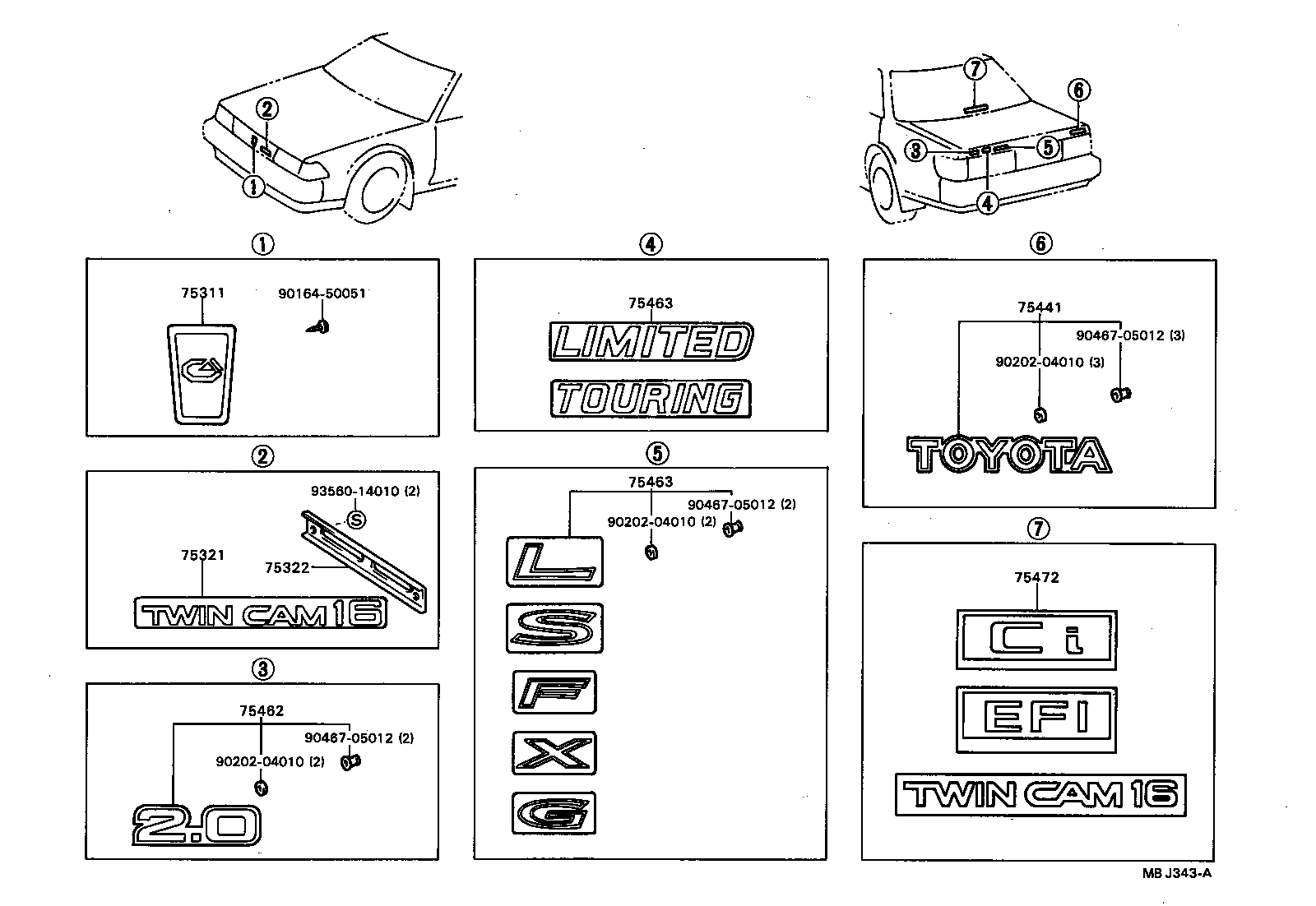

Click highlighted areas on diagram

diagram 75311 75321 75322 75441 75462 75463 75463 75472 9016450051 9020204010 9020204010 9020204010 9046705012 9046705012 9046705012 9356014010
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-20090

ST16#

 1
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20410

ST162

TWIN CAM 16,TWIN CAM 16

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-20050

ST162

 1
75441 - PLATE, REAR NAME, NO.1
75443-20130

ST16#

TOYOTA,TOYOTA

 1
75462 - PLATE, REAR NAME, NO.3 (DISPLACEMENT)
75442-20280

ST162

2.0,2.0

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75445-20050

ST16#..G,S

LIMITED,LIMITED

 1
75444-20310

ST162

G,G

 1
75445-20050

ST162

LIMITED,LIMITED

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75445-20050

ST16#..G,S

LIMITED,LIMITED

 1
75444-20310

ST162

G,G

 1
75445-20050

ST162

LIMITED,LIMITED

 1
75472 - PLATE, REAR WINDOW NAME
75485-20060

ST162

TWIN CAM 16,TWIN CAM 16

 1
Common parts
90164-50051
90202-04010
90467-05012
93560-14010
