ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

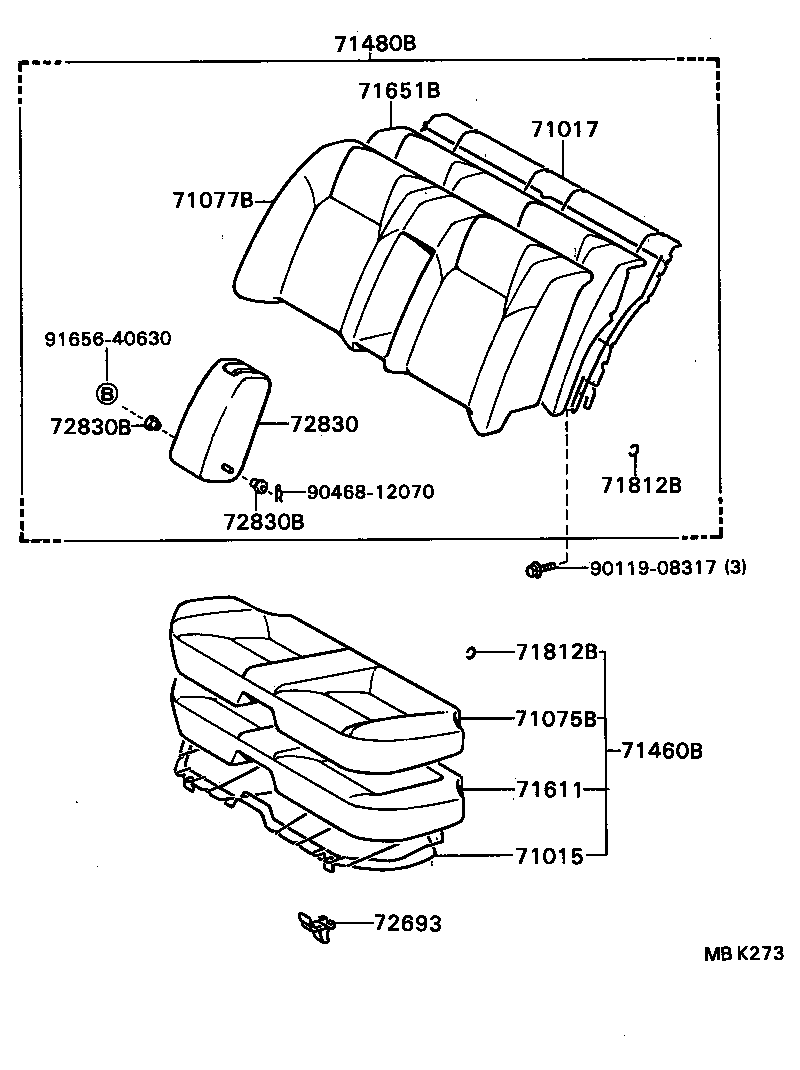

Click highlighted areas on diagram

diagram 71015 71017 71075B 71077B 71460B 71480B 71611 71651B 71812B 71812B 72693 72830 72830B 72830B 9011908317 9046812070 9165640630
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-20180

ST16#

 1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-20220

ST16#..G,L,S

 1
71017-20230

ST162

G-LIMITED

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2033006

ST162

FB,BROWN,BROWN,TRIM1#,4#

 1
71065-2033003

ST162

FB,GRAY,SHADOW GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2B44003

ST162

FB,GRAY,SHADOW GRAY,TRIM1#

 1
71077-2B44006

ST162

FB,BROWN,BROWN,TRIM1#,4#

 1
71077-2B62003

ST162

G-LIMITED,FB,GRAY,SHADOW GRAY,TRIM1#

 1
71077-2B62006

ST162

G-LIMITED,FB,BROWN,BROWN,TRIM1#,4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2031003

ST162

FB,GRAY,SHADOW GRAY,TRIM1#

 1
71560-2031006

ST162

FB,BROWN,BROWN,TRIM1#,4#

 1
71560-2032003

ST162

G-LIMITED,FB,GRAY,SHADOW GRAY,TRIM1#

 1
71560-2032006

ST162

G-LIMITED,FB,BROWN,BROWN,TRIM1#,4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2B50003

ST162

FB,GRAY,SHADOW GRAY,TRIM1#

 1
71480-2B50006

ST162

FB,BROWN,BROWN,TRIM1#,4#

 1
71480-2B51003

ST162

G-LIMITED,FB,GRAY,SHADOW GRAY,TRIM1#

 1
71480-2B51006

ST162

G-LIMITED,FB,BROWN,BROWN,TRIM1#,4#

 1
71611 - PAD, REAR SEAT CUSHION
71611-20280

ST16#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-20340

ST16#..G,L,S

 1
71651-20350

ST162

G-LIMITED

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

ST16#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

ST16#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20010

ST16#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-2016003

ST162

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

 1
72830-2016006

ST162

G-LIMITED,BROWN,BROWN,TRIM1#,4#

 1
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

ST162

G-LIMITED

 2
72830B - BUSH(FOR REAR SEAT CENTER ARMREST)
90386-06002

ST162

G-LIMITED

 2
Common parts
90119-08317
90468-12070
91656-40630
