ST162-ATMVF (1985)
Toyota Carina Ed
(8508- )

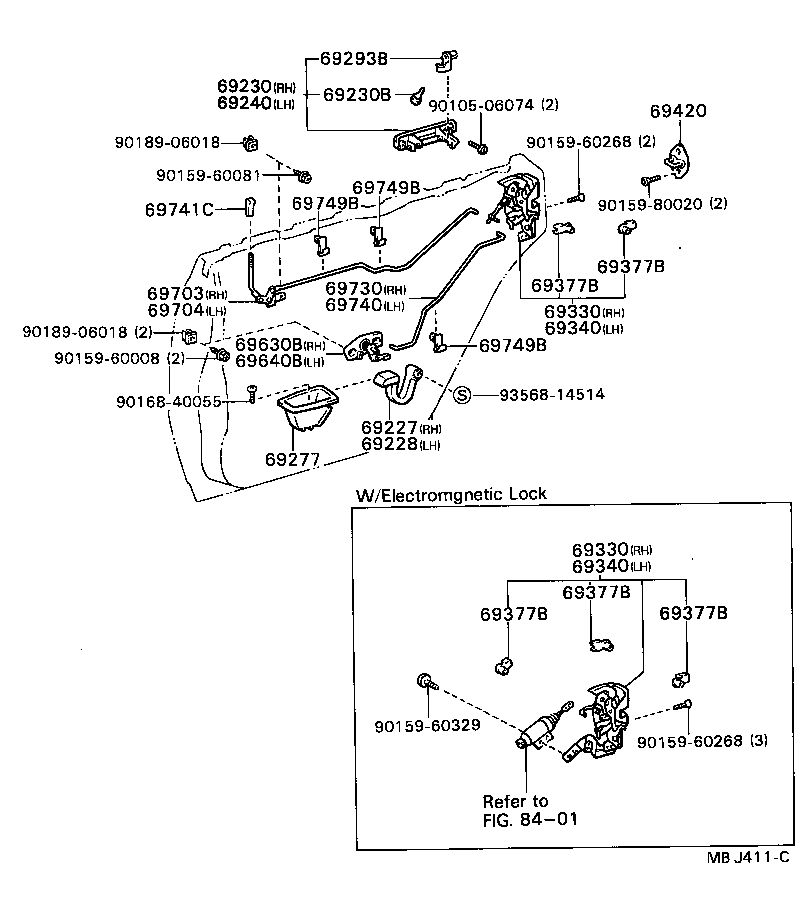

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69271-2009006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 69271-2009003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69272-2006003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 69272-2006006 |
ST16# BROWN,BROWN,TRIM1#,4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-20130 |
ST16# |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
ST16# |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-20130 |
ST16# |
1 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69277-2002003 |
ST16# RH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 69277-2002006 |
ST16# RH,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 69278-2002006 |
ST16# LH,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 69278-2002003 |
ST16# LH,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-16020 |
ST16# LH |
1 | ||
| 69293-16010 |
ST16# RH |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-20190 |
ST16#..F,G,X W/*EL |
1 | ||
| 69330-20190 |
ST16#..F,G,S,X W/*EL |
1 | ||
| 69330-20220 |
ST16#..G,L,S W/O *EL |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-20190 |
ST16#..F,G,X W/*EL |
1 | ||
| 69330-20190 |
ST16#..F,G,S,X W/*EL |
1 | ||
| 69330-20220 |
ST16#..G,L,S W/O *EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-20210 |
ST16#..F,G,X W/*EL |
1 | ||
| 69340-20210 |
ST16#..F,G,S,X W/*EL |
1 | ||
| 69340-20220 |
ST16#..G,L,S W/O *EL |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-20210 |
ST16#..F,G,X W/*EL |
1 | ||
| 69340-20210 |
ST16#..F,G,S,X W/*EL |
1 | ||
| 69340-20220 |
ST16#..G,L,S W/O *EL |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20110 |
ST16#..F,G,X SOLENOID LINK,LH |
1 | ||
| 69759-20180 |
ST16# LOCKING LINK |
2 | ||
| 69759-20100 |
ST16#..F,G,X SOLENOID LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20160 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20150 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20190 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20100 |
ST16#..F,G,S,X SOLENOID LINK,RH |
1 | ||
| 69759-20110 |
ST16#..F,G,S,X SOLENOID LINK,LH |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20110 |
ST16#..F,G,X SOLENOID LINK,LH |
1 | ||
| 69759-20180 |
ST16# LOCKING LINK |
2 | ||
| 69759-20100 |
ST16#..F,G,X SOLENOID LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20160 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20150 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20190 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20100 |
ST16#..F,G,S,X SOLENOID LINK,RH |
1 | ||
| 69759-20110 |
ST16#..F,G,S,X SOLENOID LINK,LH |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20110 |
ST16#..F,G,X SOLENOID LINK,LH |
1 | ||
| 69759-20180 |
ST16# LOCKING LINK |
2 | ||
| 69759-20100 |
ST16#..F,G,X SOLENOID LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20160 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20150 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20190 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20100 |
ST16#..F,G,S,X SOLENOID LINK,RH |
1 | ||
| 69759-20110 |
ST16#..F,G,S,X SOLENOID LINK,LH |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20110 |
ST16#..F,G,X SOLENOID LINK,LH |
1 | ||
| 69759-20180 |
ST16# LOCKING LINK |
2 | ||
| 69759-20100 |
ST16#..F,G,X SOLENOID LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20160 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20150 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20190 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20100 |
ST16#..F,G,S,X SOLENOID LINK,RH |
1 | ||
| 69759-20110 |
ST16#..F,G,S,X SOLENOID LINK,LH |
1 | ||
| 69377B - SNAP, REAR DOOR LOCK CONTROL ROD | ||||
| 69759-20110 |
ST16#..F,G,X SOLENOID LINK,LH |
1 | ||
| 69759-20180 |
ST16# LOCKING LINK |
2 | ||
| 69759-20100 |
ST16#..F,G,X SOLENOID LINK,RH |
1 | ||
| 69759-20200 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20160 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20150 |
ST16# OPEN LINK,RH |
1 | ||
| 69759-20190 |
ST16# OPEN LINK,LH |
1 | ||
| 69759-20100 |
ST16#..F,G,S,X SOLENOID LINK,RH |
1 | ||
| 69759-20110 |
ST16#..F,G,S,X SOLENOID LINK,LH |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-12050 |
ST16# |
2 | ||
| 69630B - CONTROL ASSY, REAR DOOR LOCK REMOTE, RH | ||||
| 69610-20080 |
ST16# |
1 | ||
| 69640B - CONTROL ASSY, REAR DOOR LOCK REMOTE, LH | ||||
| 69620-20050 |
ST16# |
1 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69770-20050 |
ST16# |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69780-20050 |
ST16# |
1 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69713-20080 |
ST16# |
1 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69714-20080 |
ST16# |
1 | ||
| 69741C - KNOB, REAR DOOR LOCK CONTROL | ||||
| 69741-2004003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 69741-2004006 |
ST16# BROWN,BROWN,TRIM1#,4# |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20020 |
ST16# |
6 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20020 |
ST16# |
6 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-20020 |
ST16# |
6 | ||
| Common parts | ||||
| 90105-06074 | ||||
| 90159-60008 | ||||
| 90159-60081 | ||||
| 90159-60268 | ||||
| 90159-60329 | ||||
| 90159-80020 | ||||
| 90168-40055 | ||||
| 90189-06018 | ||||
| 93568-14514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
