ST162-ATMVF (1985)
Toyota Carina Ed

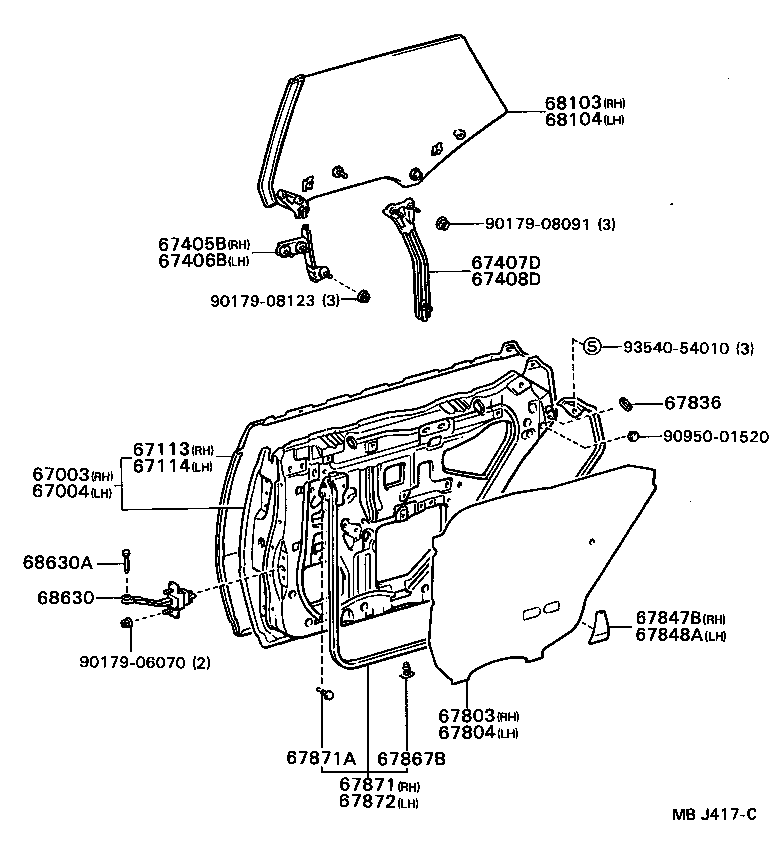

ILLUST NO. 1 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20420 |
ST16# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20420 |
ST16# |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20090 |
ST16# |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20090 |
ST16# |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-20050 |
ST16# |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-20050 |
ST16# |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-20120 |
ST16# |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-20110 |
ST16# |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-20180 |
ST16# |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-20080 |
ST16# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20060 |
ST16# |
2 | ||
| 67836-20060 |
ST16# COLD SPEC |
2 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-20040 |
ST16# |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-20040 |
ST16# |
1 | ||
| 67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67869-30020 |
ST16# |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20190 |
ST16# |
1 | ||
| 67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP) | ||||
| 67868-20010 |
ST16# LH |
16 | ||
| 67867-20010 |
ST16# RH |
16 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20190 |
ST16# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-20070 |
ST16# *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68103-20080 |
ST16#..F,G,X *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-20070 |
ST16# *TT,厚さ=5.0,*TT,T=5.0 |
1 | ||
| 68104-20080 |
ST16#..F,G,X *TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20040 |
ST16# |
2 | ||
| 68630A - PIN(FOR REAR DOOR CHECK) | ||||
| 68617-90K00 |
ST16# |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90179-08123 | ||||
| 90950-01520 | ||||
| 93540-54010 | ||||

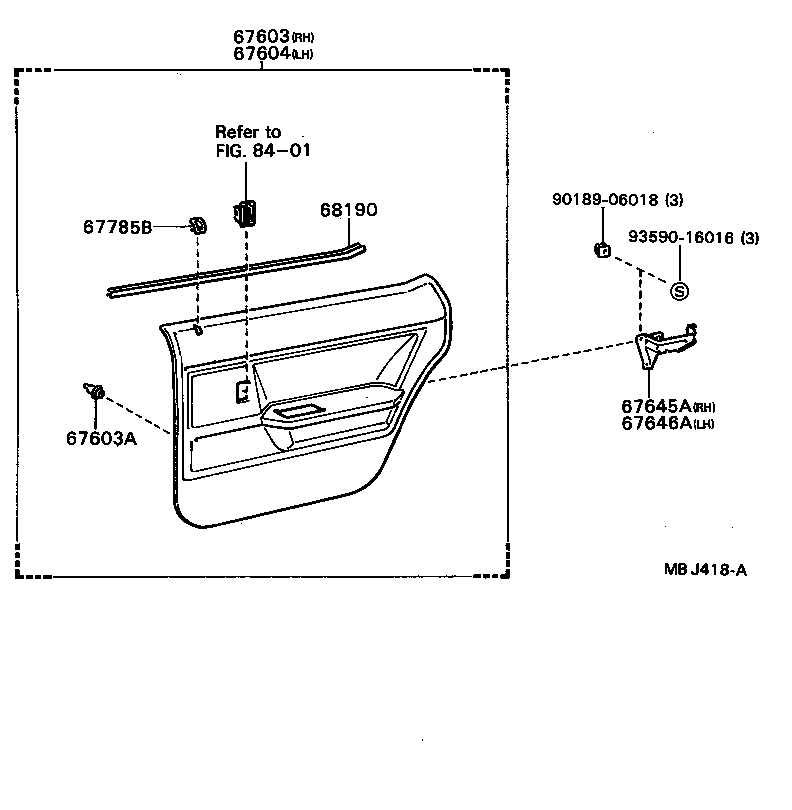

ILLUST NO. 2 OF 2(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2B38006 |
ST162 W/O *PW,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67630-2B36003 |
ST162 W/*PW,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67630-2B36006 |
ST162 W/*PW,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67630-2B38003 |
ST162 W/O *PW,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12010 |
ST16# |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B36003 |
ST162 W/*PW,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2B38003 |
ST162 W/O *PW,GRAY,SHADOW GRAY,TRIM1# |
1 | ||
| 67640-2B36006 |
ST162 W/*PW,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67640-2B38006 |
ST162 W/O *PW,BROWN,BROWN,TRIM1#,4# |
1 | ||
| 67645A - BRACKET, REAR DOOR ARMREST SET, RH | ||||
| 67645-20020 |
ST16# |
1 | ||
| 67646A - BRACKET, REAR DOOR ARMREST SET, LH | ||||
| 67646-20020 |
ST16# |
1 | ||
| 67785B - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) | ||||
| 67785-2002006 |
ST16# BROWN,BROWN,TRIM1#,4# |
2 | ||
| 67785-2002003 |
ST16# GRAY,SHADOW GRAY,TRIM1# |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-20090 |
ST16# LH |
1 | ||
| 68190-20190 |
ST16# RH |
1 | ||
| Common parts | ||||
| 90189-06018 | ||||
| 93590-16016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
