ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

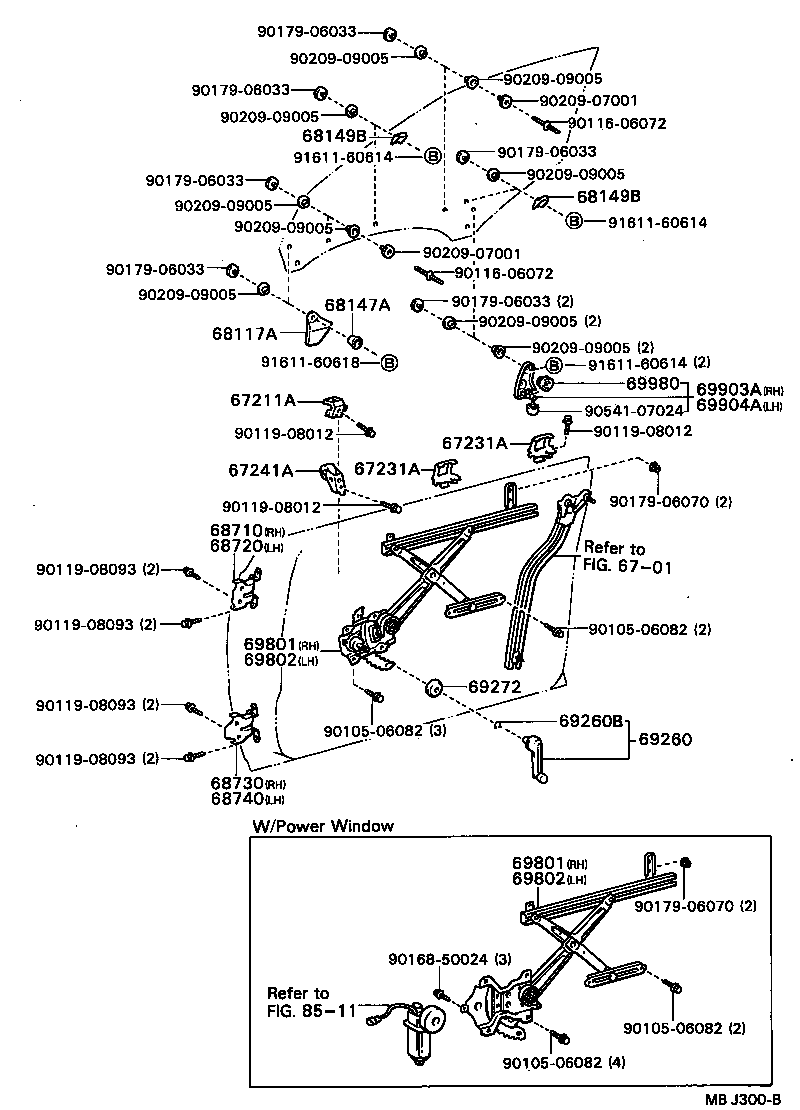

Click highlighted areas on diagram

diagram 6701 67211A 67231A 67231A 67241A 68117A 68147A 68149B 68149B 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69903A 69904A 69980 8511 9010506082 9010506082 9010506082 9010506082 9011606072 9011606072 9011908012 9011908012 9011908012 9011908093 9011908093 9011908093 9011908093 9016850024 9017906033 9017906033 9017906033 9017906033 9017906033 9017906033 9017906070 9017906070 9020907001 9020907001 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9020909005 9054107024 9161160614 9161160614 9161160614 9161160618
Part # Description Qty Price
67211A - STOP, FRONT DOOR WINDOW, UPPER
67211-20020

ST16#

 4
67231A - SUPPORT, FRONT DOOR TRIM
67231-20020

ST16#

RH

 2
67232-20020

ST16#

LH

 2
67231A - SUPPORT, FRONT DOOR TRIM
67231-20020

ST16#

RH

 2
67232-20020

ST16#

LH

 2
67241A - STABILIZER, DOOR GLASS, INNER
67241-14010

ST16#

 2
68117A - PLATE, FRONT DOOR GLASS
68117-20010

ST16#

RH

 1
68118-20010

ST16#

LH

 1
68147A - STOP, FRONT DOOR GLASS, UPPER
68147-20020

ST16#

 2
68149B - STABILIZER, FRONT DOOR GLASS MALE
68149-20010

ST16#

 4
68149B - STABILIZER, FRONT DOOR GLASS MALE
68149-20010

ST16#

 4
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20070

ST16#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20060

ST16#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-20080

ST16#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-20080

ST16#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-2203013

ST16#..G,L,S

GRAY,SHADOW GRAY,TRIM1#

 2
69260-2203005

ST16#..G,L,S

BEIGE,BEIGE,TRIM1#,4#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

ST16#..G,L,S

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

ST16#..G,L,S

NATURAL WHITE

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20130

ST16#..F,G,X

W/*PW

 1
69810-20130

ST16#..G,L,S

W/O *PW

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20130

ST16#..F,G,X

W/*PW

 1
69810-20130

ST16#..G,L,S

W/O *PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20130

ST16#..G,L,S

W/O *PW

 1
69802-20130

ST16#..F,G,X

W/*PW

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-20130

ST16#..G,L,S

W/O *PW

 1
69802-20130

ST16#..F,G,X

W/*PW

 1
69903A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR RH
69903-20080

ST16#

 1
69904A - BRACKET SUB-ASSY, FRONT DOOR GLASS, REAR LH
69904-20060

ST16#

 1
69980 - ROLLER ASSY, FRONT DOOR GLASS GUIDE
69981-14020

ST16#

 2
Common parts
90105-06082
90116-06072
90119-08012
90119-08093
90168-50024
90179-06033
90179-06070
90209-07001
90209-09005
90541-07024
91611-60614
91611-60618
Linked diagrams
6701
8511
