ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

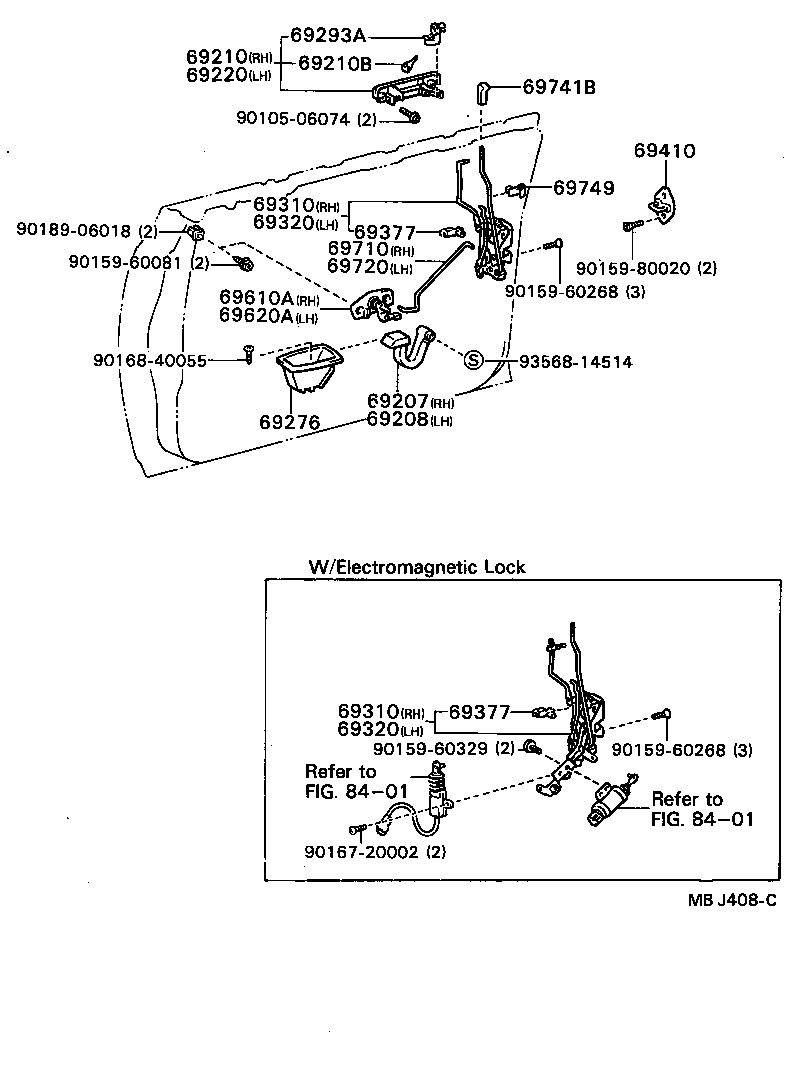

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69276 69293A 69310 69310 69320 69320 69377 69377 69410 69610A 69620A 69710 69720 69741B 69749 8401 8401 9010506074 9015960081 9015960268 9015960268 9015960329 9015980020 9016720002 9016840055 9018906018 9356814514
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69271-2009003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
69271-2009006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69272-2006003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
69272-2006006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20120

ST16#

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

ST16#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20120

ST16#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69278-2002003

ST16#

LH,GRAY,SHADOW GRAY,TRIM1#

 1
69277-2002003

ST16#

RH,GRAY,SHADOW GRAY,TRIM1#

 1
69278-2002006

ST16#

LH,BROWN,BROWN,TRIM1#,4#

 1
69277-2002006

ST16#

RH,BROWN,BROWN,TRIM1#,4#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-16010

ST16#

RH

 1
69293-16020

ST16#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20260

ST16#..F,G,S,X

W/*EL

 1
69310-20260

ST16#..F,G,X

W/*EL

 1
69310-20290

ST16#..G,L,S

W/O *EL

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20260

ST16#..F,G,S,X

W/*EL

 1
69310-20260

ST16#..F,G,X

W/*EL

 1
69310-20290

ST16#..G,L,S

W/O *EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20260

ST16#..F,G,X

W/*EL

 1
69320-20260

ST16#..F,G,S,X

W/*EL

 1
69320-20290

ST16#..G,L,S

W/O *EL

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20260

ST16#..F,G,X

W/*EL

 1
69320-20260

ST16#..F,G,S,X

W/*EL

 1
69320-20290

ST16#..G,L,S

W/O *EL

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20200

ST16#

LH

 1
69759-20190

ST16#

RH

 1
69759-20150

ST16#

LH

 1
69759-20160

ST16#

RH

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-20200

ST16#

LH

 1
69759-20190

ST16#

RH

 1
69759-20150

ST16#

LH

 1
69759-20160

ST16#

RH

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-12050

ST16#

 2
69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69610-20080

ST16#

 1
69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69620-20050

ST16#

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-20090

ST16#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-20090

ST16#

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-2004006

ST16#

BROWN,BROWN,TRIM1#,4#

 2
69741-2004003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20020

ST16#

 2
Common parts
90105-06074
90159-60081
90159-60268
90159-60329
90159-80020
90167-20002
90168-40055
90189-06018
93568-14514
Linked diagrams
8401
