ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

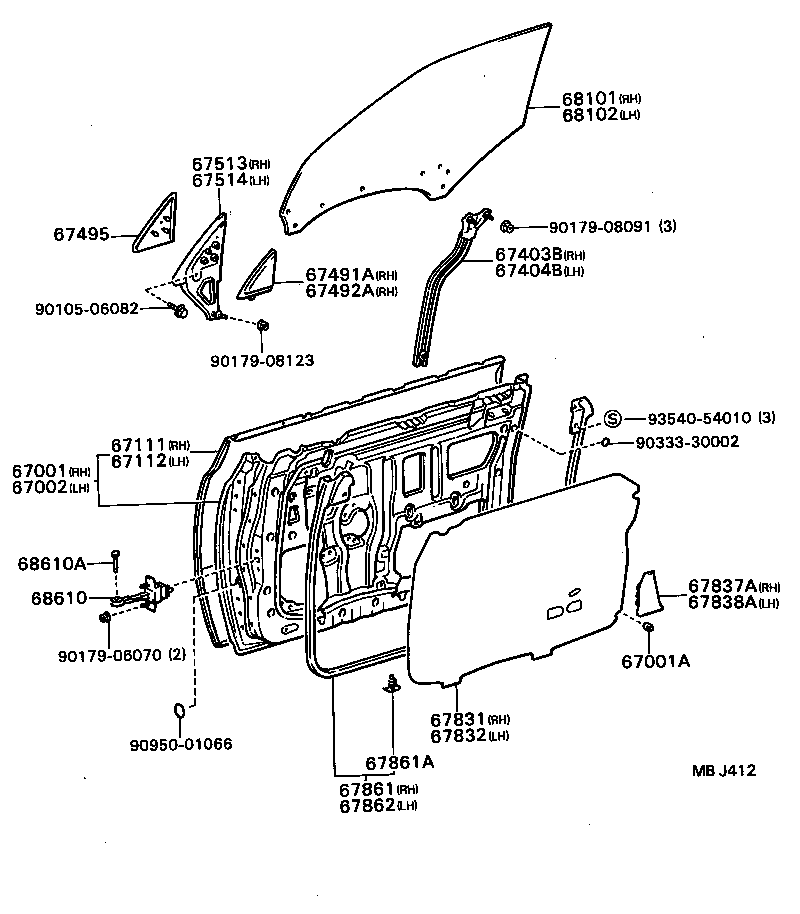

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67403B 67404B 67491A 67492A 67495 67513 67514 67831 67832 67837A 67838A 67861 67861A 67862 68101 68102 68610 68610A 9010506082 9017906070 9017908091 9017908123 9033330002 9095001066 9354054010
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-20630

ST16#

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09006

ST16#

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-20600

ST16#

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20150

ST16#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20170

ST16#

 1
67403B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR RH
67403-20030

ST16#

 1
67404B - GUIDE SUB-ASSY, FRONT DOOR WINDOW, REAR LH
67404-20030

ST16#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20110

ST16#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20130

ST16#

 1
67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67495-20060

ST16#

RH

 1
67496-20030

ST16#

LH

 1
67513 - BRACKET, FRONT DOOR MIRROR, RH
67513-20040

ST16#

 1
67514 - BRACKET, FRONT DOOR MIRROR, LH
67514-20040

ST16#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-20260

ST16#..G,L,S

W/O *PW

 1
67831-20270

ST16#..F,G,X

W/*PW

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-20110

ST16#

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-20060

ST16#

 1
67838A - SEAL, FRONT DOOR VENT, LH
67838-20050

ST16#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20240

ST16#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

ST16#

 36
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20240

ST16#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-20360

ST16#

*TT,厚さ=5.0,*TT,T=5.0

 1
68111-20390

ST16#..F,G,X

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-20310

ST16#..F,G,X

*TT,厚さ=5.0,ﾌﾞﾛﾝｽﾞ,*TT,T=5.0,BRONZE

 1
68112-20280

ST16#

*TT,厚さ=5.0,*TT,T=5.0

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20040

ST16#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-90K00

ST16#

 2
Common parts
90105-06082
90179-06070
90179-08091
90179-08123
90333-30002
90950-01066
93540-54010
