ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

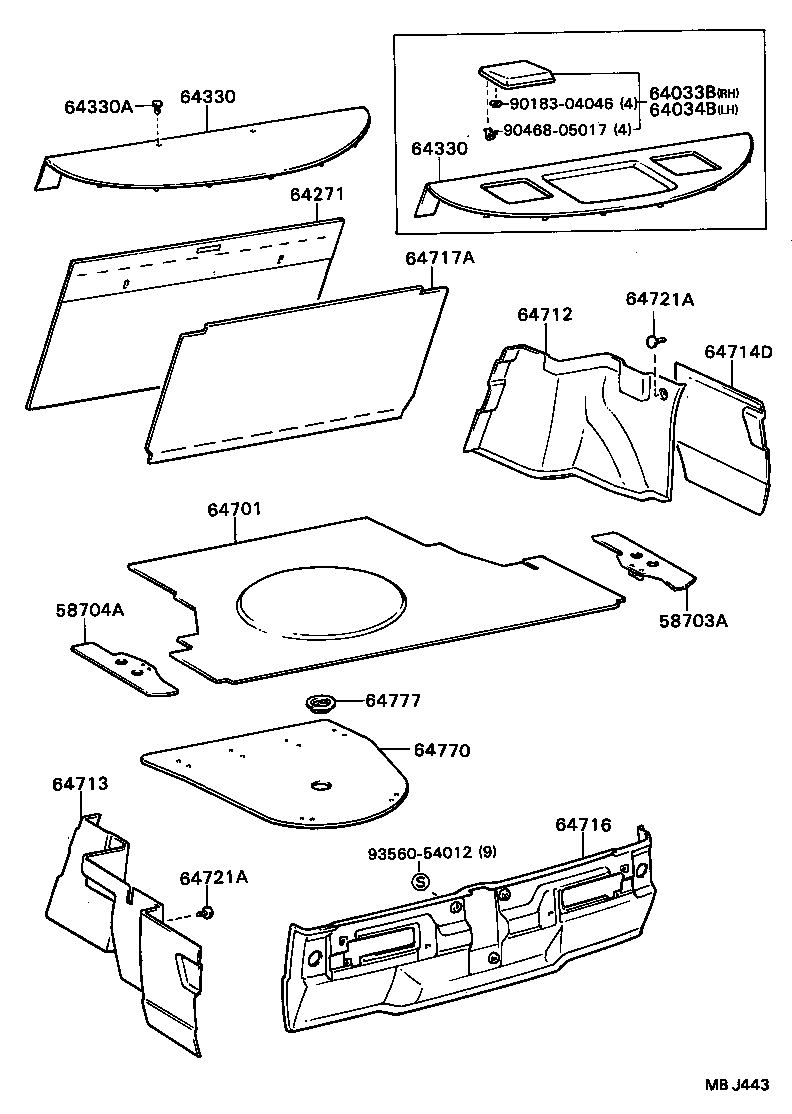

Click highlighted areas on diagram

diagram 58703A 58704A 64033B 64034B 64271 64330 64330 64330A 64701 64712 64713 64714D 64716 64717A 64721A 64721A 64770 64777 9018304046 9046805017 9356054012
Part # Description Qty Price
58703A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
58703-20040

ST16#

 1
58704A - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
58704-20070

ST16#

 1
64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2010006

ST16#..F,G,S,X

BROWN,BROWN,TRIM1#,4#

 1
64033-2010003

ST16#..F,G,S,X

GRAY,SHADOW GRAY,TRIM1#

 1
64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH
64033-2010003

ST16#..F,G,S,X

GRAY,SHADOW GRAY,TRIM1#

 1
64033-2010006

ST16#..F,G,S,X

BROWN,BROWN,TRIM1#,4#

 1
64271 - BOARD, ROOM PARTITION, NO.1
64271-20140

ST16#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2049003

ST16#..F,G,S,X

W/SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2049006

ST16#..F,G,S,X

W/SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

 1
64330-2078006

ST16#..G,L,S

W/O SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

 1
64330-2078003

ST16#..G,L,S

W/O SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

 1
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-2049003

ST16#..F,G,S,X

W/SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

 1
64330-2049006

ST16#..F,G,S,X

W/SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

 1
64330-2078006

ST16#..G,L,S

W/O SPEAKER GRILLE,BROWN,BROWN,TRIM1#,4#

 1
64330-2078003

ST16#..G,L,S

W/O SPEAKER GRILLE,GRAY,SHADOW GRAY,TRIM1#

 1
64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90467-0803736

ST16#..G,L,S

BROWN,BROWN,TRIM1#,4#

 2
90467-0803713

ST16#..G,L,S

GRAY,SHADOW GRAY,TRIM1#

 2
64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT
64711-20300

ST162

G-LIMITED

 1
64711-20290

ST16#..F,G,L,S

 1
64712 - COVER, LUGGAGE COMPARTMENT TRIM, RH
64712-20100

ST16#..F,G,L,S

 1
64712-20130

ST162

G-LIMITED

 1
64713 - COVER, LUGGAGE COMPARTMENT TRIM, LH
64713-20130

ST162

G-LIMITED

 1
64713-20100

ST16#..F,G,L,S

 1
64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
64714-20190

ST16#..F,G,L,S

 1
64714-20220

ST162

G-LIMITED

 1
64716 - COVER, LUGGAGE COMPARTMENT, REAR CENTER
64716-20180

ST162

G-LIMITED

 1
64716-20140

ST16#..F,G,L,S

 1
64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT
64717-20160

ST162

G-LIMITED

 1
64717-20120

ST16#..F,G,L,S

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

ST16#

BLACK,BLACK,TRIM1#

 3
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0704201

ST16#

BLACK,BLACK,TRIM1#

 3
64770 - COVER ASSY, SPARE WHEEL
64770-20100

ST16#

 1
64777 - CLAMP, SPARE WHEEL COVER
64777-32020

ST16#

 1
64777-32030

ST16#

 1
Common parts
90183-04046
90468-05017
93560-54012
