ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

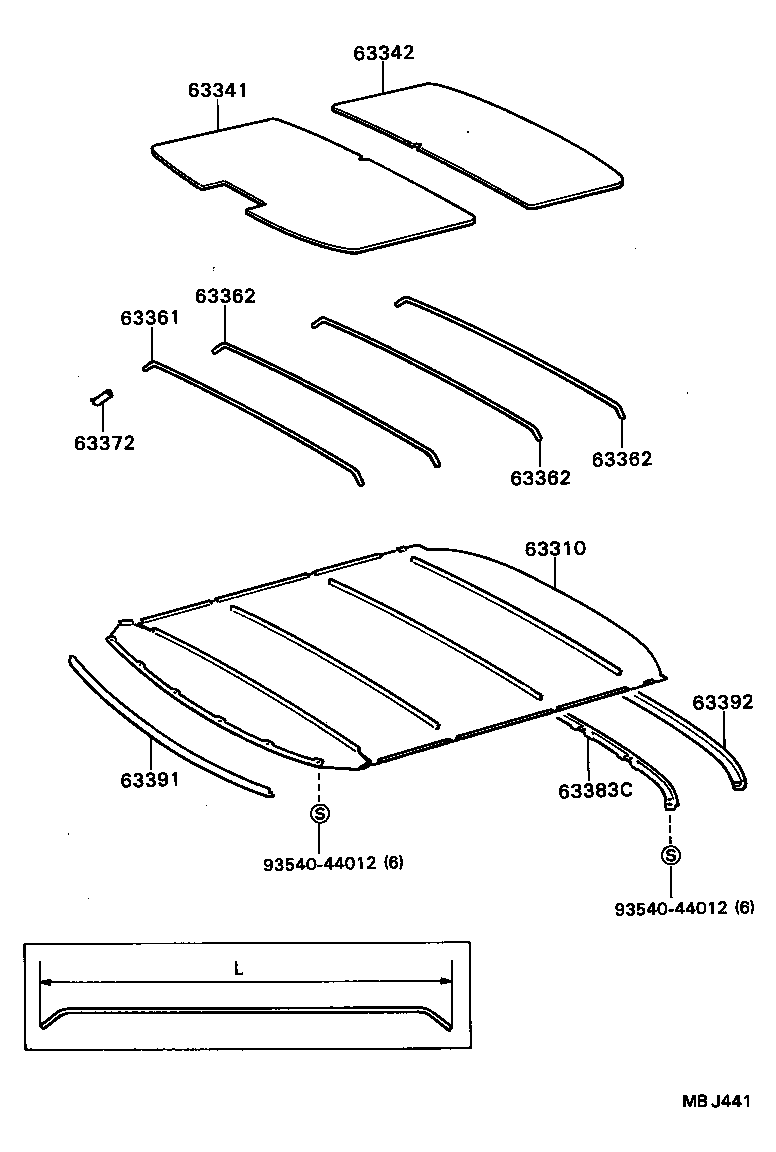

Click highlighted areas on diagram

diagram 63310 63341 63342 63361 63362 63362 63362 63372 63383C 63391 63392 9354044012 9354044012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-2050003

ST16#..G,L,S

GRAY,SHADOW GRAY,TRIM1#

 1
63310-2062006

ST162

G-LIMITED,BROWN,BROWN,TRIM1#,4#

 1
63310-2062003

ST162

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2050006

ST16#..G,L,S

BROWN,BROWN,TRIM1#,4#

 1
63310-2060003

ST16#

W/MOON ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2060006

ST16#

W/MOON ROOF,BROWN,BROWN,TRIM1#,4#

 1
63341 - PAD, ROOF SILENCER, NO.1
63341-20100

ST16#

 1
63342 - PAD, ROOF SILENCER, NO.2
63343-20060

ST16#

 1
63361 - SUPPORT, ROOF HEADLINING, NO.1
63361-20100

ST16#

L=928

 1
63361-20120

ST16#

L=932,WHITE

 1
63361-20110

ST16#

L=930,RED

 1
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-20100

ST16#

L=1036,BROWN

 3
63362-20110

ST16#

L=1010,BLUE

 3
63362-20070

ST16#

L=1038,YELLOW

 3
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-20100

ST16#

L=1036,BROWN

 3
63362-20110

ST16#

L=1010,BLUE

 3
63362-20070

ST16#

L=1038,YELLOW

 3
63362 - SUPPORT, ROOF HEADLINING, NO.2
63362-20100

ST16#

L=1036,BROWN

 3
63362-20110

ST16#

L=1010,BLUE

 3
63362-20070

ST16#

L=1038,YELLOW

 3
63372 - RETAINER, HEADLINING SUPPORT
63371-30060

ST16#

 2
63383C - RETAINER, ROOF HEADLINING TRIM, REAR
63383-20080

ST16#

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-2009006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
63391-2009003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-2009003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
63392-2009006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
Common parts
93540-44012

(8605- )

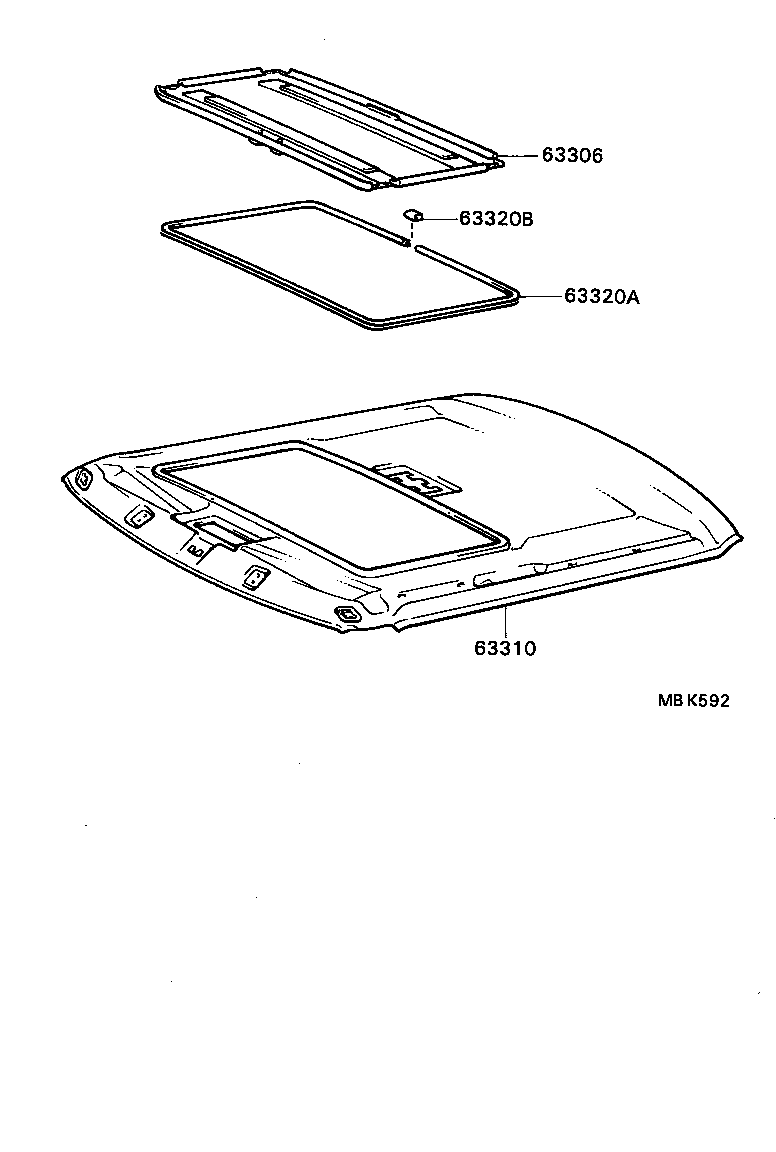

Click highlighted areas on diagram

diagram 63306 63310 63320A 63320B
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-2001003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
63306-2001006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
63310 - HEADLINING ASSY, ROOF
63310-2050003

ST16#..G,L,S

GRAY,SHADOW GRAY,TRIM1#

 1
63310-2062006

ST162

G-LIMITED,BROWN,BROWN,TRIM1#,4#

 1
63310-2062003

ST162

G-LIMITED,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2050006

ST16#..G,L,S

BROWN,BROWN,TRIM1#,4#

 1
63310-2060003

ST16#

W/MOON ROOF,GRAY,SHADOW GRAY,TRIM1#

 1
63310-2060006

ST16#

W/MOON ROOF,BROWN,BROWN,TRIM1#,4#

 1
63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63318-2004003

ST16#

GRAY,SHADOW GRAY,TRIM1#

 1
63318-2004006

ST16#

BROWN,BROWN,TRIM1#,4#

 1
63318-2004103

ST16#

GRAY,GRAY,TRIM1#

 1
63318-2004106

ST16#

BROWN,SABLE,TRIM1#,4#

 1
63320B - JOINT, SUN ROOF OPENING TRIM
63319-14011

ST16#

 1
