ST162-ATMVF (1985)
Toyota Carina Ed
Production
Aug 1985
-
Aug 1987
Engine
3SGELU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

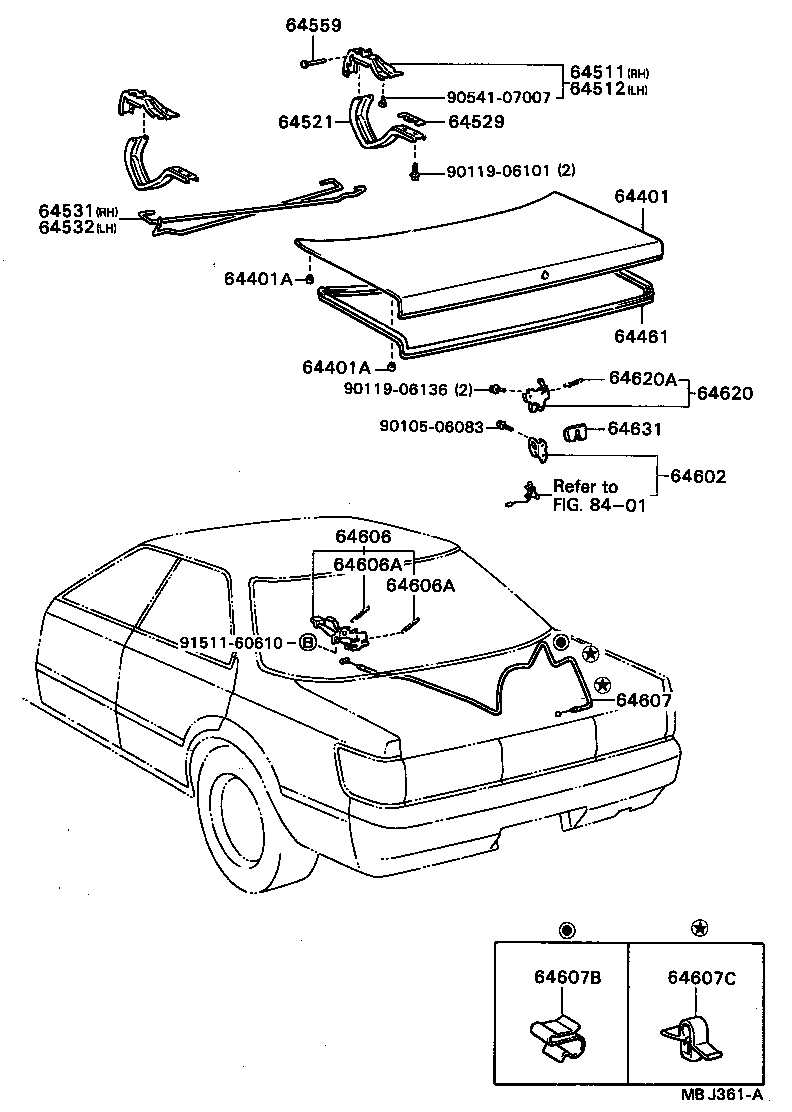

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-2B030 |
ST16# W/O SPOILER |
1 | ||
| 64401-2B040 |
ST16# W/SPOILER |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
ST16# FR |
2 | ||
| 90541-09043 |
ST16# RR |
2 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-06076 |
ST16# FR |
2 | ||
| 90541-09043 |
ST16# RR |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-20270 |
ST16# |
1 | ||
| 64461-20210 |
ST16# |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64511-20100 |
ST16# |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64512-20100 |
ST16# |
1 | ||
| 64521 - ARM, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64521-20110 |
ST16# |
2 | ||
| 64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE | ||||
| 64529-20010 |
ST16# |
4 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-20160 |
ST16# W/O SPOILER |
1 | ||
| 64531-20170 |
ST16# W/SPOILER |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-20160 |
ST16# W/O SPOILER |
1 | ||
| 64532-20170 |
ST16# W/SPOILER |
1 | ||
| 64559 - PIN, LUGGAGE DOOR HINGE | ||||
| 64559-22010 |
ST16# |
2 | ||
| 64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-20050 |
ST16#..G,L,S |
1 | ||
| 64620-20040 |
ST162 G-LIMITED |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-20070 |
ST16# |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
ST16# |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
ST16# |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-20260 |
ST16# |
1 | ||
| 64607B - CLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90463-05005 |
ST16# |
1 | ||
| 64607C - CLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01209 |
ST16# |
2 | ||
| 64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-20090 |
ST16# |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-08001 |
ST16# |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-12010 |
ST16# |
1 | ||
| Common parts | ||||
| 90105-06083 | ||||
| 90119-06101 | ||||
| 90119-06136 | ||||
| 90541-07007 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
