ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

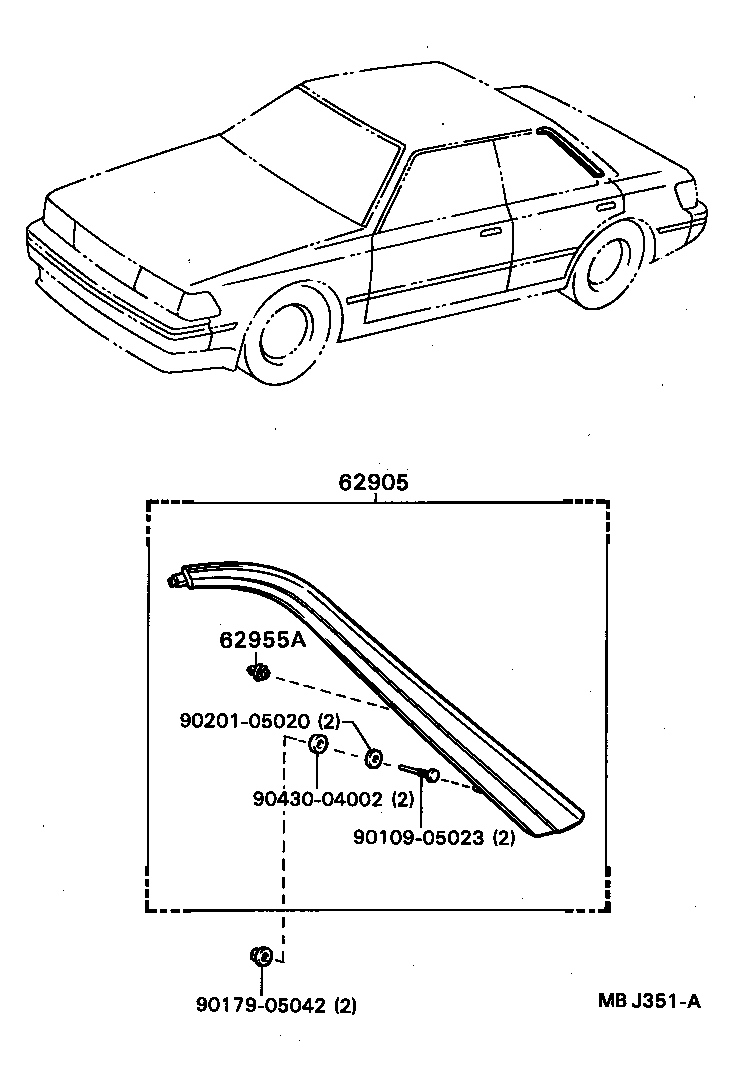

Click highlighted areas on diagram

diagram 62905 62955A 9010905023 9017905042 9020105020 9043004002
Part # Description Qty Price
62905 - LOUVER, QUARTER VENTILATION
62905-20040

ST16#

RH

 1
62906-20060

ST16#

LH

 1
62955A - RETAINER, QUARTER VENT LOUVER
62955-16040

ST16#

 2
Common parts
90109-05023
90179-05042
90201-05020
90430-04002
