ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

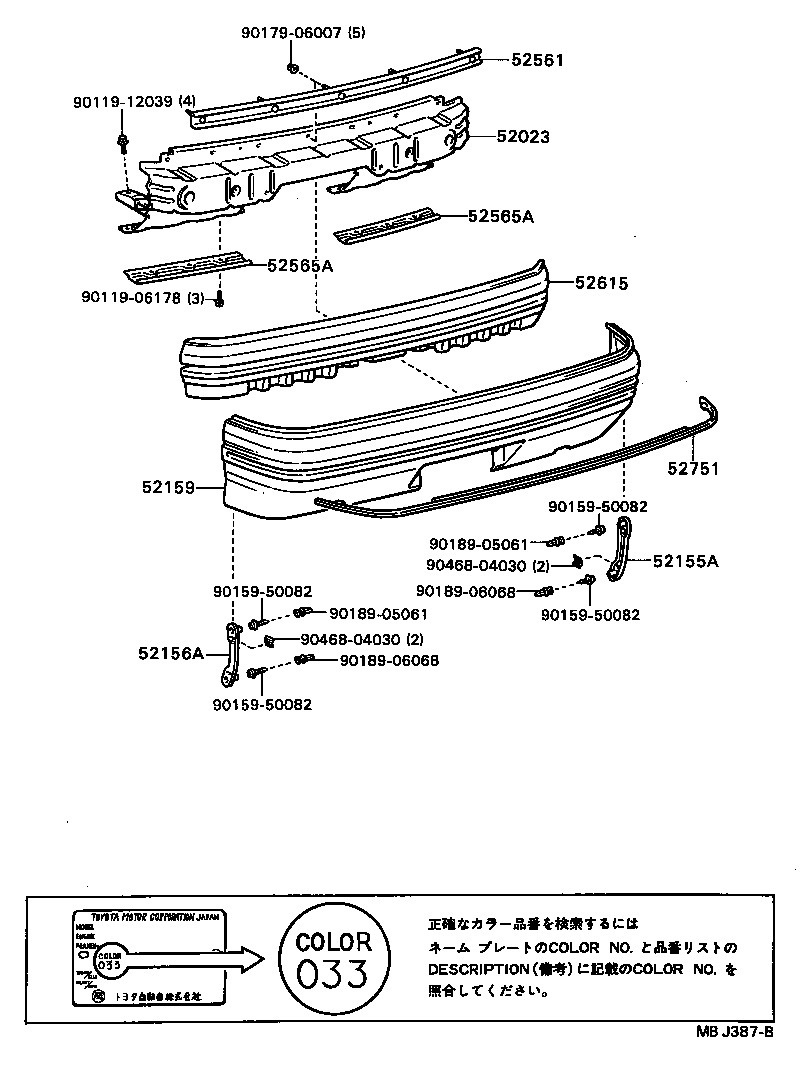

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52159 52561 52565A 52565A 52615 52751 9011906178 9011912039 9015950082 9015950082 9015950082 9015950082 9017906007 9018905061 9018905061 9018906068 9018906068 9046804030 9046804030
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-20150

ST16#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-20120

ST16#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-20120

ST16#

 1
52159 - COVER, REAR BUMPER
52159-2018002

ST16#

RED-M,RED METALLIC,3G7

 1
52159-2018008

ST16#

WHITE,WHITE,041

 1
52159-2018006

ST16#

BROWN-M,BROWN METALLIC,4G3

 1
52159-2018005

ST16#..F,G,S,X

BEIGE-M,CAMEL BEIGE METALLIC,2R4

 1
52159-2018003

ST16#

SILVER-M,BLUISH SILVER M,160

 1
52159-2018013

ST16#

SILVER-M,ALMONDE SILVER M,154

 1
52159-2018018

ST16#

SUPER WHITE,SUPER WHITE 2,040

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-20080

ST16#

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-20050

ST16#

 2
52565A - RETAINER, REAR BUMPER, LOWER
52565-20050

ST16#

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-20050

ST16#

 1
52751 - MOULDING, REAR BUMPER
52751-20090

ST16#

 1
Common parts
90119-06178
90119-12039
90159-50082
90179-06007
90189-05061
90189-06068
90468-04030
