ST162-ATMVF (1985)

Toyota Carina Ed

Production Aug 1985 - Aug 1987
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

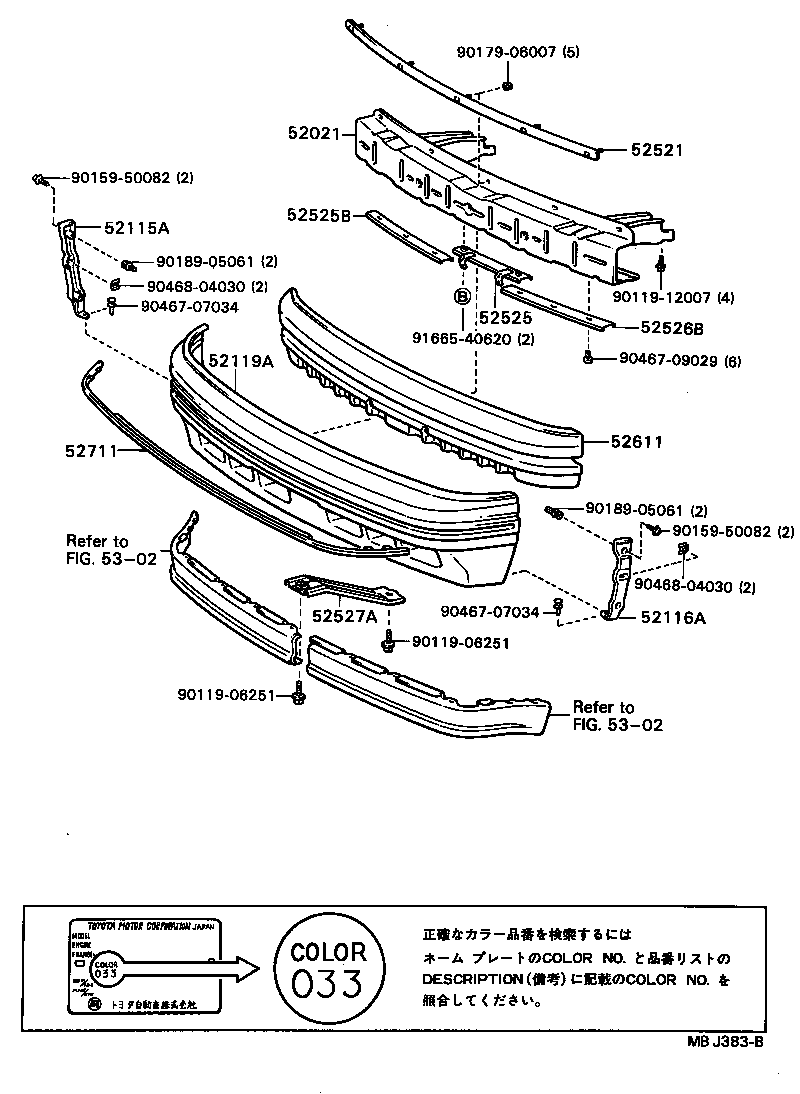

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52521 52525 52525B 52526B 52527A 52611 52711 5302 5302 9011906251 9011906251 9011912007 9015950082 9015950082 9017906007 9018905061 9018905061 9046707034 9046707034 9046709029 9046804030 9046804030 9166540620
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20090

ST16#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-20150

ST16#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-20150

ST16#

 1
52119A - COVER, FRONT BUMPER
52119-2017013

ST16#

SILVER-M,ALMONDE SILVER M,154

 1
52119-2017002

ST16#

RED-M,RED METALLIC,3G7

 1
52119-2017005

ST16#..F,G,S,X

BEIGE-M,CAMEL BEIGE METALLIC,2R4

 1
52119-2017008

ST16#

WHITE,WHITE,041

 1
52119-2017018

ST16#

SUPER WHITE,SUPER WHITE 2,040

 1
52119-2017003

ST16#

SILVER-M,BLUISH SILVER M,160

 1
52119-2017006

ST16#

BROWN-M,BROWN,4G3

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-20060

ST16#

 1
52521-20061

ST16#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52506-20050

ST16#

 1
52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH
52526-20030

ST16#

 1
52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH
52526-20030

ST16#

 1
52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2
52527-20020

ST16#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-20050

ST16#

 1
52711 - MOULDING, FRONT BUMPER
52711-20080

ST16#

 1
Common parts
90119-06251
90119-12007
90159-50082
90179-06007
90189-05061
90467-07034
90467-09029
90468-04030
91665-40620
Linked diagrams
5302
