ST162-ATMVF (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

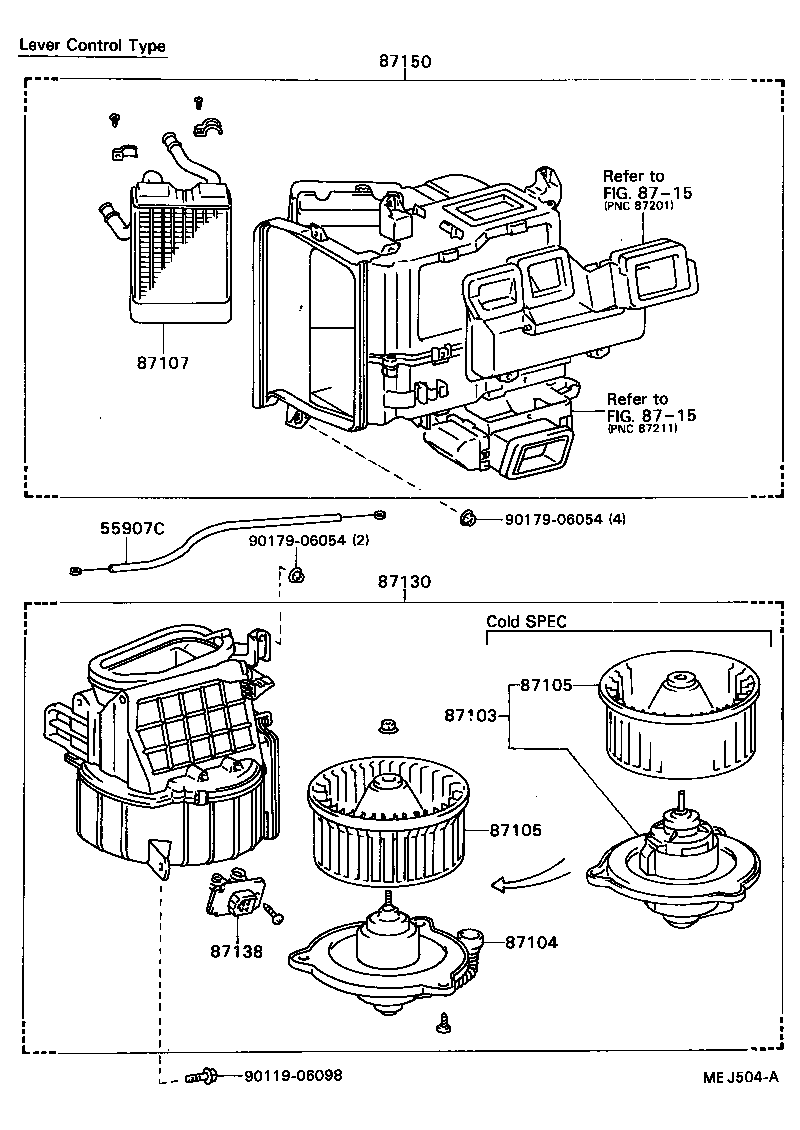

ILLUST NO. 1 OF 2(8708- )F,L

Click highlighted areas on diagram

diagram 55907C 87103 87104 87105 87105 87107 87130 87138 8715 8715 87150 9011906098 9017906054 9017906054
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20060

ST16#..G,S,X

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-32010

ST16#

 1
87103-32010

ST16#..F,G,S,X

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20170

ST16#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105-14030

ST16#

 1
87105-32010

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105-14030

ST16#

 1
87105-32010

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20390

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20391

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20391

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20430

ST16#..G,S,X

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20330

ST16#..G,S,X

 1
87130-20280

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138 - RESISTOR, HEATER BLOWER
87138-20080

ST16#..G,S,X

 1
88635-32020

ST16#

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88635-32020

ST16#..F,G,S,X

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-32030

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-20540

ST16#..G,S,X

 1
87150-20550

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90119-06098
90179-06054
Linked diagrams
8715

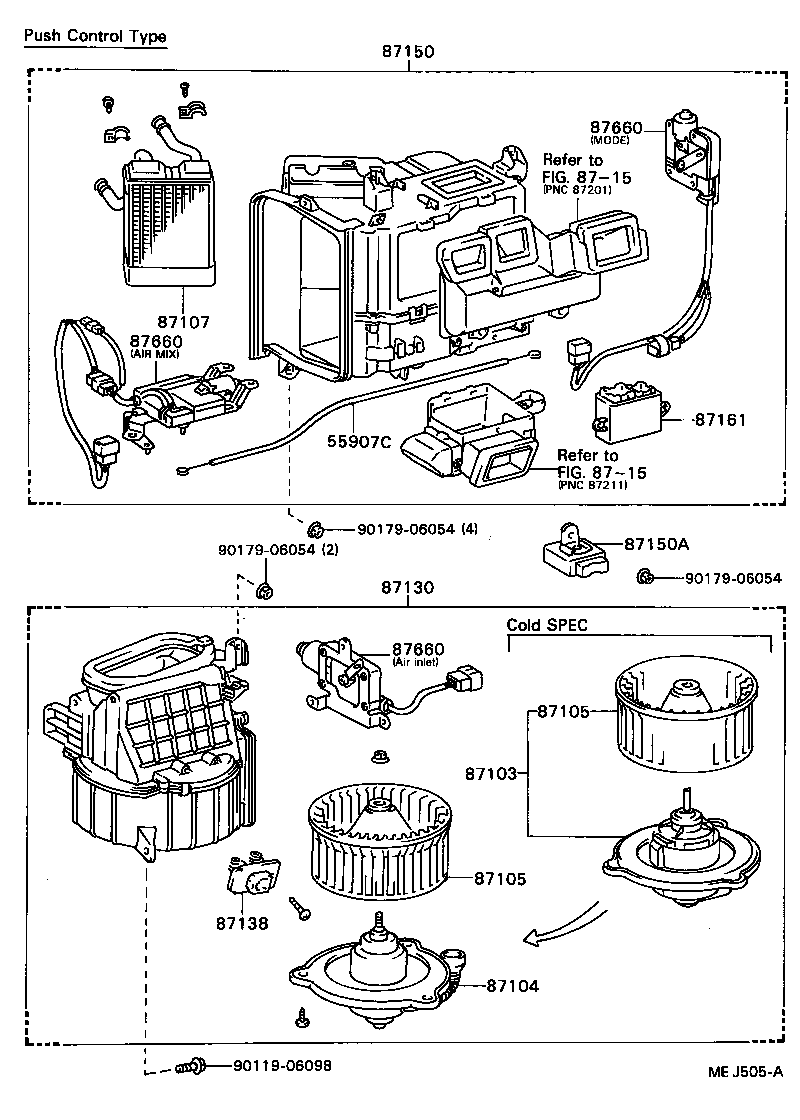

ILLUST NO. 1 OF 2(8708- )G,S,X ; (8903- )L

Click highlighted areas on diagram

diagram 55907C 87103 87104 87105 87105 87107 87130 87138 8715 8715 87150 87150A 87161 87660 87660 87660 9011906098 9017906054 9017906054 9017906054
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20060

ST16#..G,S,X

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-32010

ST16#

 1
87103-32010

ST16#..F,G,S,X

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-20170

ST16#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105-14030

ST16#

 1
87105-32010

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-32010

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87105-14030

ST16#

 1
87105-32010

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20390

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20391

ST16#..F,G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20391

ST16#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20430

ST16#..G,S,X

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20330

ST16#..G,S,X

 1
87130-20280

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138 - RESISTOR, HEATER BLOWER
87138-20080

ST16#..G,S,X

 1
88635-32020

ST16#

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88635-32020

ST16#..F,G,S,X

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-32030

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-20540

ST16#..G,S,X

 1
87150-20550

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87150A - RELAY, HEATER RADIATOR
88630-20010

ST16#..G,S,X

 1
87161 - AMPLIFIER, HEATER SERVO MOTOR
87161-20010

ST16#..G,S,X

 1
87660 - SERVO ASSY, AIR CONDITIONER
87106-20020

ST16#..G,S,X

AIR MIX CONTROL

 1
87106-20060

ST16#..G,S,X

AIR INLET

 1
87106-32010

ST16#..G,S,X

MODE CONTROL

 1
87660 - SERVO ASSY, AIR CONDITIONER
87106-20020

ST16#..G,S,X

AIR MIX CONTROL

 1
87106-20060

ST16#..G,S,X

AIR INLET

 1
87106-32010

ST16#..G,S,X

MODE CONTROL

 1
87660 - SERVO ASSY, AIR CONDITIONER
87106-20020

ST16#..G,S,X

AIR MIX CONTROL

 1
87106-20060

ST16#..G,S,X

AIR INLET

 1
87106-32010

ST16#..G,S,X

MODE CONTROL

 1
Common parts
90119-06098
90179-06054
Linked diagrams
8715

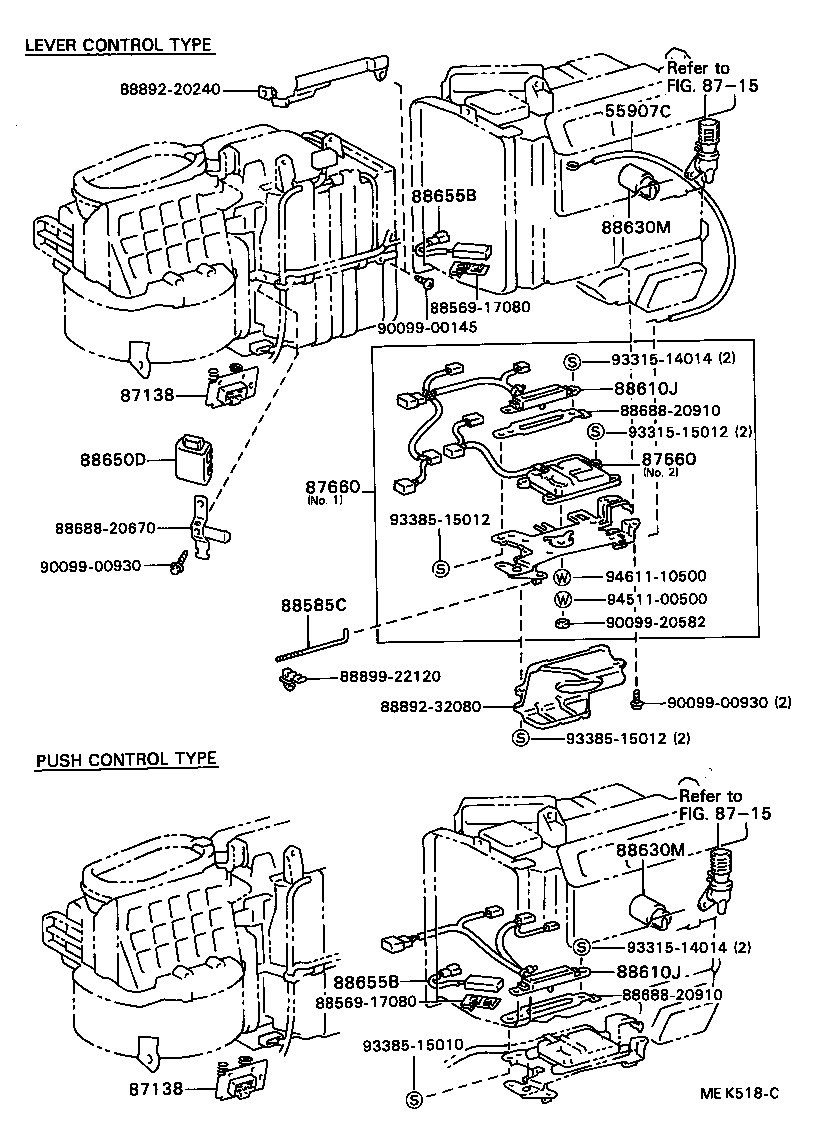

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 55907C 87138 87138 8715 8715 87660 87660 8856917080 8856917080 88585C 88610J 88610J 88630M 88630M 88650D 88655B 88655B 8868820670 8868820910 8868820910 8889220240 8889232080 8889922120 9009900145 9009900930 9009900930 9009920582 9331514014 9331514014 9331515012 9338515010 9338515012 9338515012 9451100500 9461110500
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-20060

ST16#..G,S,X

 1
87138 - RESISTOR, HEATER BLOWER
87138-20080

ST16#..G,S,X

 1
88635-32020

ST16#

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88635-32020

ST16#..F,G,S,X

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-32030

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87138 - RESISTOR, HEATER BLOWER
87138-20080

ST16#..G,S,X

 1
88635-32020

ST16#

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
88635-32020

ST16#..F,G,S,X

ｱﾘ(ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

 1
87138-32030

ST16#..G,S,X

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87660 - SERVO ASSY, AIR CONDITIONER
87106-20020

ST16#..G,S,X

AIR MIX CONTROL

 1
87106-20060

ST16#..G,S,X

AIR INLET

 1
87106-32010

ST16#..G,S,X

MODE CONTROL

 1
87660 - SERVO ASSY, AIR CONDITIONER
87106-20020

ST16#..G,S,X

AIR MIX CONTROL

 1
87106-20060

ST16#..G,S,X

AIR INLET

 1
87106-32010

ST16#..G,S,X

MODE CONTROL

 1
88610J - SWITCH ASSY, CONTROL
88610-32061

ST16#..G,S,X

 1
88610-32060

ST16#..G,S,X

 1
88610J - SWITCH ASSY, CONTROL
88610-32061

ST16#..G,S,X

 1
88610-32060

ST16#..G,S,X

 1
88630M - RELAY ASSY, COOLER
88630-95702

ST16#

 1
88630-95702

ST162

 1
88630M - RELAY ASSY, COOLER
88630-95702

ST16#

 1
88630-95702

ST162

 1
88655B - SWITCH, WATER TEMPERATURE
88655-22020

ST16#..F,G,S,X

 1
88655-22020

ST16#

 1
88655B - SWITCH, WATER TEMPERATURE
88655-22020

ST16#..F,G,S,X

 1
88655-22020

ST16#

 1
Common parts
88569-17080
88688-20670
88688-20910
88892-20240
88892-32080
88899-22120
90099-00145
90099-00930
90099-20582
93315-14014
93315-15012
93385-15010
93385-15012
94511-00500
94611-10500
Linked diagrams
8715
