ST162-ATMVF (1987)

Toyota Carina Ed

Production Aug 1987 - Aug 1989
Engine 3SGELU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

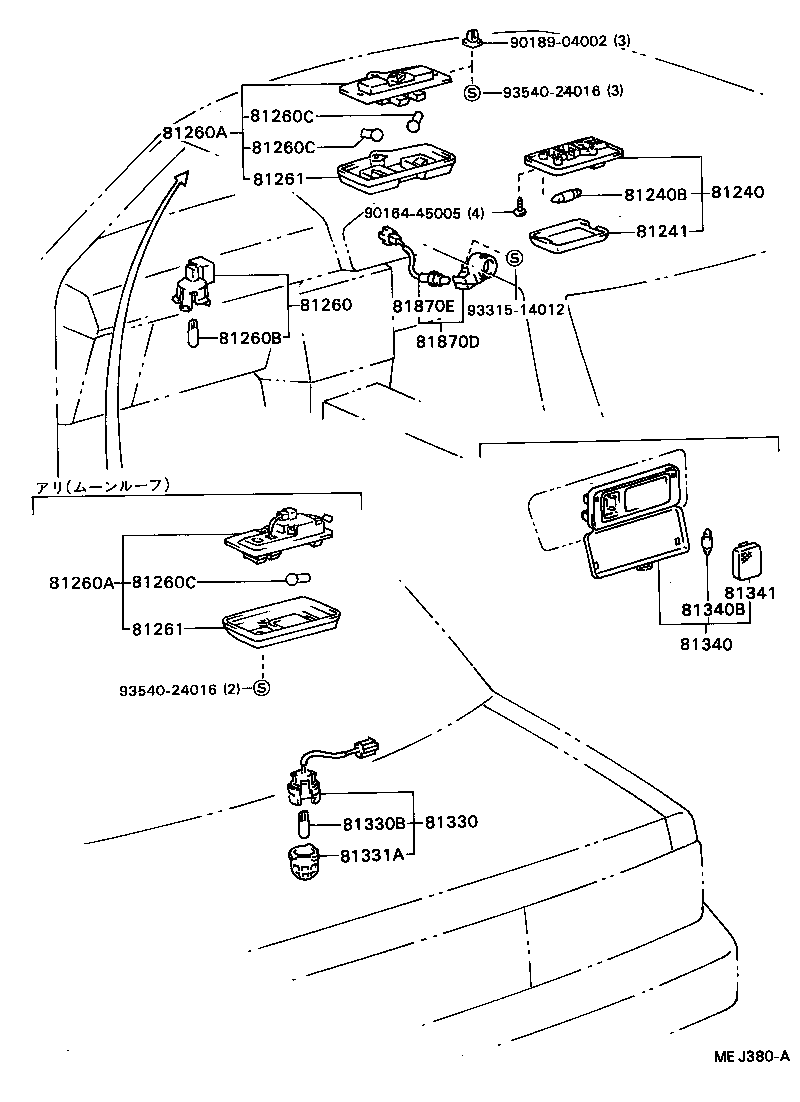

Click highlighted areas on diagram

diagram 81240 81240B 81241 81260 81260A 81260A 81260B 81260C 81260C 81260C 81261 81261 81330 81330B 81331A 81340 81340B 81341 81870D 81870E 9016445005 9018904002 9331514012 9354024016 9354024016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2402004

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81240-2207013

ST16#..G,L,S

SHADOW GRAY,TRIM2#

 1
81240-2402016

ST162..G

G LIMITED & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81240-2209016

ST16#..F,X

SABLE,TRIM4#

 1
81240-2402004

ST162..G

G LIMITED & ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81240-2402016

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81240-2402013

ST16#..F,S,X

LIGHT GRAY,TRIM2#

 1
81240-2402004

ST16#..F,G,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81240-2207016

ST16#..G,L,S

SABLE,TRIM4#

 1
81240-2209013

ST162..G

G LIMITED,MEDIUM GRAY,TRIM2#

 1
81240-2209013

ST16#..F,X

MEDIUM GRAY,TRIM2#

 1
81240-2402013

ST162..G

LIGHT GRAY,TRIM2#

 1
81240-2402016

ST16#..F,G,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81240-2209016

ST162..G

G LIMITED,SABLE,TRIM4#

 1
81240-2207024

ST16#..G,L,S

DEEP BLUE,TRIM8#

 1
81240-2402013

ST16#..F,G,S,X

LIGHT GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

ST16#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-24010

ST162..G

G LIMITED OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81241-24010

ST162..G

G LIMITED OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81241-20060

ST16#..G,L,S

 1
81241-24010

ST162..G

G LIMITED

 1
81241-24010

ST162..S

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81241-24010

ST16#..F,X

 1
81241-24020

ST16#..F,G,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
81260 - LAMP ASSY, GLOVE BOX
81260-22070

ST16#

 1
81260A - LAMP ASSY, MAP
81260-1405004

ST162..G

LIGHT BLUE,TRIM8#

 1
81260-2009003

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81260-1405023

ST162..G

SHADOW GRAY,TRIM2#

 1
81260-2009003

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81260-2009016

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2009004

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,DEEP BLUE,TRIM8#

 1
81260-1405016

ST162..G

SABLE,TRIM4#

 1
81260-2009004

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81260-2009016

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260A - LAMP ASSY, MAP
81260-1405004

ST162..G

LIGHT BLUE,TRIM8#

 1
81260-2009003

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81260-1405023

ST162..G

SHADOW GRAY,TRIM2#

 1
81260-2009003

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81260-2009016

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260-2009004

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,DEEP BLUE,TRIM8#

 1
81260-1405016

ST162..G

SABLE,TRIM4#

 1
81260-2009004

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81260-2009016

ST16#..F,S,X

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

ST16#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

ST162..G

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12014

ST16#..F,S,X

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12005

ST162..G

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

ST162..G

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12014

ST16#..F,S,X

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12005

ST162..G

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-12014

ST162..G

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12014

ST16#..F,S,X

12V 10W,12V 10W,ｱﾘ(ﾑｰﾝ ﾙｰﾌ)

 1
90981-12005

ST162..G

12V 8W

 2
81261 - LENS AND COVER, MAP LAMP
81261-2009003

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81261-2009003

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),SHADOW GRAY,SHADOW GRAY,TRIM2#

 1
81261-2009016

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),SABLE,SABLE,TRIM4#

 1
81261-2009004

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81261-2009016

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2009004

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),DEEP BLUE,DEEP BLUE,TRIM8#

 1
81268-22040J0

ST162..G

LIGHT BLUE,BLUE,TRIM8#

 1
81268-2204016

ST162..G

SABLE,SABLE,TRIM4#

 1
81268-22040C0

ST162..G

SHADOW GRAY,BLACK,TRIM2#

 1
81261 - LENS AND COVER, MAP LAMP
81261-2009003

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SHADOW GRAY,TRIM2#

 1
81261-2009003

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),SHADOW GRAY,SHADOW GRAY,TRIM2#

 1
81261-2009016

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),SABLE,SABLE,TRIM4#

 1
81261-2009004

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),DEEP BLUE,TRIM8#

 1
81261-2009016

ST162..G

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ),SABLE,TRIM4#

 1
81261-2009004

ST16#..F,S,X

ｱﾘ(ﾑｰﾝ ﾙｰﾌ),DEEP BLUE,DEEP BLUE,TRIM8#

 1
81268-22040J0

ST162..G

LIGHT BLUE,BLUE,TRIM8#

 1
81268-2204016

ST162..G

SABLE,SABLE,TRIM4#

 1
81268-22040C0

ST162..G

SHADOW GRAY,BLACK,TRIM2#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-22031

ST162..G

 1
81330-22031

ST16#..F,X

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90981-11020

ST16#..F,X

12V 3.8W

 1
90981-11020

ST162..G

12V 3.8W

 1
81331A - COVER, LUGGAGE COMPARTMENT LAMP
81331-22030

ST162..G

 1
81331-22030

ST16#..F,X

 1
81340 - LAMP ASSY, VANITY
81340-2001003

ST162..G

GRAY,TRIM2#

 1
81340-2001006

ST162..G

SABLE,TRIM4#

 1
81340-2001004

ST162..G

DEEP BLUE,TRIM8#

 1
81340-2001004

ST162..G

DEEP BLUE,TRIM8#

 1
81340-2001003

ST162..G

GRAY,TRIM2#

 1
81340-2001006

ST162..G

SABLE,TRIM4#

 1
81340B - BULB (FOR VANITY LAMP)
90981-14002

ST162..G

12V 5W,12V 5W

 1
90981-14002

ST162..G

12V 5W,12V 5W

 1
81341 - LENS, VANITY LAMP
81341-14020

ST162..G

 1
81341-14020

ST162..G

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-20011

ST162..G

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11018

ST162..G

12V 1.2W ｿｹｯﾄ無し

 1
Common parts
90164-45005
90189-04002
93315-14012
93540-24016
