ST162-ATMVF (1987)
Toyota Carina Ed

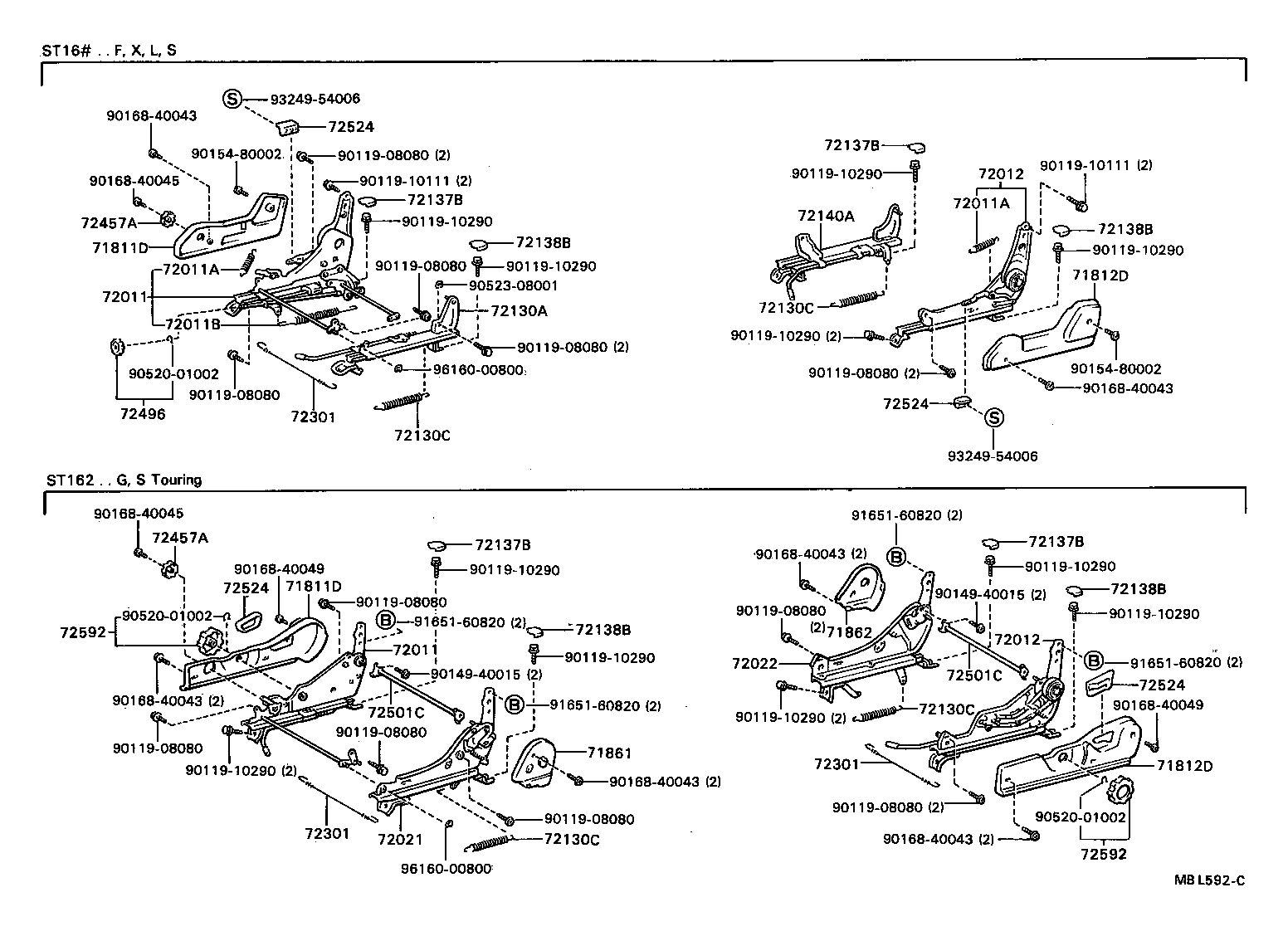

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1701004 |
ST16#..F,L,S,X DEEP BLUE,TRIM8# |
1 | ||
| 71811-2013001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1701011 |
ST16#..F,L,S,X BLACK,TRIM2# |
1 | ||
| 71811-2013004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701016 |
ST16#..F,L,S,X SABLE,TRIM4# |
1 | ||
| 71811-2013006 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71811-2013001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1701004 |
ST16#..F,L,S,X DEEP BLUE,TRIM8# |
1 | ||
| 71811-2013001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 71811-1701011 |
ST16#..F,L,S,X BLACK,TRIM2# |
1 | ||
| 71811-2013004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71811-1701016 |
ST16#..F,L,S,X SABLE,TRIM4# |
1 | ||
| 71811-2013006 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71811-2013001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2010006 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71812-1407011 |
ST16#..F,L,S,X BLACK,TRIM2# |
1 | ||
| 71812-1407056 |
ST16#..F,L,S,X SABLE,TRIM4# |
1 | ||
| 71812-2010001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2010001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71812-1407034 |
ST16#..F,L,S,X DEEP BLUE,TRIM8# |
1 | ||
| 71812-2010004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407044 |
ST16#..F,L,S,X DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2010006 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71812-1407011 |
ST16#..F,L,S,X BLACK,TRIM2# |
1 | ||
| 71812-1407056 |
ST16#..F,L,S,X SABLE,TRIM4# |
1 | ||
| 71812-2010001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 71812-2010001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71812-1407034 |
ST16#..F,L,S,X DEEP BLUE,TRIM8# |
1 | ||
| 71812-2010004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71812-1407044 |
ST16#..F,L,S,X DARK BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2003001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71861-2003016 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71861-2003001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 71861-2003004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2003004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71862-2003001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71862-2003016 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71862-2003001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72011-20011 |
ST162..G |
1 | ||
| 72010-20180 |
ST16#..F,L,S,X |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72011-20011 |
ST162..G |
1 | ||
| 72010-20180 |
ST16#..F,L,S,X |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST16#..F,L,S,X |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-18015 |
ST16#..F,L,S,X |
1 | ||
| 72011B - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-35001 |
ST16#..F,L,S,X |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72012-20011 |
ST162..G |
1 | ||
| 72020-20150 |
ST16#..F,L,S,X |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72012-20011 |
ST162..G |
1 | ||
| 72020-20150 |
ST16#..F,L,S,X |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72021-20011 |
ST162..G |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-20011 |
ST162..G |
1 | ||
| 72022-20011 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-20250 |
ST16#..F,L,S,X |
1 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72130C - SPRING, TENSION (FOR FRONT SEAT INNER TRACK) | ||||
| 90507-18014 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST16# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-20030 |
ST16# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST16# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST16# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST16# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-20020 |
ST16# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20120 |
ST16#..F,L,S,X |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST16# |
1 | ||
| 72301-20190 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST16# |
1 | ||
| 72301-20190 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-20190 |
ST16# |
1 | ||
| 72301-20190 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701036 |
ST16# SABLE,TRIM4# |
1 | ||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST16# DEEP BLUE,TRIM8# |
1 | ||
| 72457A - KNOB, SEAT ADJUSTER | ||||
| 72457-1701036 |
ST16# SABLE,TRIM4# |
1 | ||
| 72457-1701011 |
ST16# BLACK,TRIM2# |
1 | ||
| 72457-1701004 |
ST16# DEEP BLUE,TRIM8# |
1 | ||
| 72496 - KNOB, VERTICAL SEAT ADJUSTER, NO.2 | ||||
| 72496-3201001 |
ST16#..F,L,S,X BLACK,TRIM2# |
1 | ||
| 72496-3201016 |
ST16#..F,L,S,X SABLE,TRIM4# |
1 | ||
| 72496-3201014 |
ST16#..F,L,S,X DEEP BLUE,TRIM8# |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72501-20010 |
ST162..G |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-20010 |
ST162..S S ﾂ-ﾘﾝｸﾞ |
1 | ||
| 72501-20010 |
ST162..G |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203011 |
ST16#..F,L,S,X BLACK,TRIM2#,左側 |
1 | ||
| 72525-1209024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-2006026 |
ST162..G SABLE,TRIM4#,右側 |
1 | ||
| 72525-1209011 |
ST16#..F,L,S,X BLACK,TRIM2#,右側 |
1 | ||
| 72525-1209016 |
ST16#..F,L,S,X RH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-1203016 |
ST16#..F,L,S,X LH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-2005001 |
ST162..G BLACK,TRIM2#,左側 |
1 | ||
| 72525-2006001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2005026 |
ST162..G SABLE,TRIM4#,左側 |
1 | ||
| 72526-1203024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005004 |
ST162..G DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2006001 |
ST162..G BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..G DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203011 |
ST16#..F,L,S,X BLACK,TRIM2#,左側 |
1 | ||
| 72525-1209024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-2006026 |
ST162..G SABLE,TRIM4#,右側 |
1 | ||
| 72525-1209011 |
ST16#..F,L,S,X BLACK,TRIM2#,右側 |
1 | ||
| 72525-1209016 |
ST16#..F,L,S,X RH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-1203016 |
ST16#..F,L,S,X LH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-2005001 |
ST162..G BLACK,TRIM2#,左側 |
1 | ||
| 72525-2006001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2005026 |
ST162..G SABLE,TRIM4#,左側 |
1 | ||
| 72526-1203024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005004 |
ST162..G DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2006001 |
ST162..G BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..G DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203011 |
ST16#..F,L,S,X BLACK,TRIM2#,左側 |
1 | ||
| 72525-1209024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-2006026 |
ST162..G SABLE,TRIM4#,右側 |
1 | ||
| 72525-1209011 |
ST16#..F,L,S,X BLACK,TRIM2#,右側 |
1 | ||
| 72525-1209016 |
ST16#..F,L,S,X RH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-1203016 |
ST16#..F,L,S,X LH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-2005001 |
ST162..G BLACK,TRIM2#,左側 |
1 | ||
| 72525-2006001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2005026 |
ST162..G SABLE,TRIM4#,左側 |
1 | ||
| 72526-1203024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005004 |
ST162..G DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2006001 |
ST162..G BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..G DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-1203011 |
ST16#..F,L,S,X BLACK,TRIM2#,左側 |
1 | ||
| 72525-1209024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72525-2006026 |
ST162..G SABLE,TRIM4#,右側 |
1 | ||
| 72525-1209011 |
ST16#..F,L,S,X BLACK,TRIM2#,右側 |
1 | ||
| 72525-1209016 |
ST16#..F,L,S,X RH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-1203016 |
ST16#..F,L,S,X LH,SABLE,SABLE,TRIM4# |
1 | ||
| 72526-2005001 |
ST162..G BLACK,TRIM2#,左側 |
1 | ||
| 72525-2006001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-2005026 |
ST162..G SABLE,TRIM4#,左側 |
1 | ||
| 72526-1203024 |
ST16#..F,L,S,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005004 |
ST162..G DEEP BLUE,TRIM8#,左側 |
1 | ||
| 72526-2005001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2006001 |
ST162..G BLACK,TRIM2#,右側 |
1 | ||
| 72525-2006004 |
ST162..G DEEP BLUE,TRIM8#,右側 |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001016 |
ST162..G SABLE,TRIM4# |
1 | ||
| 72592-2001001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 72592-2001004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 72592-2001001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| 72592 - KNOB, RECLINING ADJUSTER | ||||
| 72592-2001016 |
ST162..G SABLE,TRIM4# |
1 | ||
| 72592-2001001 |
ST162..G BLACK,TRIM2# |
1 | ||
| 72592-2001004 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 72592-2001001 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10290 | ||||
| 90149-40015 | ||||
| 90154-80002 | ||||
| 90168-40043 | ||||
| 90168-40045 | ||||
| 90168-40049 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 91651-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(8708- )G
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B46206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71071-2B51206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71071-2B49103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71071-2B51203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71071-2B81104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B81103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71071-2B51204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B46204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B49106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71071-2B46203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71071-2B81106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71071-2B49104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B49103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B17103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71072-2B17106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71072-2B17104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B24106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71072-2B19104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B19103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71072-2B19106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71072-2B24103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71072-2B24104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B24103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B46203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71073-2B36204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B42103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71073-2B42106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71073-2B46204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B36206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71073-2B46206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71073-2B42103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71073-2B42104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B36203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B11103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71074-2B11106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71074-2B11104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B23103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71074-2B22103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71074-2B23103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71074-2B22106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71074-2B23104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B23106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71074-2B22104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162..G |
2 | ||
| 71158S - FRAME, FRONT SEAT BACK, UPPER RH | ||||
| 71158-20130 |
ST162..G |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162..G |
2 | ||
| 71159S - FRAME, FRONT SEAT BACK, UPPER LH | ||||
| 71159-20080 |
ST162..G |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B50103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71410-2B20206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71410-2B61203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71410-2B58104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B58106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71410-2B20203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71410-2B20204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B61204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B58103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71410-2B61206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71410-2B50104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B50106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2086103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71420-2B10103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71420-2086106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71420-2B10106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71420-2088106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71420-2088103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71420-2088104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71420-2086104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B10104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B47103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71430-2B19203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71430-2B47104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B19206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71430-2B49103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71430-2B49104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B57206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71430-2B47106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71430-2B49106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71430-2B57204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B57203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71430-2B19204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B27103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71440-2B32106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71440-2B27104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B32103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71440-2B29103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71440-2B29104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B29106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71440-2B27106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71440-2B32104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST16#..F,L,S,X |
1 | ||
| 71511-20410 |
ST162..G |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20410 |
ST162..G |
1 | ||
| 71511-20400 |
ST16#..F,L,S,X |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162..G |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-20370 |
ST162..G |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20350 |
ST162..G |
1 | ||
| 71610-20380 |
ST16#..F,L,S,X |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20300 |
ST162..G |
1 | ||
| 71610-20270 |
ST16#..F,L,S,X |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-20430 |
ST162..G G LIMITED |
1 | ||
| 71630-20420 |
ST162..G |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-20420 |
ST162..G |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2007104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007101 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)# |
1 | ||
| 71705-2007101 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71705-2007106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004304 |
ST162..G DEEP BLUE,TRIM8# |
8 | ||
| 90149-5004301 |
ST162..G BLACK,TRIM2# |
8 | ||
| 90149-5004326 |
ST162..G SABLE,SABLE,TRIM4# |
8 | ||
| 71705C - SCREW(FOR FRONT SEAT BACK BOARD) | ||||
| 90149-5004304 |
ST162..G DEEP BLUE,TRIM8# |
8 | ||
| 90149-5004301 |
ST162..G BLACK,TRIM2# |
8 | ||
| 90149-5004326 |
ST162..G SABLE,SABLE,TRIM4# |
8 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-2007104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71705-2007101 |
ST162..G BLACK,TRIM2# |
1 | ||
| 71705-2007106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71705-2007101 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)# |
1 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001011 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71813-2001005 |
ST162..G DARK BEIGE,TRIM4# |
2 | ||
| 71813-2001004 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71813A - SHIELD, FRONT SEAT BACK, RH | ||||
| 71813-2001011 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71813-2001005 |
ST162..G DARK BEIGE,TRIM4# |
2 | ||
| 71813-2001004 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001011 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71814-2001005 |
ST162..G DARK BEIGE,TRIM4# |
2 | ||
| 71814A - SHIELD, FRONT SEAT BACK, LH | ||||
| 71814-2001004 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71814-2001011 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71814-2001005 |
ST162..G DARK BEIGE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2054101 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71910-2054104 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71910-2054106 |
ST162..G SABLE,TRIM4# |
2 | ||
| 71910-2089003 |
ST16#..F,X GRAY,TRIM2#,右側 |
1 | ||
| 71920-2016006 |
ST16#..F,X SABLE,TRIM4#,左側 |
1 | ||
| 71910-2B01001 |
ST162..S BLACK,TRIM2# |
2 | ||
| 71920-2016003 |
ST16#..F,X GRAY,TRIM2#,左側 |
1 | ||
| 71910-2089004 |
ST16#..F,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 71920-2016004 |
ST16#..F,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 71910-2089006 |
ST16#..F,X DARK BEIGE,TRIM4#,右側 |
1 | ||
| 71910-2B01006 |
ST162..S SABLE,TRIM4# |
2 | ||
| 71910-2054101 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)# |
2 | ||
| 71910-2B01004 |
ST162..S DEEP BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2054101 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71910-2054104 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71910-2054106 |
ST162..G SABLE,TRIM4# |
2 | ||
| 71910-2089003 |
ST16#..F,X GRAY,TRIM2#,右側 |
1 | ||
| 71920-2016006 |
ST16#..F,X SABLE,TRIM4#,左側 |
1 | ||
| 71910-2B01001 |
ST162..S BLACK,TRIM2# |
2 | ||
| 71920-2016003 |
ST16#..F,X GRAY,TRIM2#,左側 |
1 | ||
| 71910-2089004 |
ST16#..F,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 71920-2016004 |
ST16#..F,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 71910-2089006 |
ST16#..F,X DARK BEIGE,TRIM4#,右側 |
1 | ||
| 71910-2B01006 |
ST162..S SABLE,TRIM4# |
2 | ||
| 71910-2054101 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)# |
2 | ||
| 71910-2B01004 |
ST162..S DEEP BLUE,TRIM8# |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162..G G LIMITED |
1 | ||
| 71911-14050 |
ST162..G |
2 | ||
| 71911A - STAY, FRONT SEAT HEADREST, RH | ||||
| 71911-14050 |
ST162..G G LIMITED |
1 | ||
| 71911-14050 |
ST162..G |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162..G G LIMITED |
1 | ||
| 71912-14070 |
ST162..G |
2 | ||
| 71912A - STAY, FRONT SEAT HEADREST, LH | ||||
| 71912-14070 |
ST162..G G LIMITED |
1 | ||
| 71912-14070 |
ST162..G |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST16#..F,L,S,X ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162..G ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST16#..F,L,S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
ST16#..F,L,S,X ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1408006 |
ST162..G ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-1001044 |
ST16#..F,L,S,X ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
ST162..G ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401001 |
ST162..G ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
ST162..G ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
ST16#..F,L,S,X ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1401014 |
ST162..G ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST16#..F,L,S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST16#..F,L,S,X ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162..G ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST16#..F,L,S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
ST16#..F,L,S,X ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1408006 |
ST162..G ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-1001044 |
ST16#..F,L,S,X ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
ST162..G ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401001 |
ST162..G ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
ST162..G ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
ST16#..F,L,S,X ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1401014 |
ST162..G ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST16#..F,L,S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20050 |
ST16#..F,X |
1 | ||
| 72750-20070 |
ST162..G |
1 | ||
| Common parts | ||||
| 90149-60055 | ||||
| 90159-60081 | ||||
| 90179-08123 | ||||
| 90468-18071 | ||||
| 91651-60818 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8511 | ||||
ILLUST NO. 1 OF 2(8708- )F,L,S,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2B46206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71071-2B51206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71071-2B49103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71071-2B51203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71071-2B81104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B81103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71071-2B51204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B46204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B49106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71071-2B46203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71071-2B81106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71071-2B49104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71071-2B49103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2B17103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71072-2B17106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71072-2B17104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B24106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71072-2B19104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B19103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71072-2B19106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71072-2B24103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71072-2B24104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71072-2B24103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2B46203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71073-2B36204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B42103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71073-2B42106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71073-2B46204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B36206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71073-2B46206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71073-2B42103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71073-2B42104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71073-2B36203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2B11103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71074-2B11106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71074-2B11104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B23103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71074-2B22103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71074-2B23103 |
ST162..S S ﾂ-ﾘﾝｸﾞ,GRAY,(TRIM2)# |
1 | ||
| 71074-2B22106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71074-2B23104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71074-2B23106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71074-2B22104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2B50103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71410-2B20206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71410-2B61203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71410-2B58104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B58106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71410-2B20203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71410-2B20204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B61204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B58103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71410-2B61206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71410-2B50104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71410-2B50106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2086103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71420-2B10103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71420-2086106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71420-2B10106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71420-2088106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71420-2088103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71420-2088104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71420-2086104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71420-2B10104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71430 - CUSHION ASSY, PASSENGER SEAT | ||||
| 71430-2B85106 |
ST16#..F,L,X SABLE,TRIM4# |
1 | ||
| 71430-2B85104 |
ST16#..F,L,X DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B85101 |
ST16#..F,L,X BLACK&GRAY,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2B47103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71430-2B19203 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71430-2B47104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B19206 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71430-2B49103 |
ST162..G G LIMITED,GRAY,TRIM2# |
1 | ||
| 71430-2B49104 |
ST162..G G LIMITED,DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B57206 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71430-2B47106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71430-2B49106 |
ST162..G G LIMITED,SABLE,TRIM4# |
1 | ||
| 71430-2B57204 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71430-2B57203 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71430-2B19204 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2B27103 |
ST162..S GRAY,TRIM2# |
1 | ||
| 71440-2B32106 |
ST16#..F,X SABLE,TRIM4# |
1 | ||
| 71440-2B27104 |
ST162..S DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B32103 |
ST16#..F,X GRAY,TRIM2# |
1 | ||
| 71440-2B29103 |
ST162..G GRAY,TRIM2# |
1 | ||
| 71440-2B29104 |
ST162..G DEEP BLUE,TRIM8# |
1 | ||
| 71440-2B29106 |
ST162..G SABLE,TRIM4# |
1 | ||
| 71440-2B27106 |
ST162..S SABLE,TRIM4# |
1 | ||
| 71440-2B32104 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20021 |
ST16#..F,X |
1 | ||
| 71505-20011 |
ST16#..L,S |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20010 |
ST16#..F,L,S,X |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20400 |
ST16#..F,L,S,X |
1 | ||
| 71511-20410 |
ST162..G |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-20410 |
ST162..G |
1 | ||
| 71511-20400 |
ST16#..F,L,S,X |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST16#..F,L,S,X |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20110 |
ST16#..F,L,S,X |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20350 |
ST162..G |
1 | ||
| 71610-20380 |
ST16#..F,L,S,X |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-20300 |
ST162..G |
1 | ||
| 71610-20270 |
ST16#..F,L,S,X |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
ST16#..F,L,S,X |
1 | ||
| 71831A - COVER, FRONT SEAT HINGE | ||||
| 71831-10010 |
ST16#..F,L,S,X |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2054101 |
ST162..G BLACK,TRIM2# |
2 | ||
| 71910-2054104 |
ST162..G DEEP BLUE,TRIM8# |
2 | ||
| 71910-2054106 |
ST162..G SABLE,TRIM4# |
2 | ||
| 71910-2089003 |
ST16#..F,X GRAY,TRIM2#,右側 |
1 | ||
| 71920-2016006 |
ST16#..F,X SABLE,TRIM4#,左側 |
1 | ||
| 71910-2B01001 |
ST162..S BLACK,TRIM2# |
2 | ||
| 71920-2016003 |
ST16#..F,X GRAY,TRIM2#,左側 |
1 | ||
| 71910-2089004 |
ST16#..F,X DEEP BLUE,TRIM8#,右側 |
1 | ||
| 71920-2016004 |
ST16#..F,X DEEP BLUE,TRIM8#,左側 |
1 | ||
| 71910-2089006 |
ST16#..F,X DARK BEIGE,TRIM4#,右側 |
1 | ||
| 71910-2B01006 |
ST162..S SABLE,TRIM4# |
2 | ||
| 71910-2054101 |
ST162..S S ﾂ-ﾘﾝｸﾞ,BLACK,(TRIM2)# |
2 | ||
| 71910-2B01004 |
ST162..S DEEP BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST16#..F,L,S,X ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162..G ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST16#..F,L,S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
ST16#..F,L,S,X ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1408006 |
ST162..G ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-1001044 |
ST16#..F,L,S,X ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
ST162..G ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401001 |
ST162..G ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
ST162..G ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
ST16#..F,L,S,X ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1401014 |
ST162..G ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST16#..F,L,S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
ST16#..F,L,S,X ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408001 |
ST162..G ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
ST16#..F,L,S,X ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
ST16#..F,L,S,X ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-1408006 |
ST162..G ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-1001044 |
ST16#..F,L,S,X ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71930-1408014 |
ST162..G ﾛｯｸ付,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1401001 |
ST162..G ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-1401006 |
ST162..G ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
ST16#..F,L,S,X ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931-1401014 |
ST162..G ﾛｯｸ無,DEEP BLUE,TRIM8# |
2 | ||
| 71931-1001001 |
ST16#..F,L,S,X ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-20050 |
ST16#..F,X |
1 | ||
| 72750-20070 |
ST162..G |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003001 |
ST16#..F,X BLACK,TRIM2# |
1 | ||
| 72791-2003016 |
ST16#..F,X SABLE,SABLE,TRIM4# |
1 | ||
| 72791-2003004 |
ST16#..F,X DEEP BLUE,TRIM8# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01274 |
ST16#..F,X |
1 | ||
| Common parts | ||||
| 90386-12016 | ||||
| 90468-18071 | ||||
| 90523-08001 | ||||
| 91656-40616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
